Dynapac Sub System (DSS)
DSS
code
Description NoteDSS
code
Description Note
1 Speed sensor, front Optional1 Speed sensor, front Optional
2 Speed sensor, rear2 Speed sensor, rear
3 Inclination sensor Optional3 Inclination sensor Optional
4 DCM Optional4 DCM Optional
5 IO-Card5 IO-Card
6 Cooling fan speed sensor6 Cooling fan speed sensor
7 Vibration frequency meter Supervision only active if Adjustable frequency or
ECO available.
Optional7 Vibration frequency meter Supervision only active if Adjustable frequency or
ECO available.
Optional
8 Power group 1 see Fuse 38 Power group 1 see Fuse 3
9 Power group 2 see Fuse 49 Power group 2 see Fuse 4
10 Power group 3 see Fuse 510 Power group 3 see Fuse 5
11 Power group 4 see Fuse 611 Power group 4 see Fuse 6
12 DCO Com Error Optional12 DCO Com Error Optional
13 Hydraulic temp sensor Sensor data out of range13 Hydraulic temp sensor Sensor data out of range
14 Linear transducer sensor Sensor data out of range Optional14 Linear transducer sensor Sensor data out of range Optional

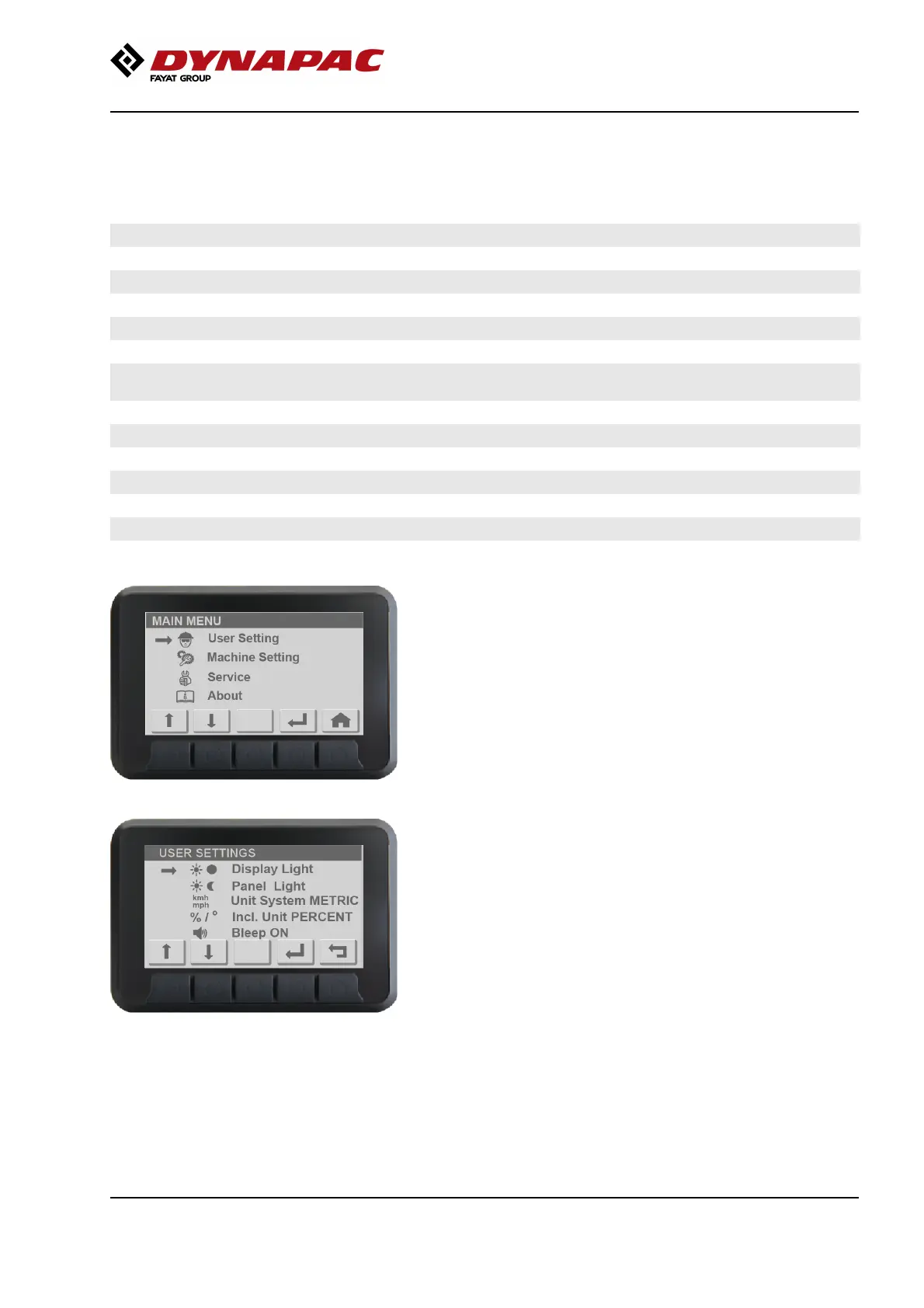

"MAIN MENU"
In the main menu it is also possible to change some
user and machine settings, access the service menu
for calibration purposes (special service personnel
only, requires pin code), and to see the version of
installed software.
"USER SETTINGS"
Users can change the light settings, choose between
the Metric or Imperial system, and set warning sounds
On/Off.
49

Dynapac CA3500DCP Specifications

General

Brand	Dynapac
Model	CA3500DCP
Category	Power Roller
Language	English
