Scrapers, Pad-drum

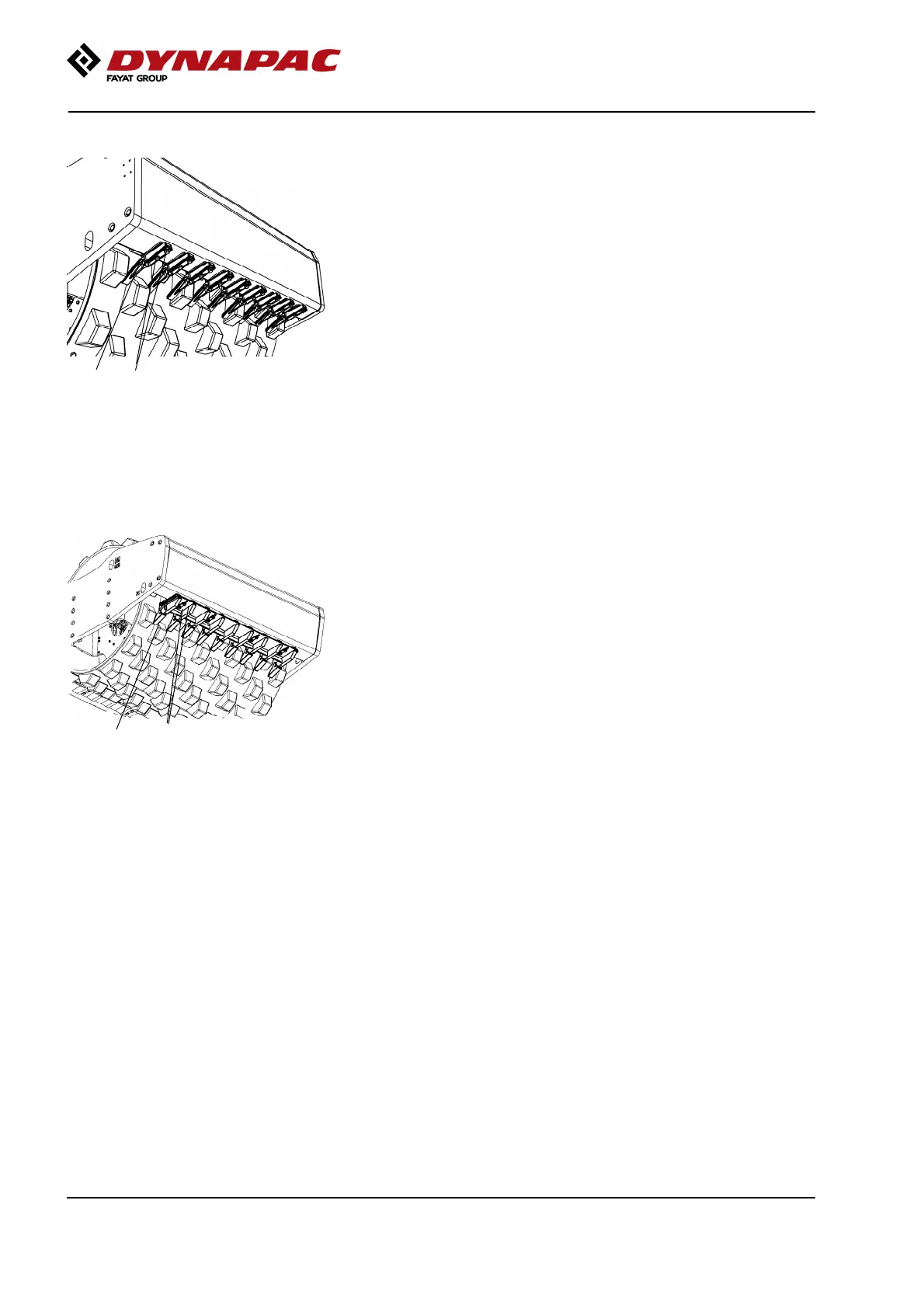

Fig. Scrapers
1. Screws
2. Scraper teeth (x 18)
1
2
Undo the screws (1), then adjust each scraper tooth
(2) to 25 mm (1.0 in) between scraper tooth and drum.
Center each scraper tooth (2) between the pads.
Tighten the screws (1).
Scrapers (Heavy duty), Pad drum
Fig. Scrapers
1. Screws
2. Scraper teeth
1
2
Undo the screws (1), then adjust/center 25 mm (1.0 in)
between the scraper teeth (2) and drum.
Center each scraper tooth (2) between the pads.
Tighten the screws (1).
