Maintenance - 2000h
4812165301.pdf2022-09-02

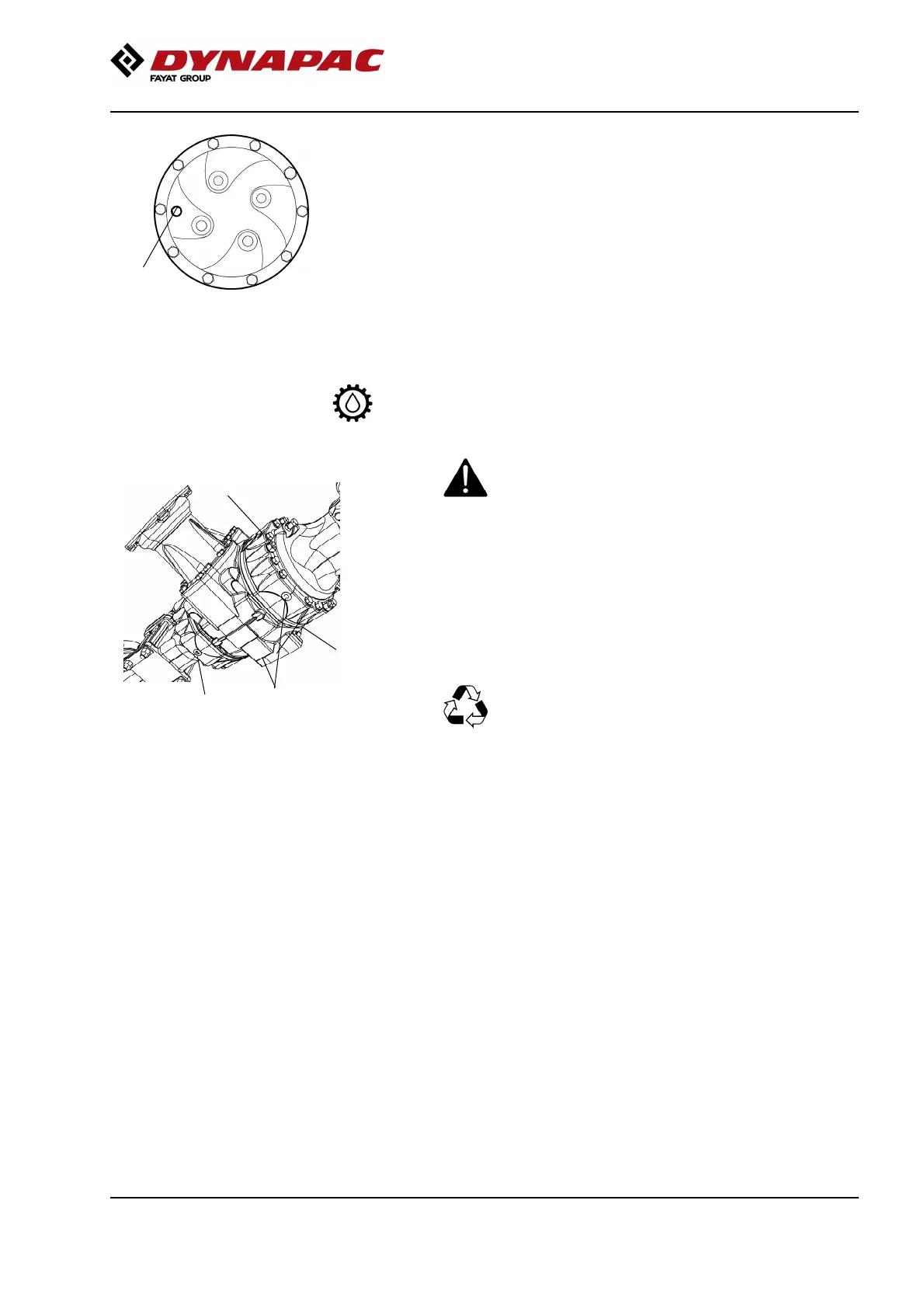

Fig. Planetary gear/filling position
1. Plug
1
Position the roller so that the plug (1) in the planetary
gear is at "9 o'clock" or "3 o'clock".
Fill with oil to lower edge of level hole. Use
transmission oil. See the lubrication specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
Rear axle differential - Oil change
Fig. Rear axle, underside
1. Level/Filler plugs (x 3)
2. Drain plugs (x 3)
3. Filler plugs (x x)
3
1
2
2
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the three level/filler plugs (1)
and (3) and all three drain plugs (2). The level/filler
plugs are located on the front and rear of the axle, and
the drain plugs are located on the underside and rear.
Drain the oil into a container. The volume is approx.
12.5 litres (13.2 qts).
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
Refit the drainage plugs and top up with fresh oil until
the correct level is reached. Refit the level/filler plugs.
Use transmission oil, see Lubricant Specification.
157
