Maintenance - 2000h
4812165301.pdf 2022-09-02
Drum gearbox - Oil change

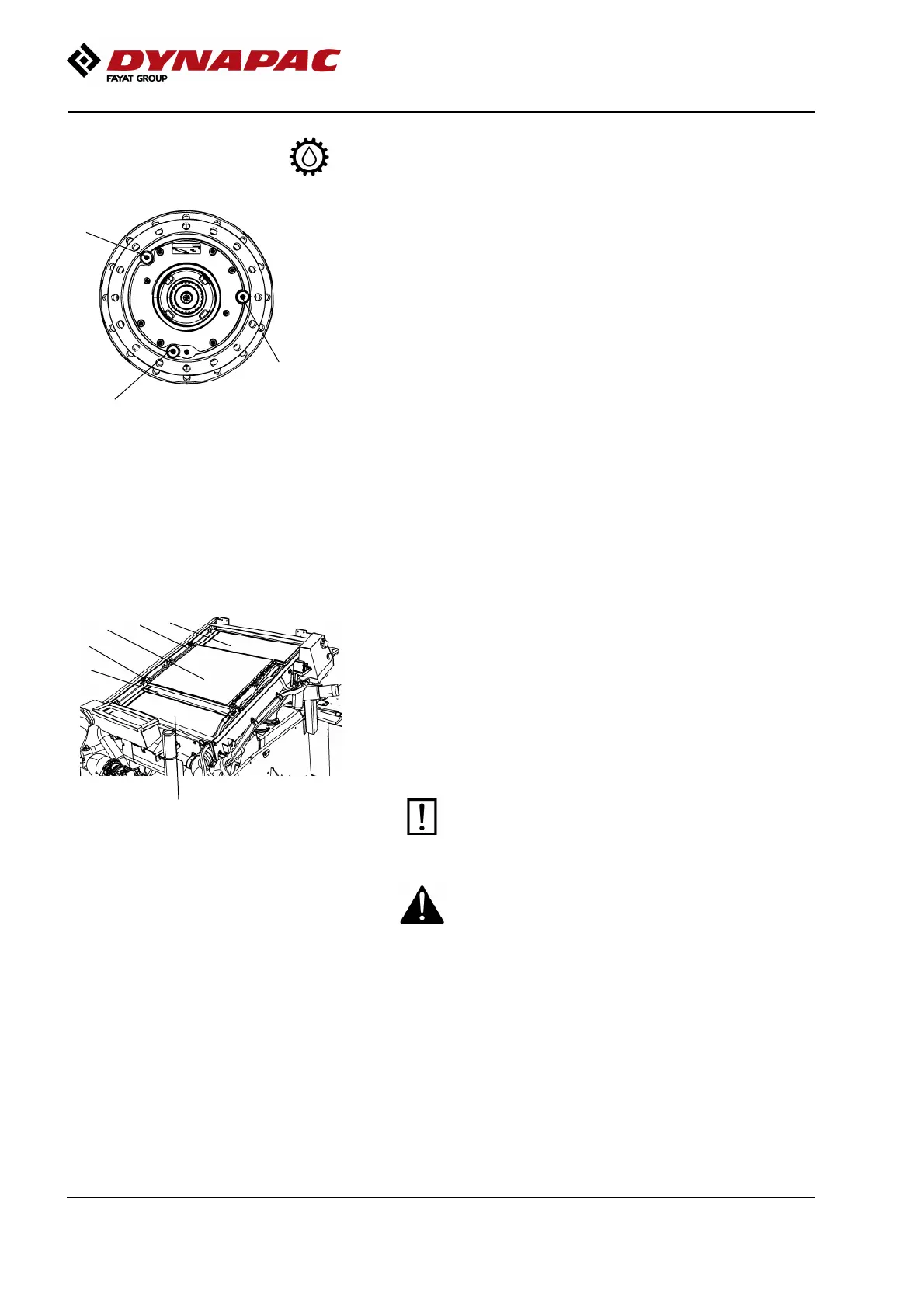

Fig. Drum gearbox
1. Drain plug
2. Filler plug
3. Level plug
1
2
3
Wipe clean, unscrew the plugs (1, 2 and 3) and drain
the oil into a suitable receptacle, capacity about 5.0
liters (5,3 qts.).
Refit the drain plug (1) and fill with oil up to the level
plug (3), according to "Drum gearbox - Checking the
oil level".
Use transmission oil according to the lubricant
specification.
Clean and refit the level plug (3) and filler plug (2).
Radiator - Check/Cleaning
Fig. Engine compartment
1. Water cooler
2. Charge air cooler
3. Hydraulic fluid cooler
4. Condenser element AC (Optional)
5. Screws (x 2)
1
2
3
4
5
5
Check that air can pass unobstructed through the
radiators (1), (2) and (3).
Clean a dirty radiator using compressed air or a
high-pressure water jet.
Undo the two screws (5) and tilt the condenser
element upwards.
Blow air or direct water through the cooler in the
opposite direction to that of the cooling air.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Wear protective goggles when working with
compressed air or high-pressure water jets.
