Machine description

4812165301.pdf2022-09-02

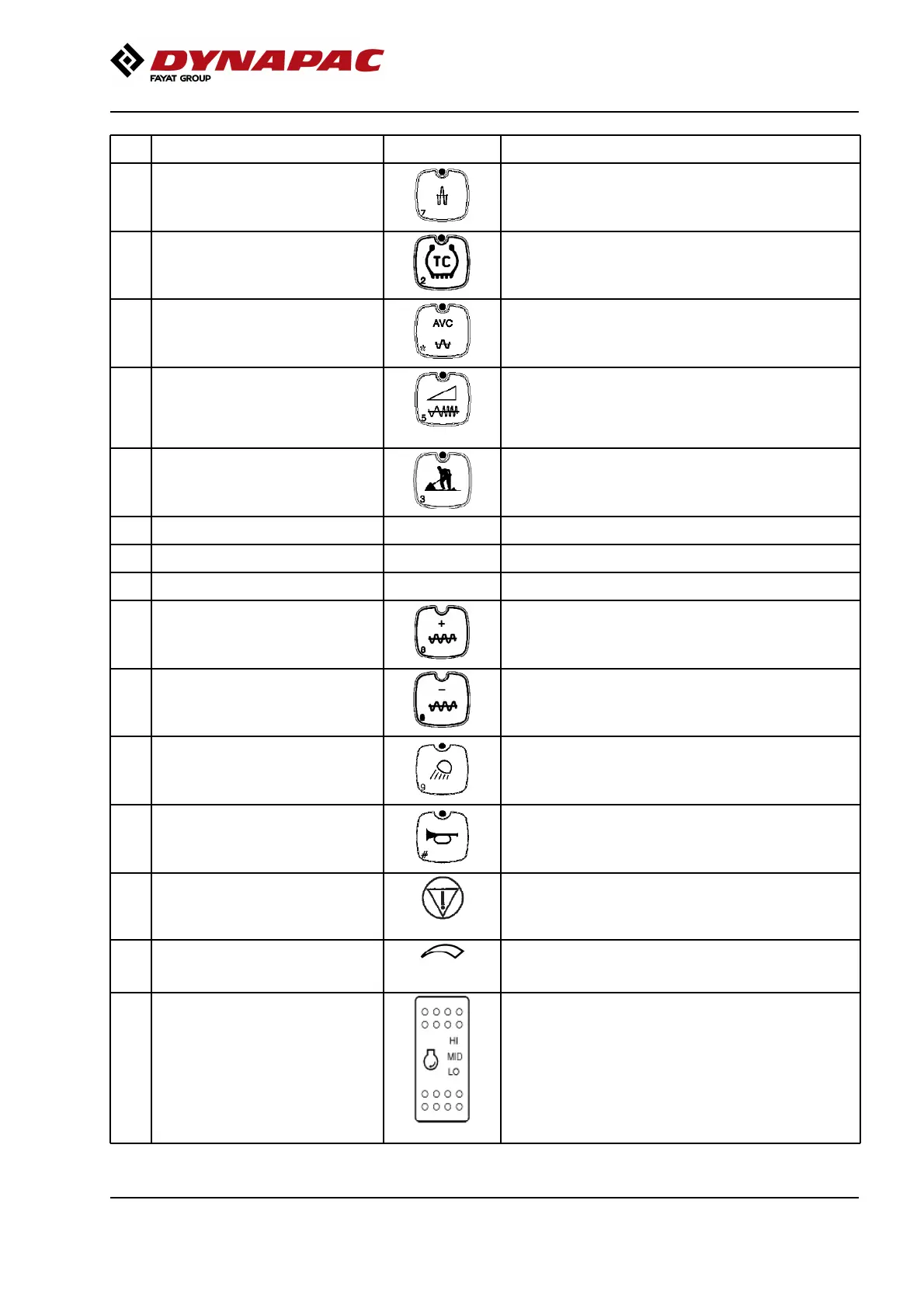

No Designation Symbol FunctionNo Designation Symbol Function

10 Amplitude selector, high amplitude Activation produces high amplitude. (Low amplitude is

the basic mode if the button is not activated.)

10 Amplitude selector, high amplitude Activation produces high amplitude. (Low amplitude is

the basic mode if the button is not activated.)

11 Auto traction control, TC

(Anti-spin)

If the machine is equipped with TC (Anti-spin), it is

activated when starting up. (TC can be disengaged).

The speed limiter (23) is used to set the maximum

speed at full deflection of the forward/reverse lever.

11 Auto traction control, TC

(Anti-spin)

If the machine is equipped with TC (Anti-spin), it is

activated when starting up. (TC can be disengaged).

The speed limiter (23) is used to set the maximum

speed at full deflection of the forward/reverse lever.

12 Automatic vibration control (AVC) When activated, the vibration is switched on

automatically when the roller's speed is ≥ 1.8 km/h

(1.1 mph) and disengaged at a speed of 1.5 km/h (0.9

mph).

12 Automatic vibration control (AVC) When activated, the vibration is switched on

automatically when the roller's speed is ≥ 1.8 km/h

(1.1 mph) and disengaged at a speed of 1.5 km/h (0.9

mph).

13 Adjustable frequency/Seismic,

On/Off (Optional)

Activates adjustable frequency, see also buttons 18

and 19.

Deactivated (LED off) produces fixed set vibration

frequencies for the machine. Seismic machine

frequency automatically be optimized at all times

13 Adjustable frequency/Seismic,

On/Off (Optional)

Activates adjustable frequency, see also buttons 18

and 19.

Deactivated (LED off) produces fixed set vibration

frequencies for the machine. Seismic machine

frequency automatically be optimized at all times

14 Working mode / Transport mode Activates working mode, which makes it possible to

use vibration and compaction plates.

The roller always starts in transport mode.

14 Working mode / Transport mode Activates working mode, which makes it possible to

use vibration and compaction plates.

The roller always starts in transport mode.

15 Reserve15 Reserve

16 N/A16 N/A

17 Reserve17 Reserve

18 Frequency, increase (Optional) Increases vibration frequency18 Frequency, increase (Optional) Increases vibration frequency

19 Frequency, decrease (Optional) Decreases vibration frequency19 Frequency, decrease (Optional) Decreases vibration frequency

20 Working lights (Optional) By activating the working lights will turn ON.20 Working lights (Optional) By activating the working lights will turn ON.

21 Horn Press to sound the horn.21 Horn Press to sound the horn.

22 Emergency stop Brakes the roller and switches off the engine. The

power supply goes off.

NB! When starting the machine, the emergency stop

must be inactive.

22 Emergency stop Brakes the roller and switches off the engine. The

power supply goes off.

NB! When starting the machine, the emergency stop

must be inactive.

23 Speed limiter Limitation of the machine's max. speed (max.speed is

obtained with full deflection of the F/R lever). Set the

knob to the position for the desired max. speed.

23 Speed limiter Limitation of the machine's max. speed (max.speed is

obtained with full deflection of the F/R lever). Set the

knob to the position for the desired max. speed.

24 Rpm switch, diesel engine Three-position switch for idling (LO), intermediate

speed (MID) and working speed (HI).

NOTE:The lever must be in neutral (LO) when starting

the machine. The engine also runs at low speed when

stationary, more than approx. 10 seconds if the F&R

lever is in neutral.

If the F&R lever is moved out of neutral the speed will

increase to the set speed again. If the machine has a

fuel optimization system, MID is replaced by ECO (and

the switch is green).
