Operation
4812165301.pdf 2022-09-02
5

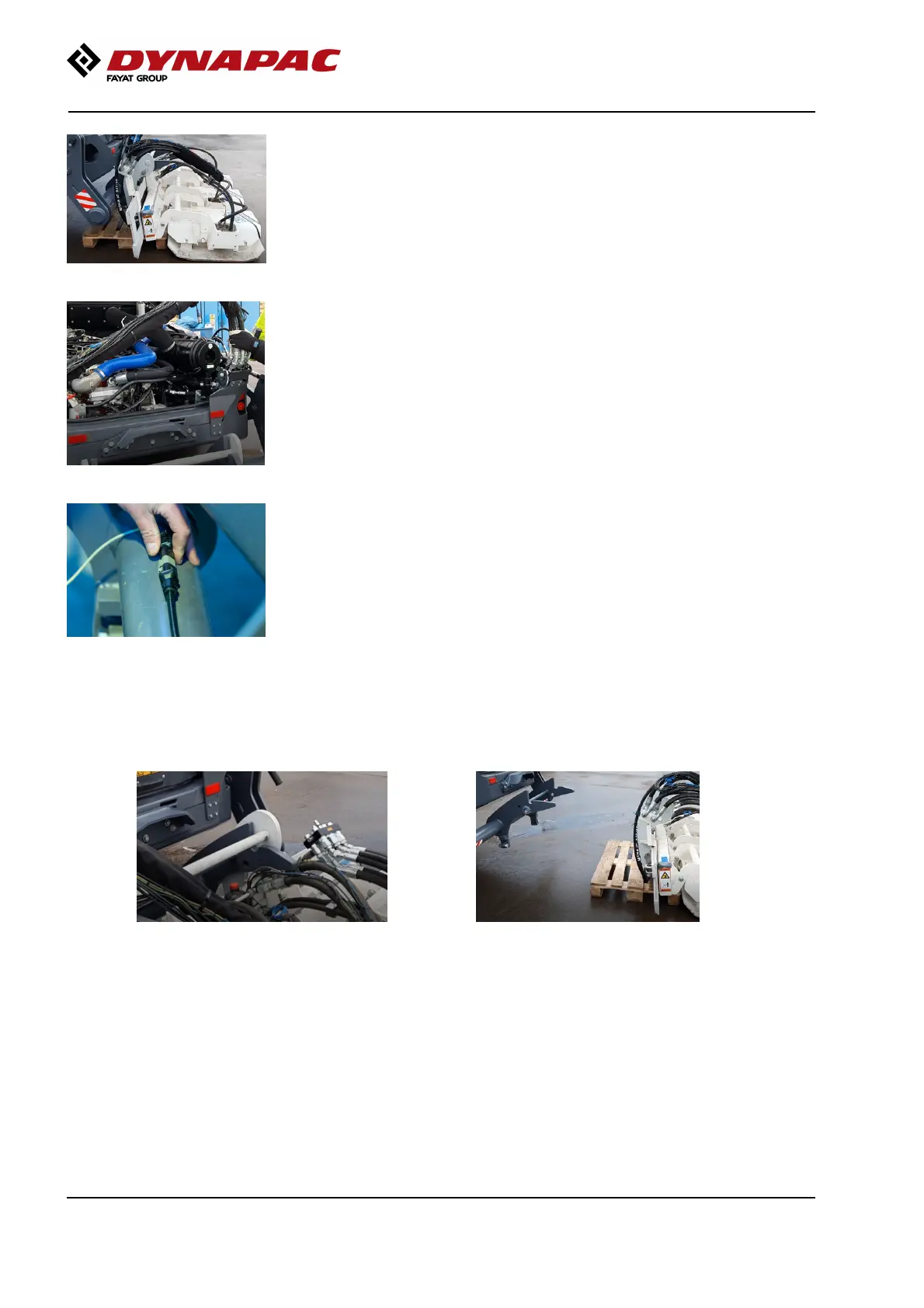

Switch off the engine and engage the parking brake.
Plug the hoses (dust seals) with the enclosed plugs.
6
Open the hood, release the hydraulic quick-release by
releasing the clamping arm.
Make sure that the quick-connector halves are
protected from dirt for the entire time when the roller
and the packing plates are disconnected. Return the
tensioning arm to the locked position and close the
engine hood.
7
Then the plug connector of the offset sensor must be
disconnected.
Now start the machine’s engine and activate “Service
mode” in the “Machine settings” menu in the roller’s
operator display.
Lower the lifting arms a little at a time until they are
clear from the crossbar. Pay close attention to the
hydraulic components on the compaction plates!
Release the parking brake and drive very slowly
straight ahead until the plates are completely
disengaged.
8
Position the locking bar appropriately on the lifting
arms and fit the securing pin in its place.
Position the hydraulic hoses and quick-connector on
them in such a way that the quick coupling is protected
from dirt, water and contamination.
84
