4. Operation
4.6 Transfer program to the easyE4 device
easySoft 7 Project View\Project\Card...

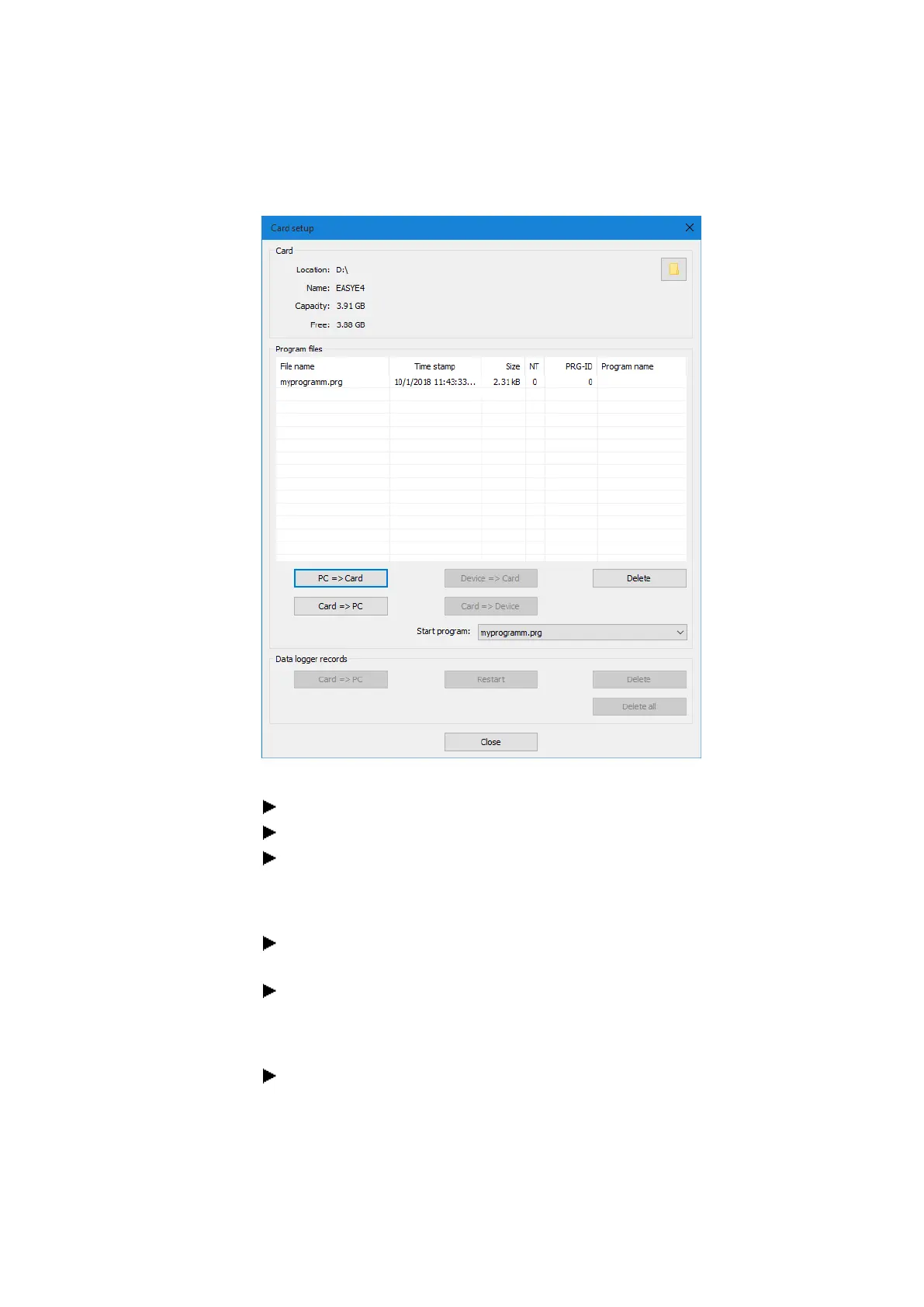

Figure 67: The program was transferred to the memory card.
Close the window
Remove the microSD memory card from the drive.
Insert the microSD memory card into the slot on the easyE4 base device.
→ Section "Inserting a microSD card", page 62
The easyE4 device will be ready for operation.
Apply the corresponding supply voltage while observing all relevant safety instruc-
tions.
The easyE4 device will start running the program (depending on the operating
mode).
or
Transfer the program from the microSD memory card to the device if you did not
define the program as the starting program.
→ page 150
118
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
