6. Function blocks
6.1 Manufacturer function blocks
Timing relay value display

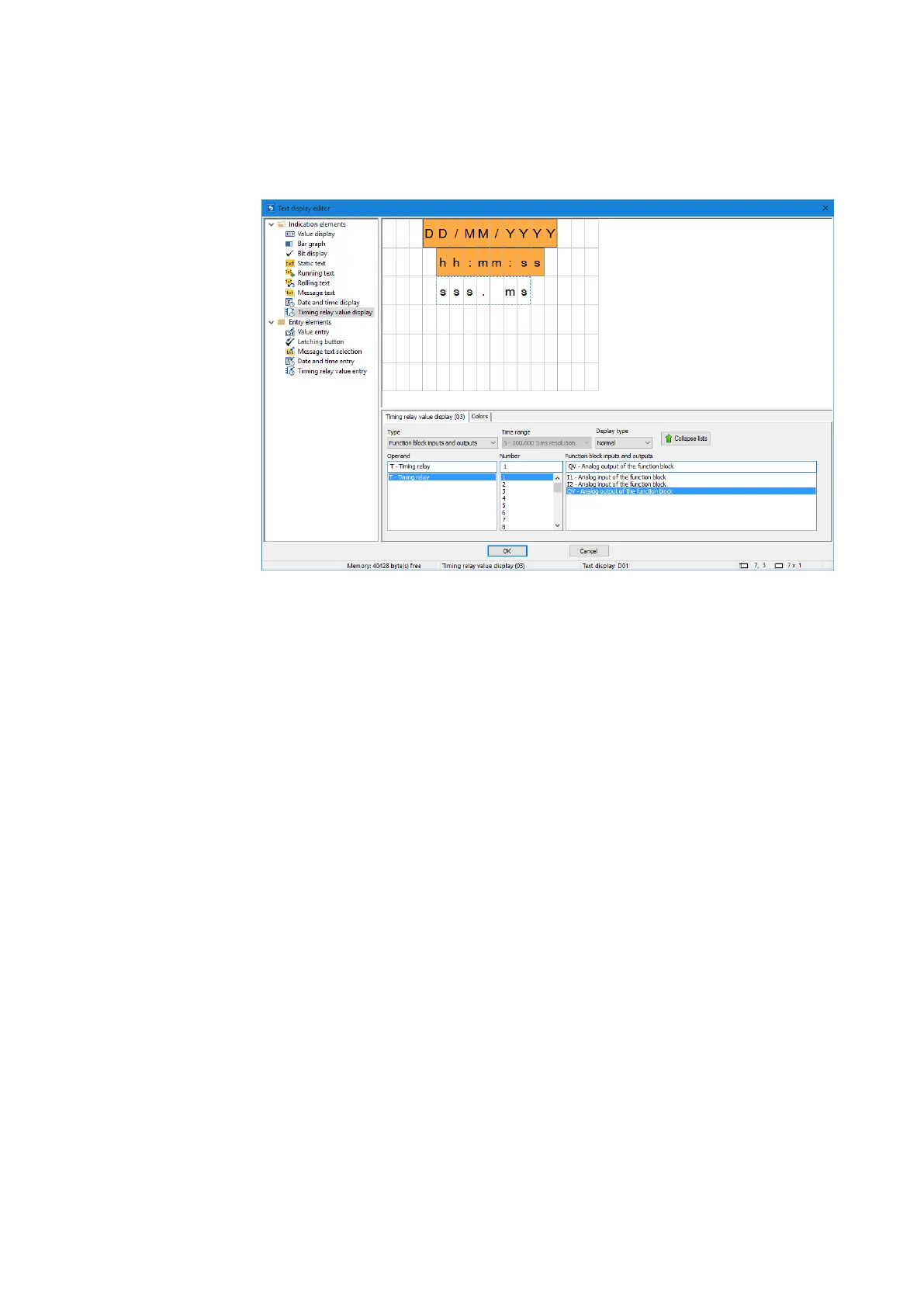

Time functions can be implemented using the timing relay value display elements. You
can conveniently display the reference value or the running time value in its own dis-
play element. Please note that the number of characters, and the size of the display ele-
ment accordingly, is fixed. To configure the element, you will need to select the timing
relay function block number you want and configure the parameters you want. You can
also reference operands such as markers directly as a source for the display, in which
case you will need to make sure that the data format used in the operand is the format
for a timer value.
374
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
