1. easyE4 control relays description
1.8 Overview of devices
1.8 Overview of devices

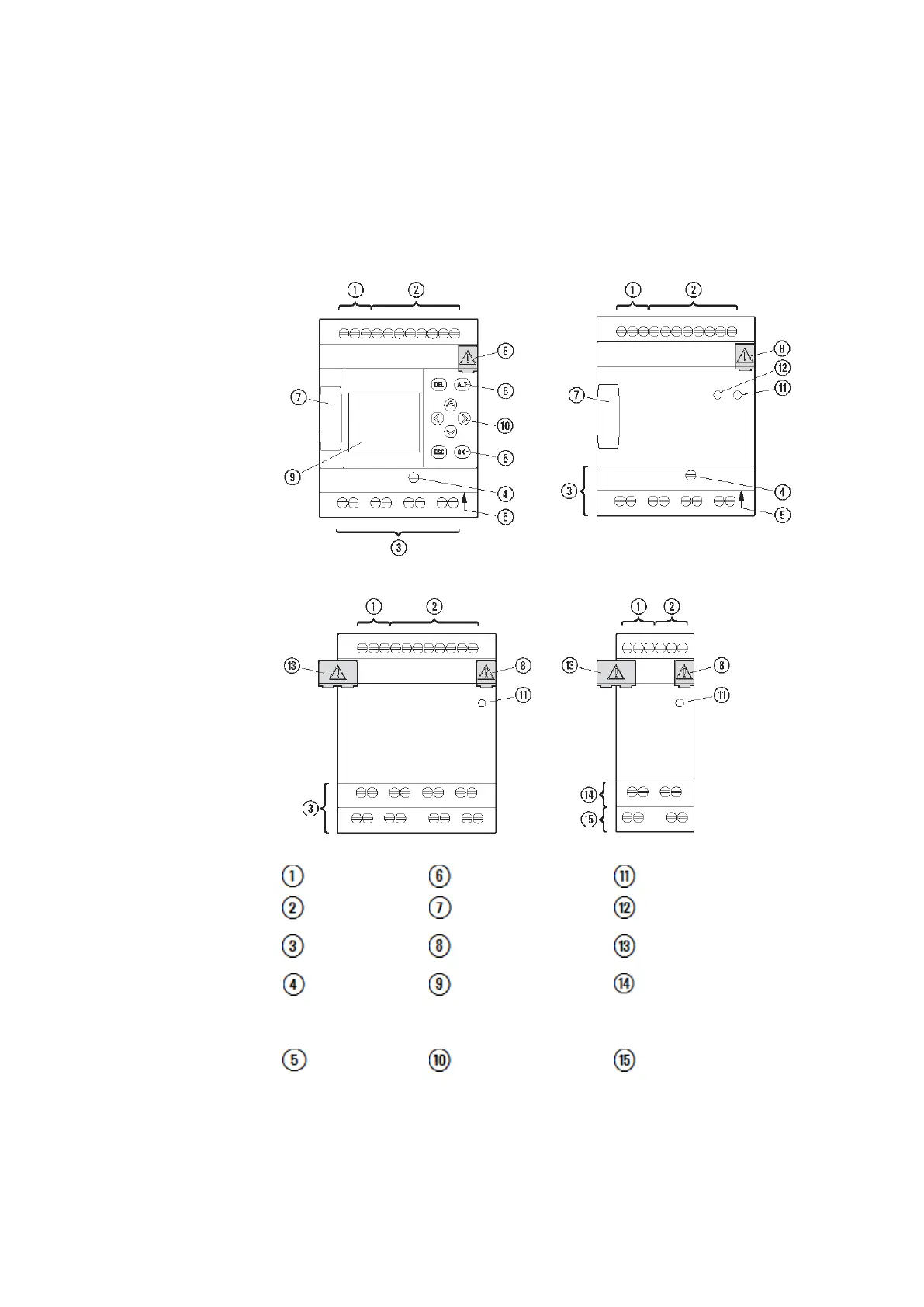

EASY-E4-...-12...C1 EASY-E4-...-12...CX1
Expansions
Power Supply Pushbuttons LED POW/RUN
Input points Slot for microSD
memory card
LED
ETHERNET/NET
Outputs Covering cap Bus connector
plug
Ethernet con-
nection
Functional
earth
Display Analog inputs
Ethernet
socket
Cursor buttons Analog outputs
easyE4 11/18 MN050009 EN www.eaton.com
27

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
