Eaton EASY-E4 Series User Manual

5. Programming on the device
5.4 Working with contacts and coils

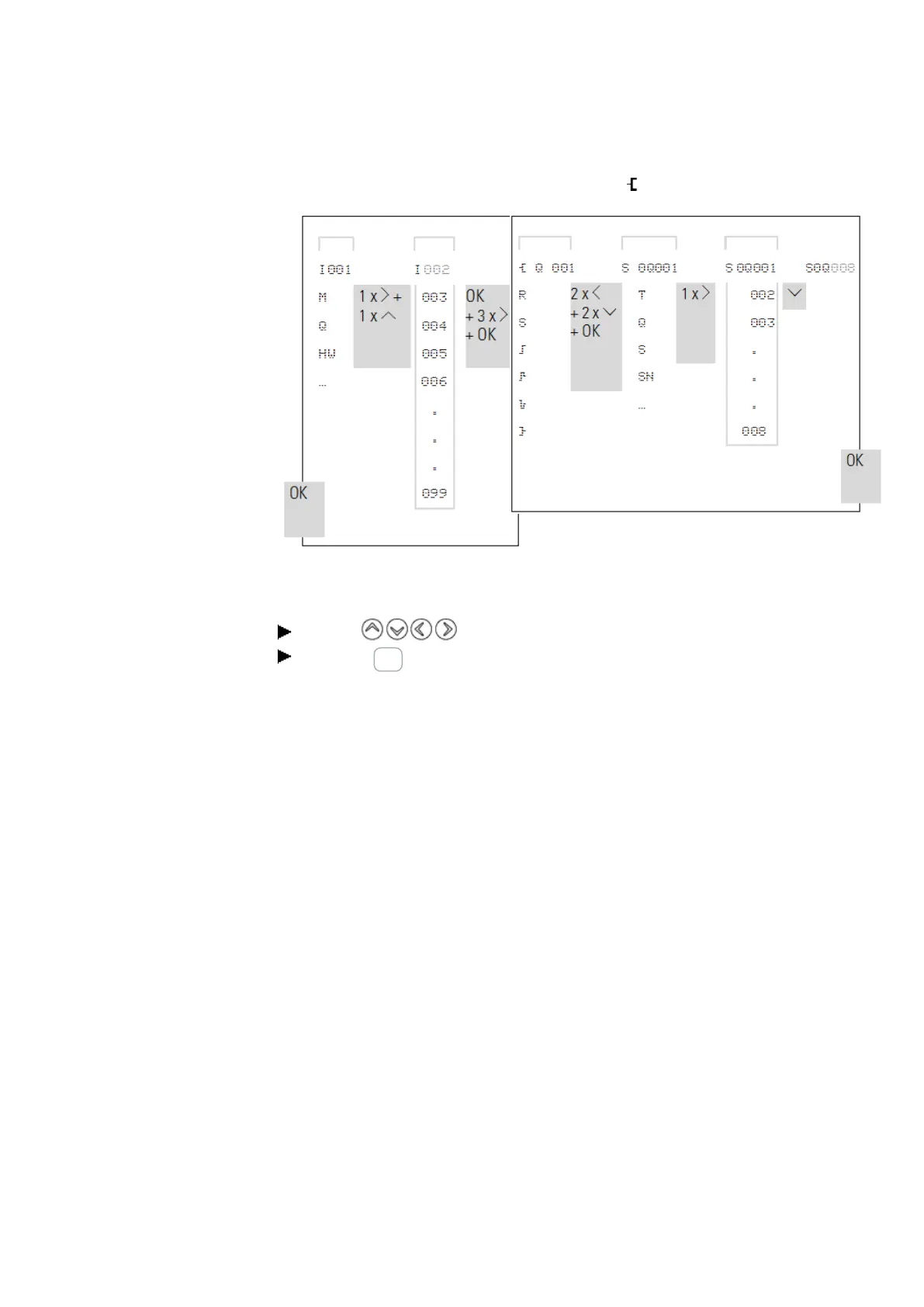

In the contact field to change I 01
to I 02
In the coil field change Q 001 to S Q 008
5.4.4 Deleting contacts and coils
Use the buttons to move the cursor to a free contact or coil field.
Press the DEL pushbutton.
The contact or the coil will be deleted, together with any connections.
easyE4 11/18 MN050009 EN www.eaton.com
137

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
