Eaton EASY-E4 Series User Manual

3. Commissioning
3.4 Overview of switch-on behavior

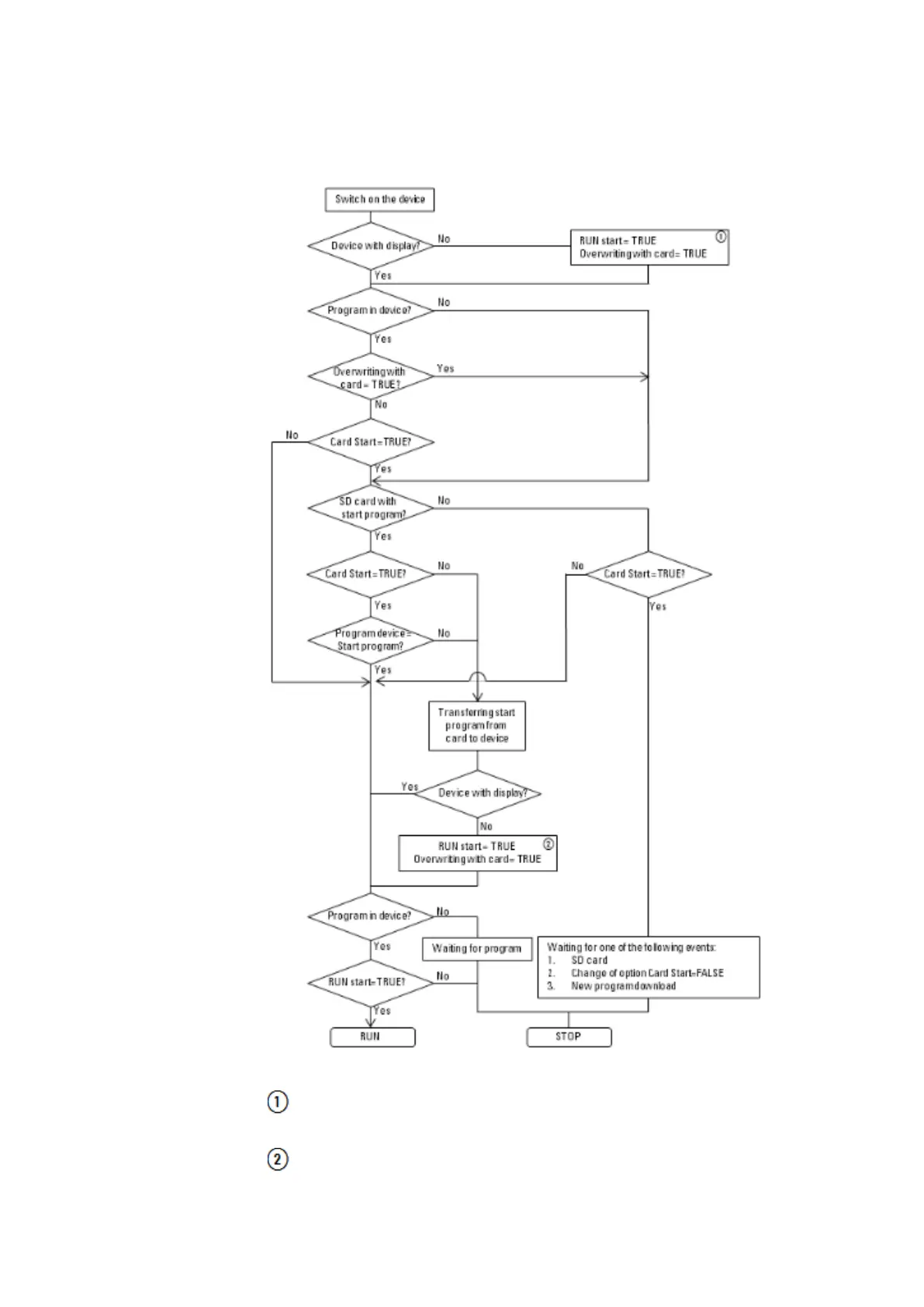

Figure 51: Startup procedure with device initialization
RUN start: The device should be able to start without easySoft 7
Allow overwriting via card: If an SD card with a starting program has been inserted, the device
should load from the card
Options set again, since they could be overwritten by the loaded program
86
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
