6. Function blocks
6.1 Manufacturer function blocks
How the timing relay works with the single pulse operating mode with and without
random times

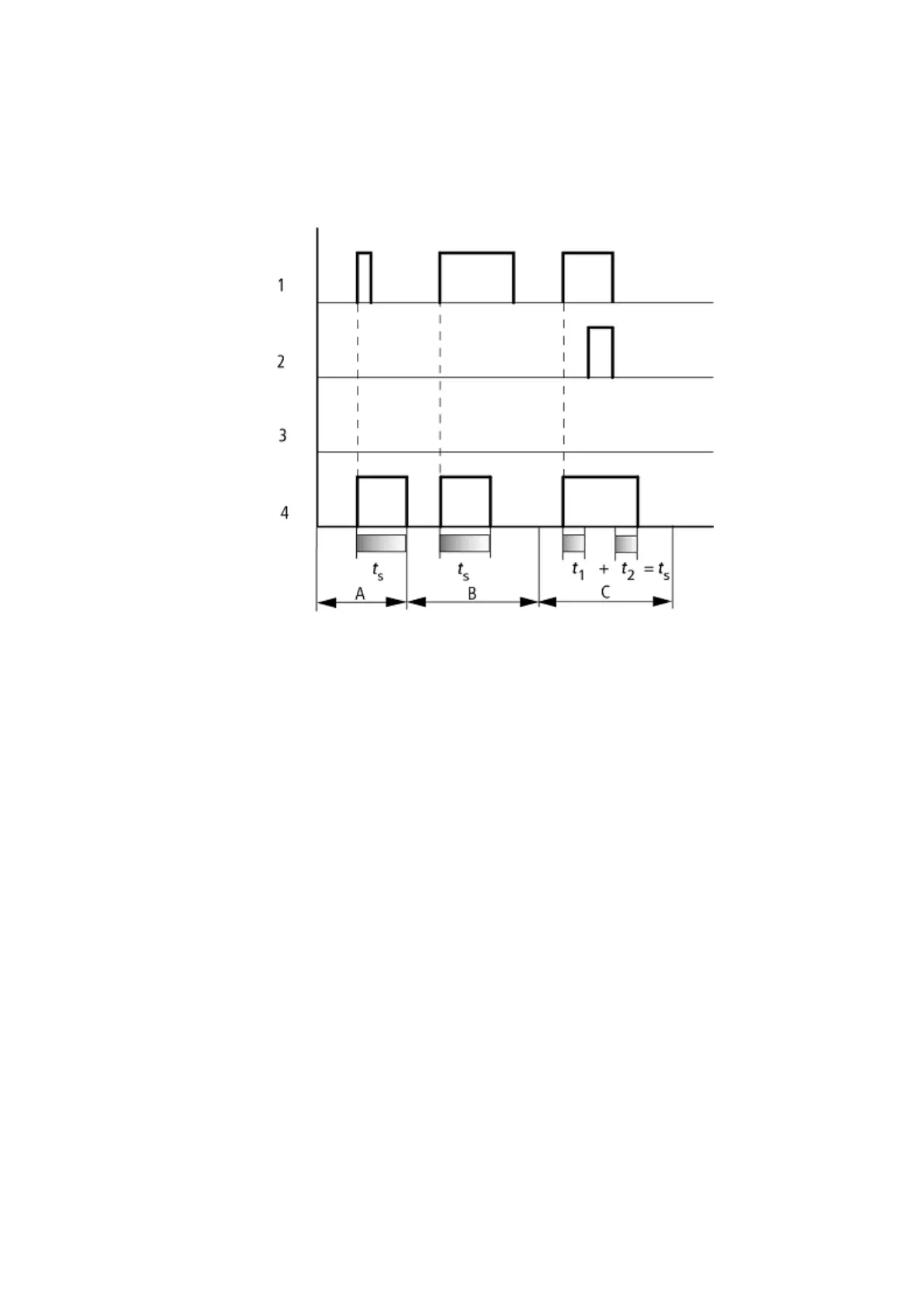

Figure 119: Signal diagram timing relay, single pulse 1
1: Trigger coil T…EN
2: Stop coil T…ST
3: Reset coil T…RE
4: Switching contact (N/O contact) T…Q1
Range A: The trigger signal is short and is lengthened.
Range B: The trigger signal is longer than the SET time.
Range C: The stop coil interrupts the timing out of the set time.
easyE4 11/18 MN050009 EN www.eaton.com
205

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
