Eaton EASY-E4 Series User Manual

2. Installation
2.4 Connection terminals
2.4.7 Analog I/O expansion device
The EASY-E4-DC-6AE1 features four analog inputs and two analog outputs. You can use
easySoft 7 to set the operating mode for each analog input and analog output.
The following options are available:
Resolution, analog
Resolution, digital
value
0 – 10 V
12 bits
0 - 4095
4 – 20 mA
12 bits
820 - 4095
0 – 20 mA
12 bits
0 - 4095
For all analog inputs, you can configure noise suppression, averaging, and an update
rate in easySoft 7.
Project view

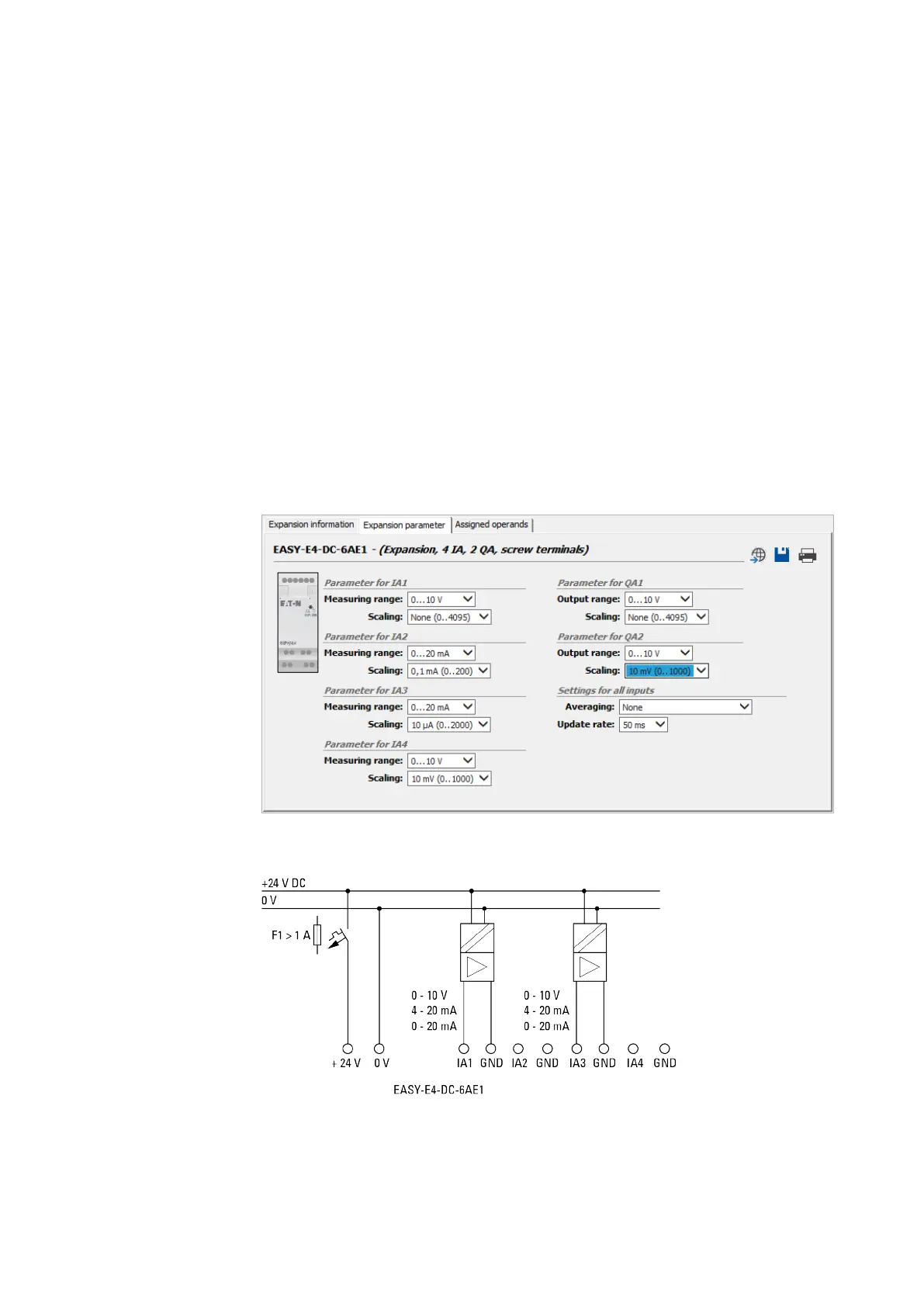

Figure 21: Device parameters tab
Figure 22: Connecting analog inputs EASY-E4-DC-6AE1
58
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
