2. Installation
2.4 Connection terminals
2.4.5 Connecting relay outputs
The EASY-E4-UC-... base and expansion devices feature relay outputs.

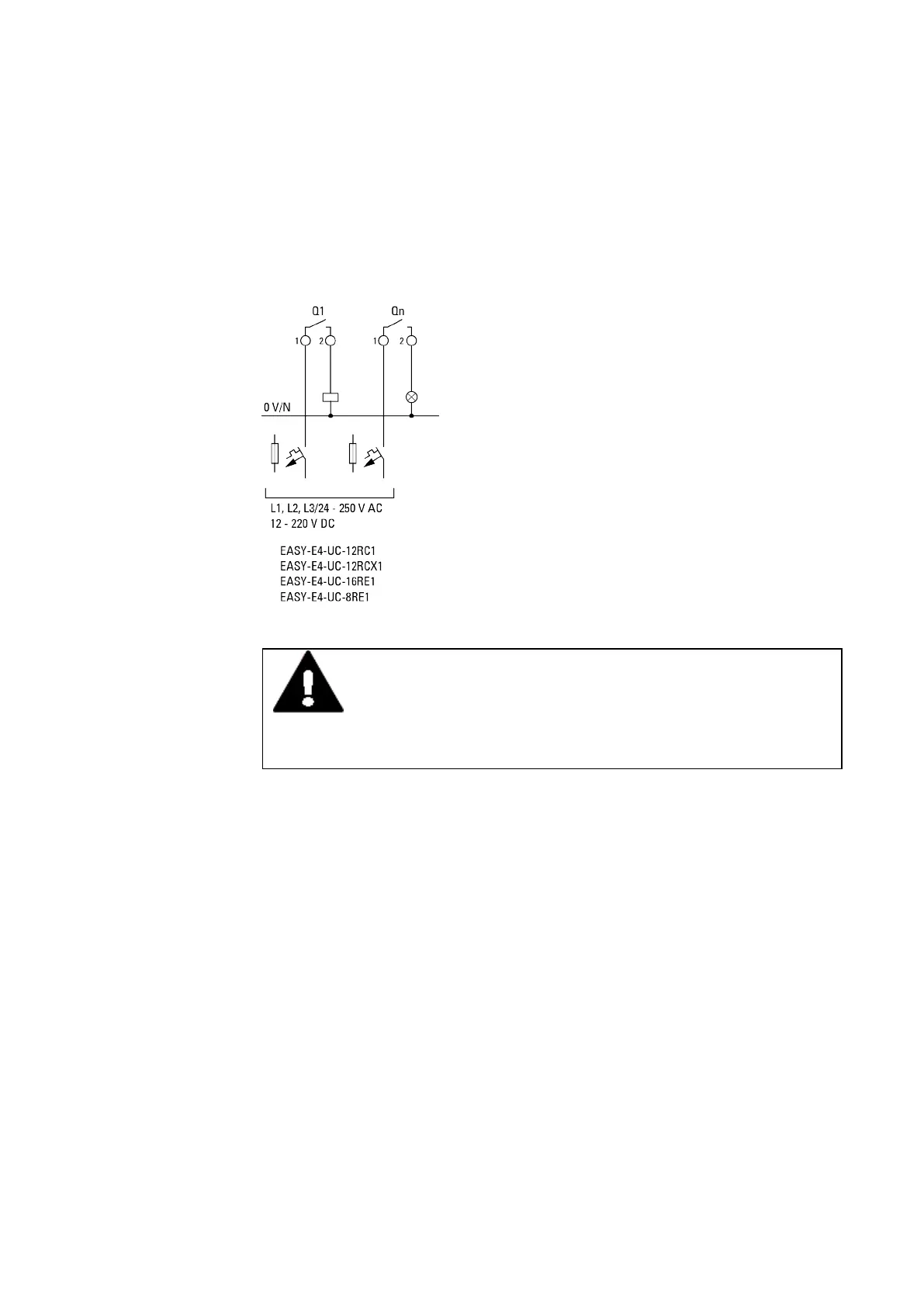

Figure 17: Connecting relay outputs
DANGER
Make sure to observe the technical data for the relays.
Do not exceed the upper voltage limit of 250 VAC on a relay contact.
If the voltage exceeds this threshold, flashover may occur at the con-
tact, resulting in damage to the device or a connected load.
54
easyE4 11/18 MN050009 EN www.eaton.com
