6. Function blocks
6.1 Manufacturer function blocks
Signal diagram normal operation

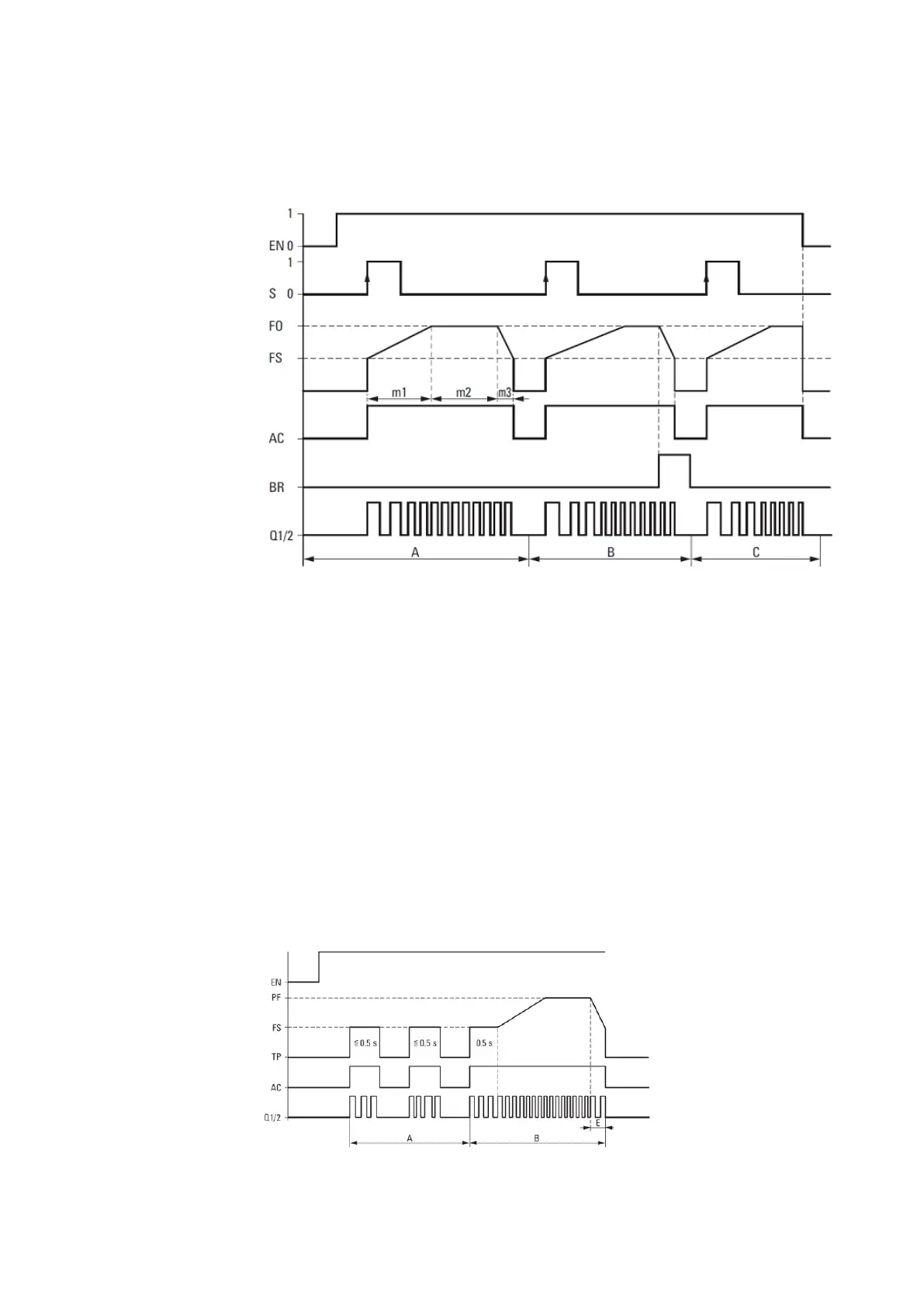

Figure 153: Signal diagram for PO pulse output - possible normal mode phases
EN: Enable coil
S: Start coil for pulse sequence
FO: Operating frequency,
FS = start frequency,
m1 = Acceleration phase, m2 = Operating phase, m3 = Braking phase
AC: Pulse sequence applied at device output, contact
BR: Stop coil for pulse sequence
Q1/2: Pulse sequence at the device output Q1 and/or Q2
Range A: The pulse sequence is present at the device output until the number of pulses defined at I1
has been reached.
Range B: Activating the coil PO..BR initiates the braking phase and reduces the frequency of the pulse
sequence.
Range C: A voltage drop at coil PO..EN immediately switches off the pulse sequence from the device
output.
Signal diagram jog mode
Figure 154: Signal diagram PO pulse output - jog mode
292
