Eaton EASY-E4 Series User Manual

4. Operation
4.1 Base device with display and buttons

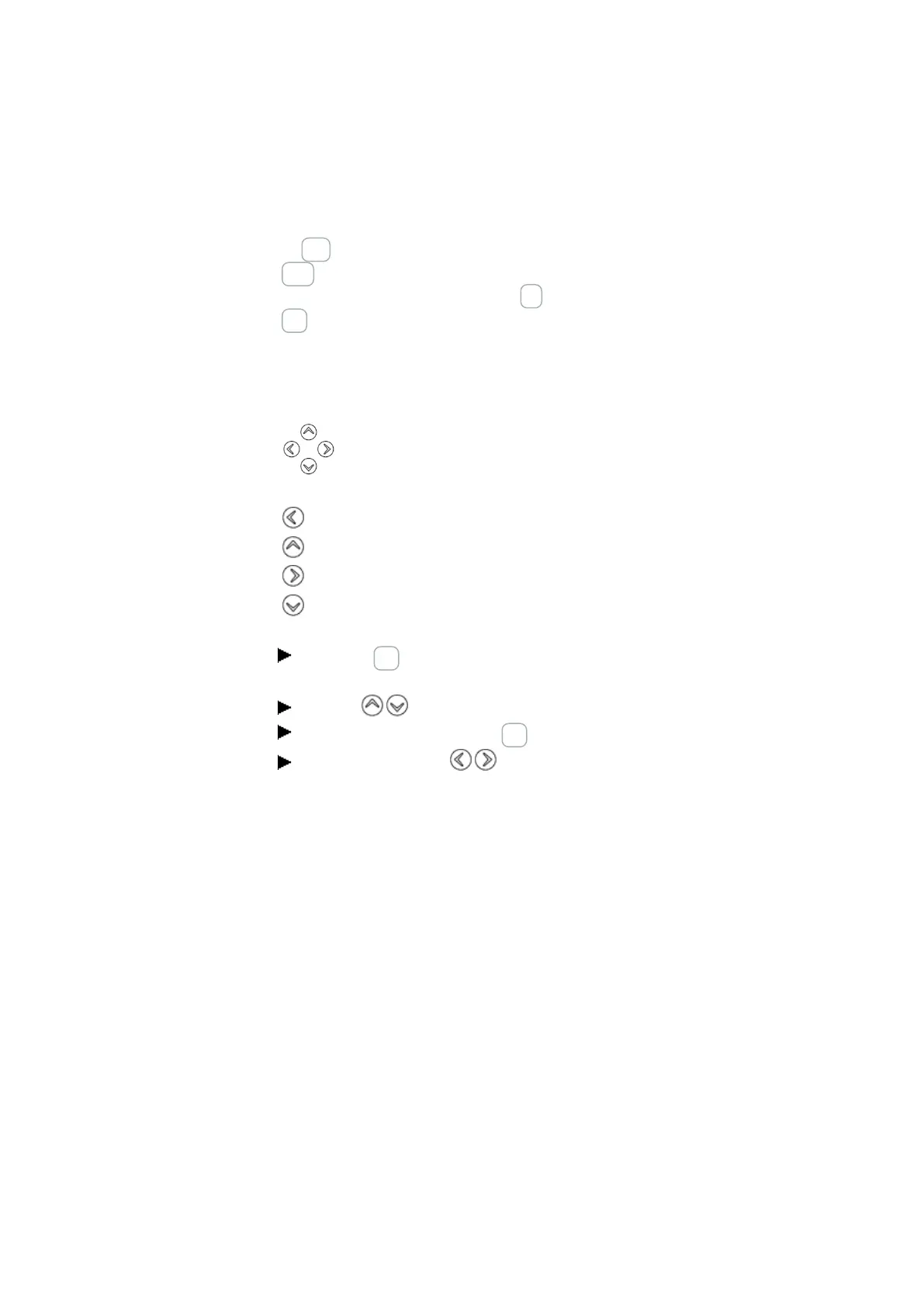

4.1.3 Selecting menus and entering values
2x ALT Calling the System menu
ESC Return to the previous menu level
Cancel entries since last OK
OK Move to the next menu level
Call menu item
Activate, change, save entries
Cursor
buttons
Change menu item,
Change the value,
Activate, change, save entries
How the P button functions are mapped to the cursor buttons:
Input P1
Input P2
Input P3
Input P4
Press the OK button on the EASY-E4-... in order to open the menu from the status
display.
Use the cursor buttons to scroll through the individual menu options.
To confirm a selection, press OK. to open the corresponding menu path.
If necessary, use the cursor buttons while in a line to toggle between the
right and left display areas.
If this option is available, the ó character will appear.
easyE4 11/18 MN050009 EN www.eaton.com
89

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
