Eaton EASY-E4 Series User Manual

6. Function blocks
6.1 Manufacturer function blocks

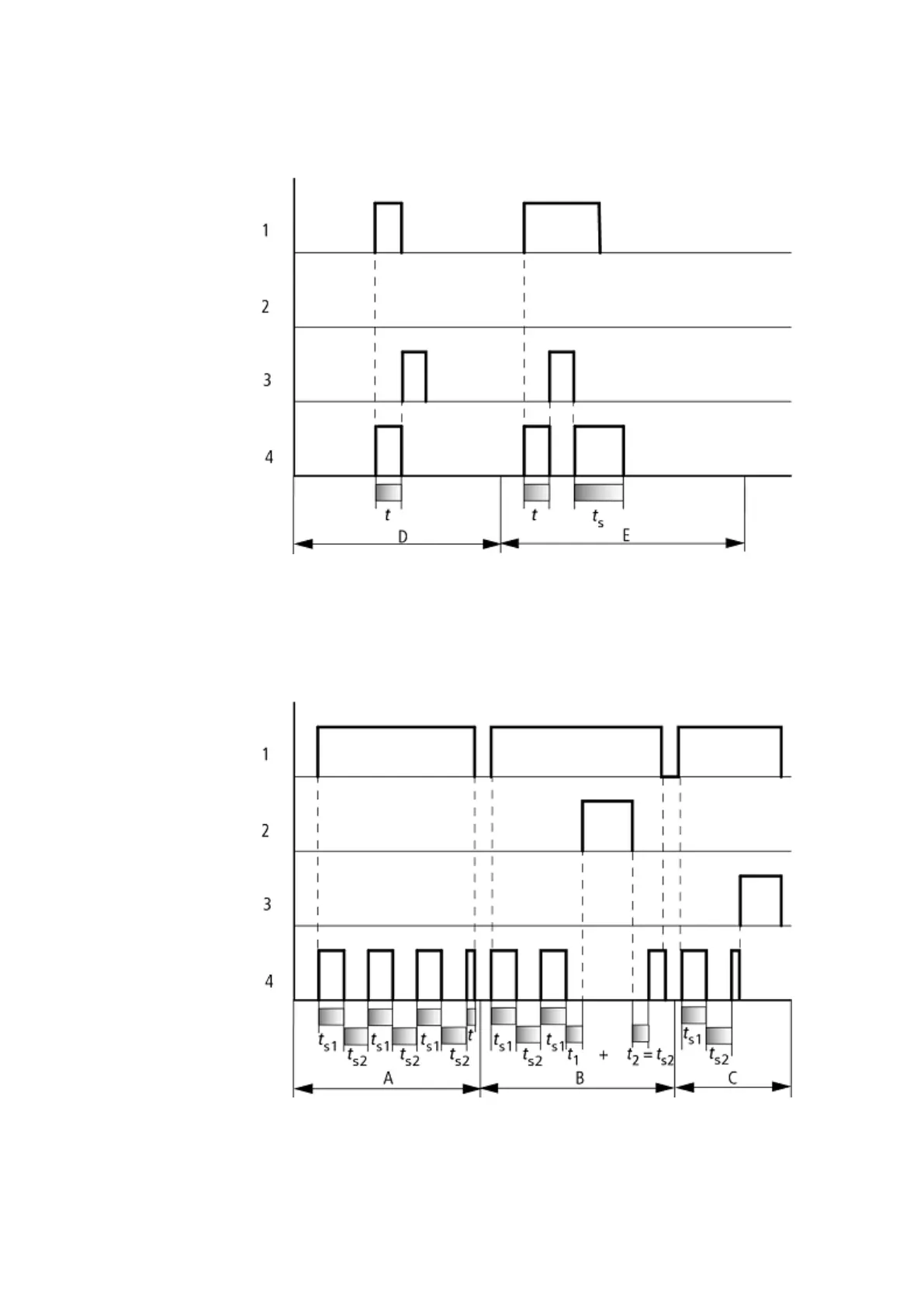

Figure 120: Signal diagram timing relay, single pulse 2
• Range D: The reset coil resets the timing relay.
• Range E: The reset coil resets the timing relay. The trigger coil is still energized after the reset coil is
disconnected, whilst the delay time runs down..
How the timing relay works with the flashing operating mode, synchronous and
asynchronous
Figure 121: Signal diagram timing relay, single pulse 1
1: Trigger coil T…EN
2: Stop coil T…ST
206
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
