Eaton EASY-E4 Series User Manual

2. Installation
2.4 Connection terminals

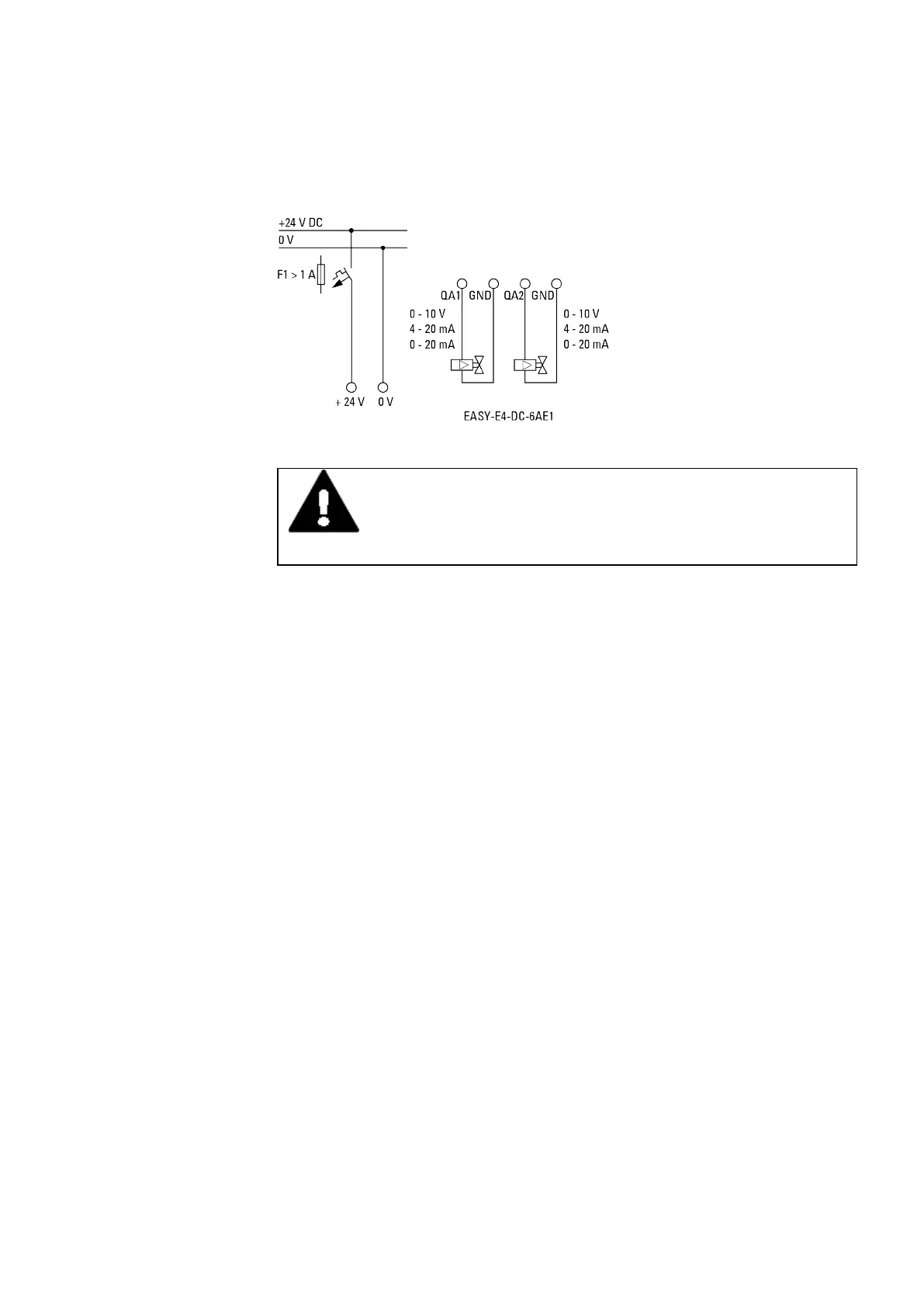

Figure 23: Connecting analog outputs EASY-E4-DC-6AE1
DANGER
Analog signals are more sensitive to interference than digital signals,
therefore the signal cables should be carefully routed and connected.
An incorrect connection can lead to unwanted switching states.
The following measures must be adhered to in order to prevent any deviations in analog
values.
→ Section "Tips for analog signals", page 53
easyE4 11/18 MN050009 EN www.eaton.com
59

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
