5. Programming on the device
5.3 Circuit diagram elements
Coil with contactor function
The output signal follows the input signal directly, the relay operates as a contactor.

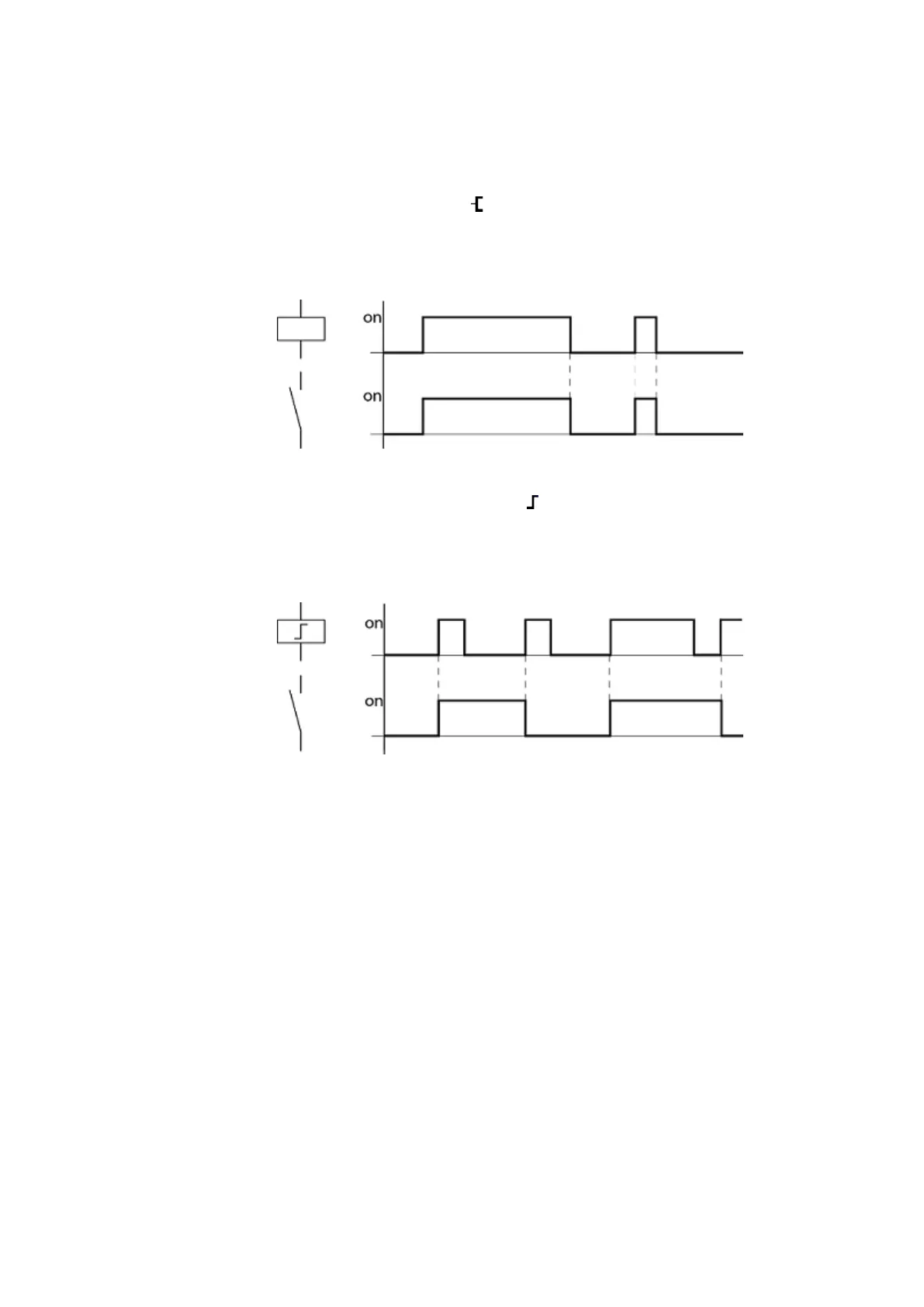

Figure 70: Contactor function signal diagram
Coil with the impulse relay function
The relay coil switches whenever the input signal changes from 0 to 1. The relay
behaves like a bistable flip-flop.
Figure 71: Impulse relay signal diagram
A coil is automatically switched off in the event of a power failure and in STOP mode.
Exception: retentive coils retain the 1 state.
See also
Section "Retention function", page 473
easyE4 11/18 MN050009 EN www.eaton.com
127
