Eaton EASY-E4 Series User Manual

5. Programming on the device
5.6 Working with function blocks

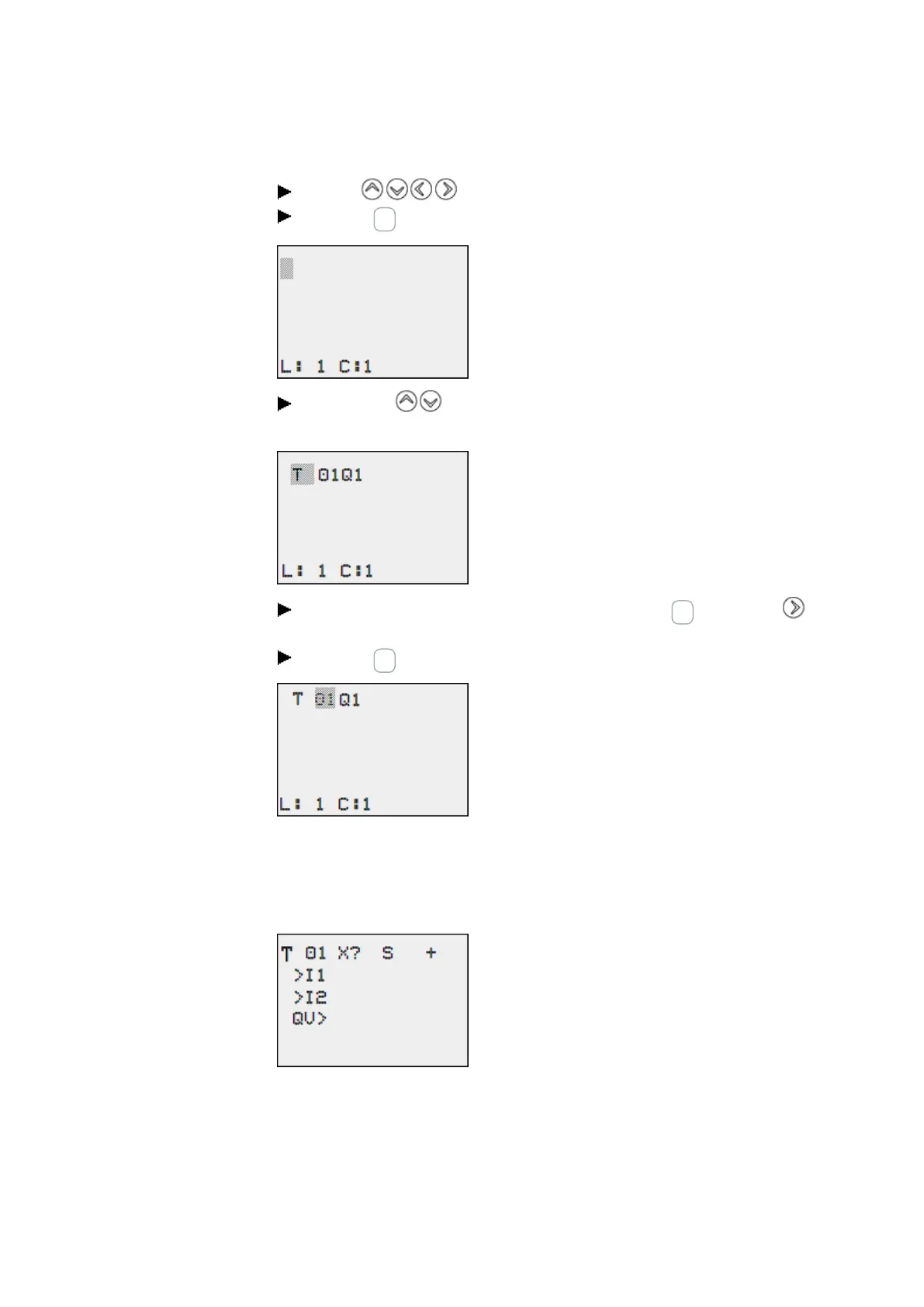

Use the buttons to move the cursor to a free contact or coil field.
Press the OK button to switch to Entry mode.
Then use the cursor buttons to select the function block you want (e.g., a
timing relay with the T identifier).
While the function block identifier is flashing, press the OK button or the button
to move to the function block number
Press the OK button.
The display switches to the function block editor. Here you normally define all function
block parameters. As you have reached the function block editor via the circuit diagram
in this case, you can only set the basic parameters.
The figure on the left shows the function block editor of the Timing relay function block.
The basic parameters may vary according to the function block. All manufacturer func-
tion blocks have the basic parameter +/-. Through the +/- symbol you can switch the
parameter display on and off in operating mode RUN to allow (+) or prevent (-) changes
easyE4 11/18 MN050009 EN www.eaton.com
155

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
