Eaton EASY-E4 Series User Manual

6. Function blocks
6.1 Manufacturer function blocks

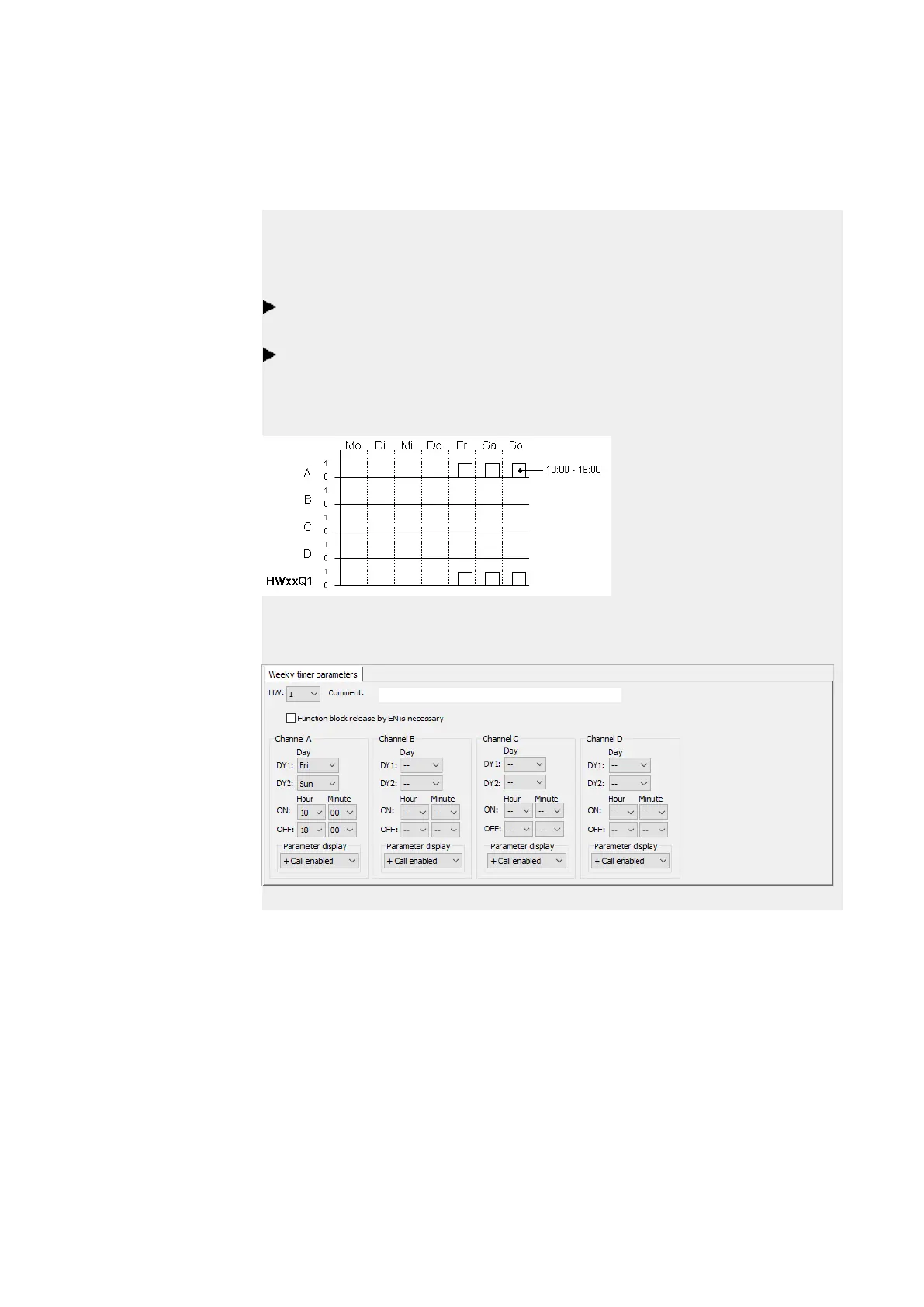

Example 1: Daily on/off switching
(channel A ON - FR 10:00; OFF - SU 18:00)
If the function block output Q1 is to switch on and off daily for a certain number of week-
days, use one channel.
For one channel define at DY1 the weekday and at ON the time for the initial on
switching.
Then in the same channel define at DY2 the weekday and at OFF the time for the
last off switching.
The time switch is required to switch from 10:00 to 18:00 from Fridays to Sundays.
Figure 95: Signal diagram
The HW time switch must be assigned the following parameters:
Figure 96: Figure: Tab with parameters in the Programming view
172
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
