6. Function blocks
6.1 Manufacturer function blocks
Example 3: Switching on one day and off switching on another day
If the contact Q1 is to remain switched on for a certain number of weekdays, use two
channels.
For one channel define at DY1 the weekday and at ON the time for the initial on
switching. DY2 and OFF are left without any parameters for this first channel.
Then in the next channel define at DY1 the weekday and at OFF the time for the
switch-off. DY2 and ON are without any parameters for this second channel.
The time switch is required to switch on at 18:00 on Tuesdays and switch off at 6:00 on
Saturdays.

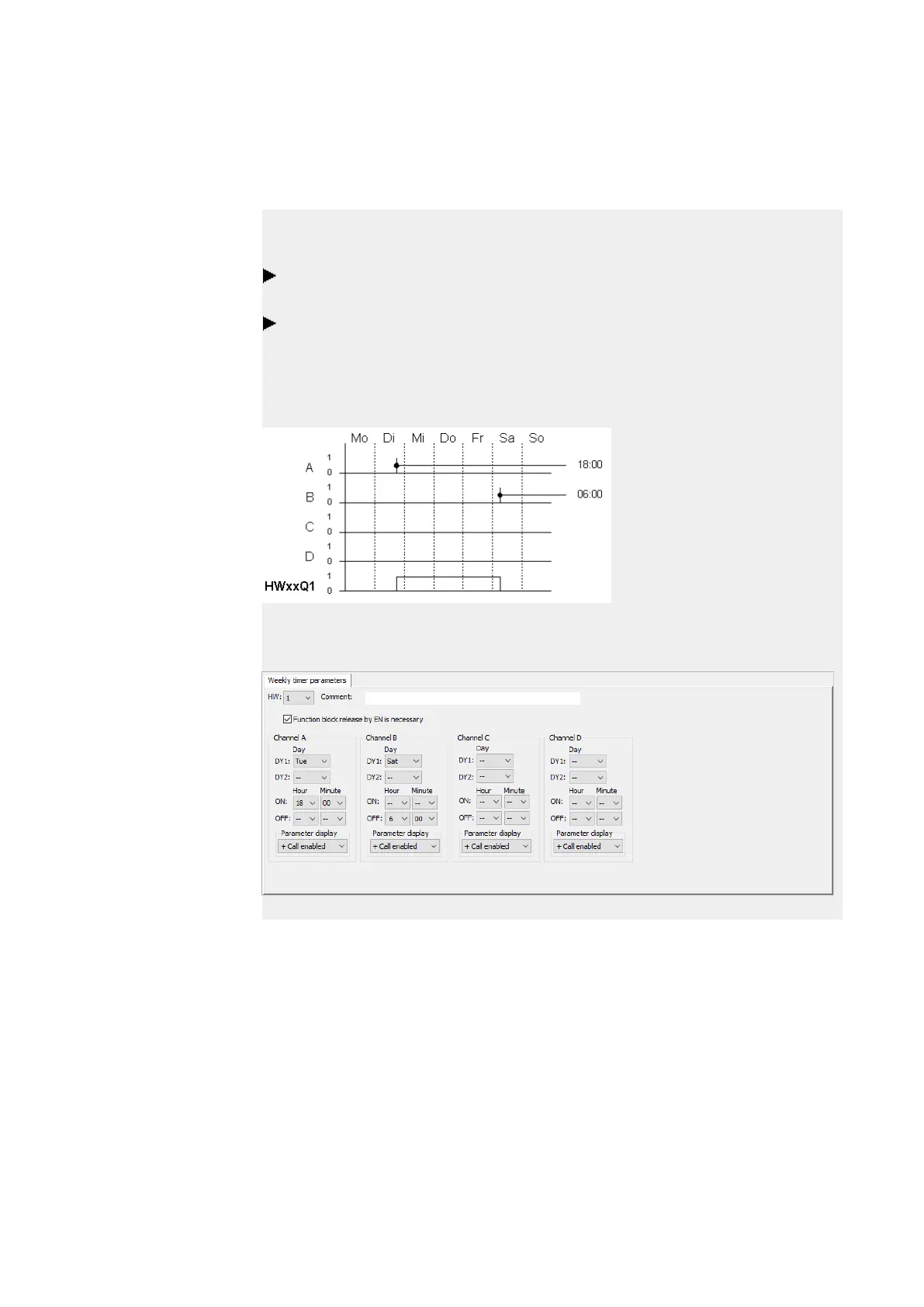

Figure 99: Signal diagram
The HW time switch must be assigned the following parameters:
Figure 100: Figure: Tab with parameters in the Programming view
174
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
