6. Function blocks
6.1 Manufacturer function blocks
Example 6: Overnight switching
The time switch is set for one day, e.g. Mondays, for an on time of ON=22:00 and an off
time of OFF=6:00.
The HW time switch must be assigned the following parameters:

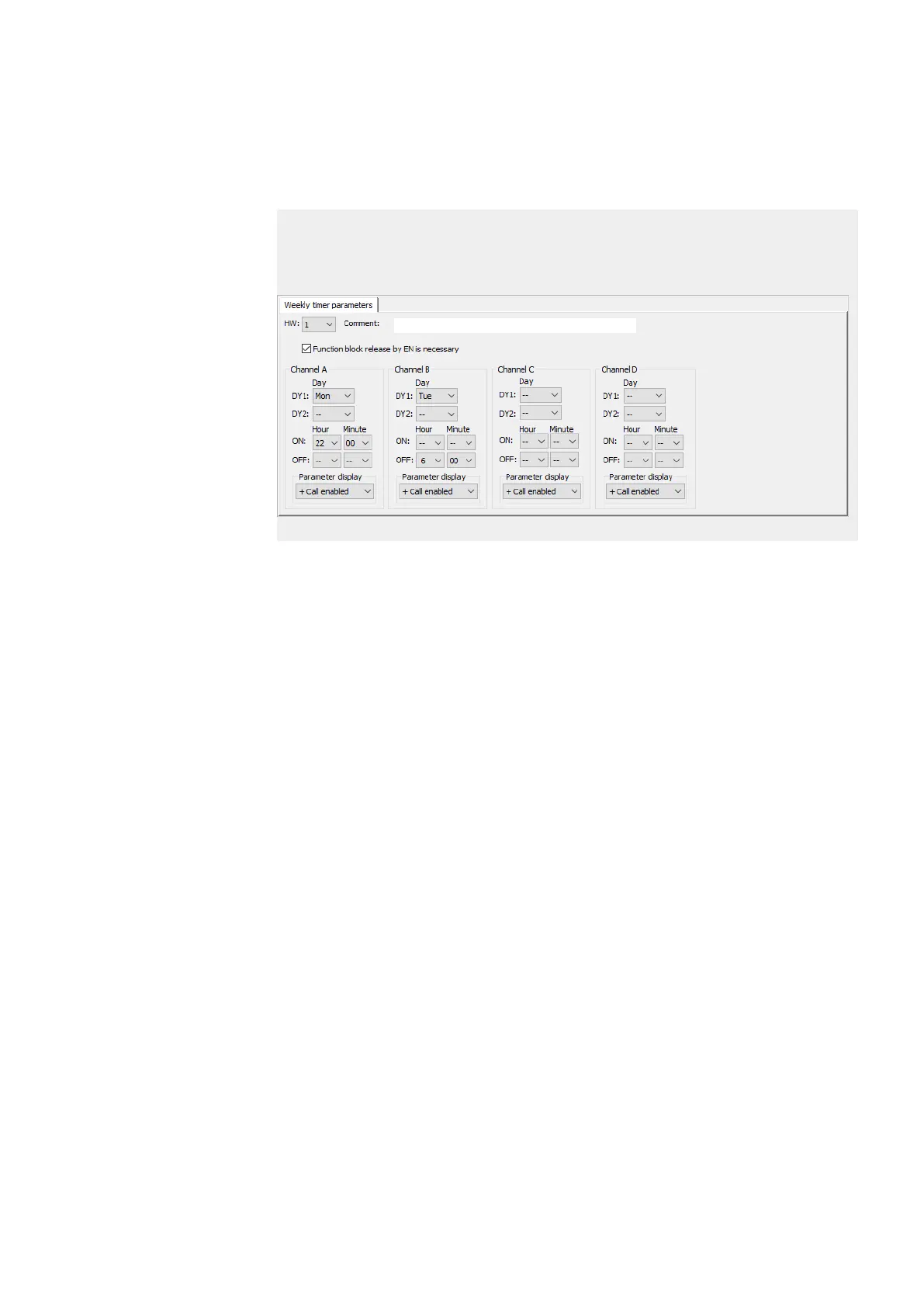

Figure 105: Tab with parameters in the Programming view
See also
→ Section "HY - Year time switch (Hora Year)", page 178
→ Section "OT - Operating hours counter ", page 188
→ Section "RC - Real-time clock", page 192
→ Section "T - Timing relay", page 195
→ Section "WT - Weekly timer (WeekTable)", page 215
→ Section "YT - Year time switch (Year Table)", page 209
