Eaton EASY-E4 Series User Manual

6. Function blocks
6.2 Interrupt function blocks
Example with two counter inputs in easySoft 7
Device input I1: Up counter input C+
Device input I2: Down counter input C-
If the actual value reaches the function block's setpoint, the interrupt will be triggered.
The interrupt program will then set device output Q1 back to 0. In addition, Q01=1 will be
used to set function block output Q1 to 1 and main program marker M250 to 1. This
way, the container status will be signaled.

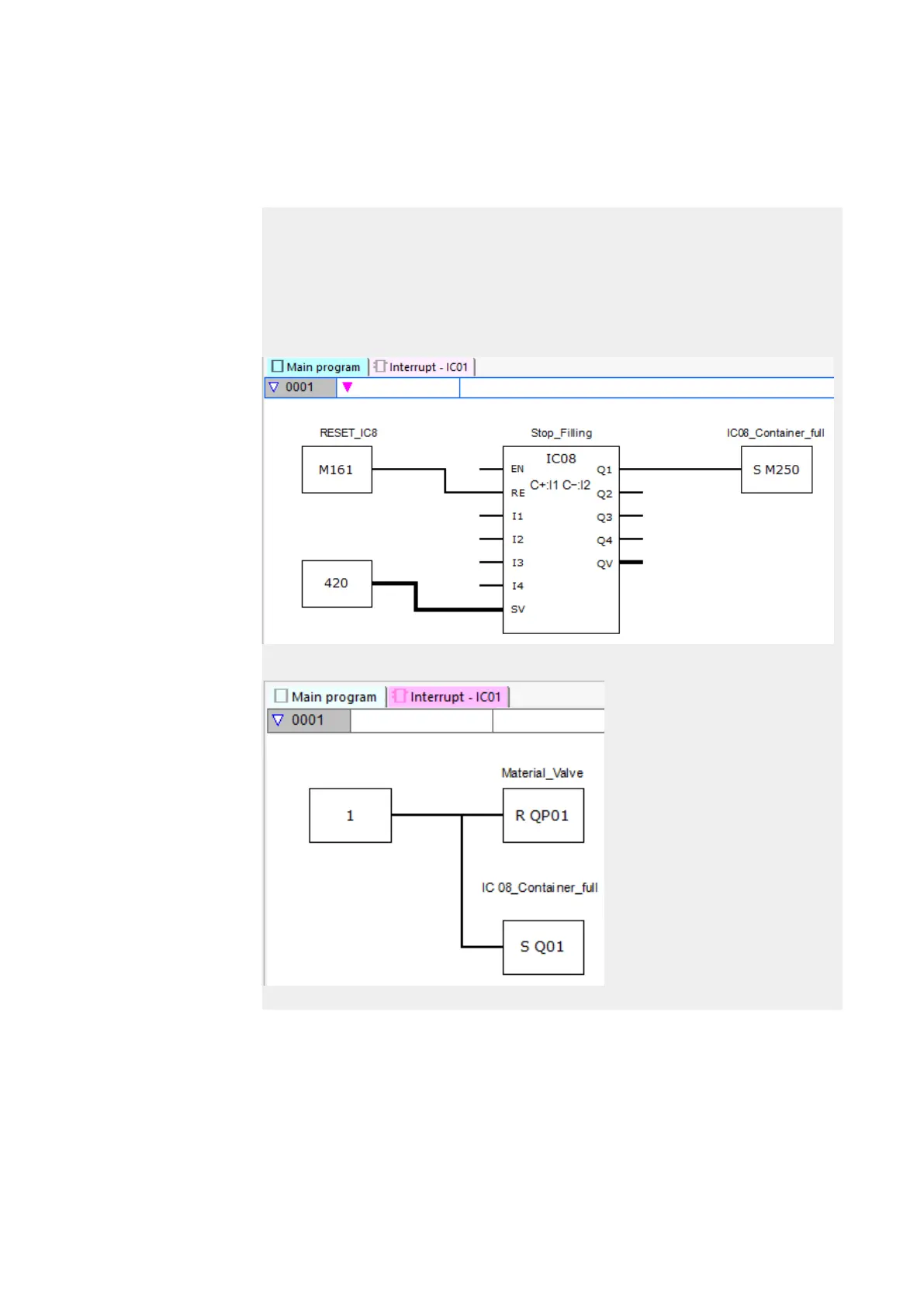

Figure 190: easySoft 7 main program
Figure 191: easySoft 7 interrupt program
414
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
