Eaton EASY-E4 Series User Manual

6. Function blocks
6.3 UF - User function block
Programming view

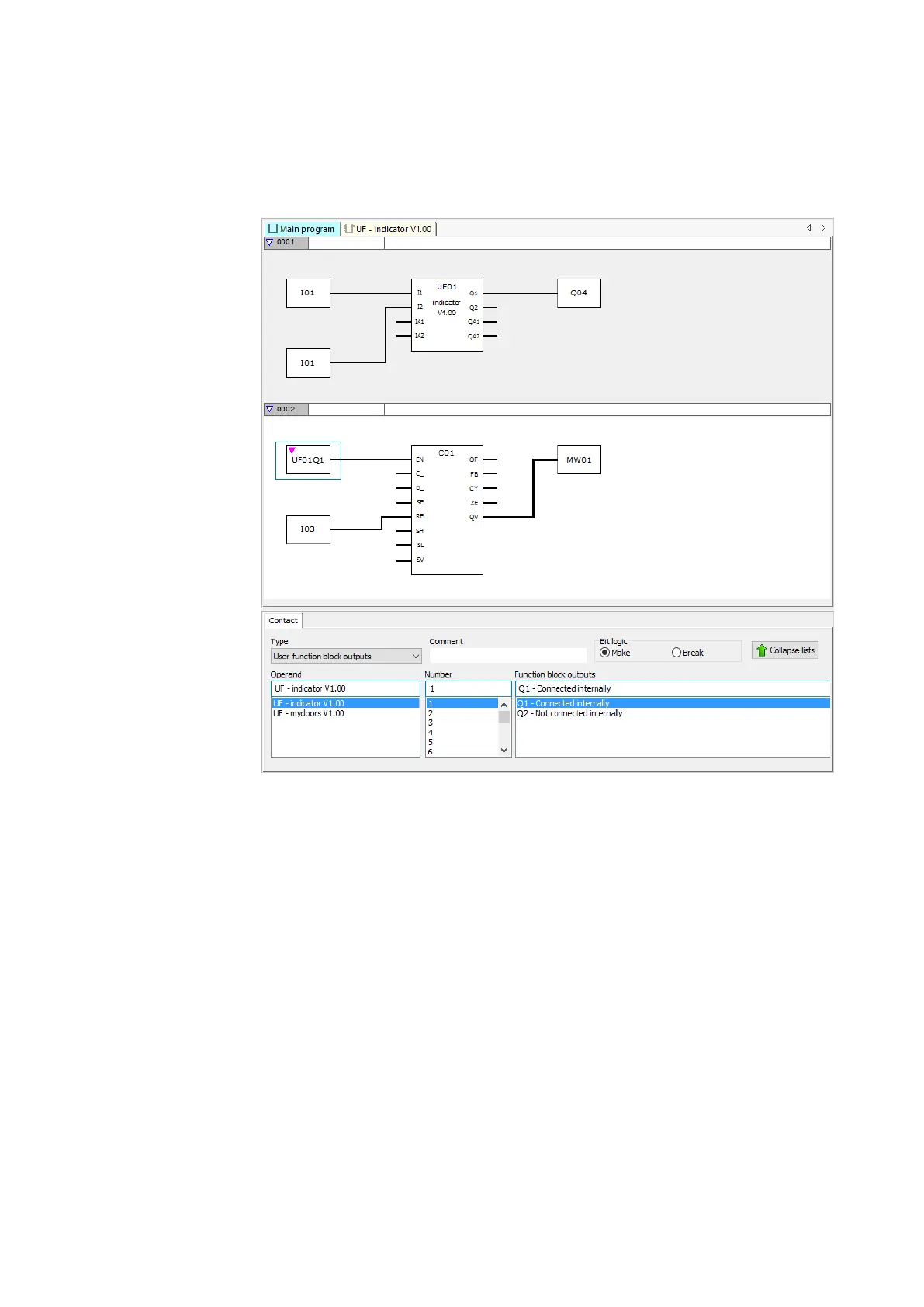

Figure 207: Inputs/outputs wiring
User function block inputs and outputs can be copied in the main program and pasted
the same way as those from any other operand.
If a user function block call is copied and pasted, the new call will be assigned the next
free instance number.
All the user function blocks used in a project's main programs will be part of the project
file and will be saved together with the project.
If there are any user function blocks, the tabs will change accordingly:
442
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
