8. microSD memory card
8.1 Automatic booting from the card
You can use Explorer to check the contents of the microSD memory card. It should now
contain both the transferred program and the BOOT.TXT file.

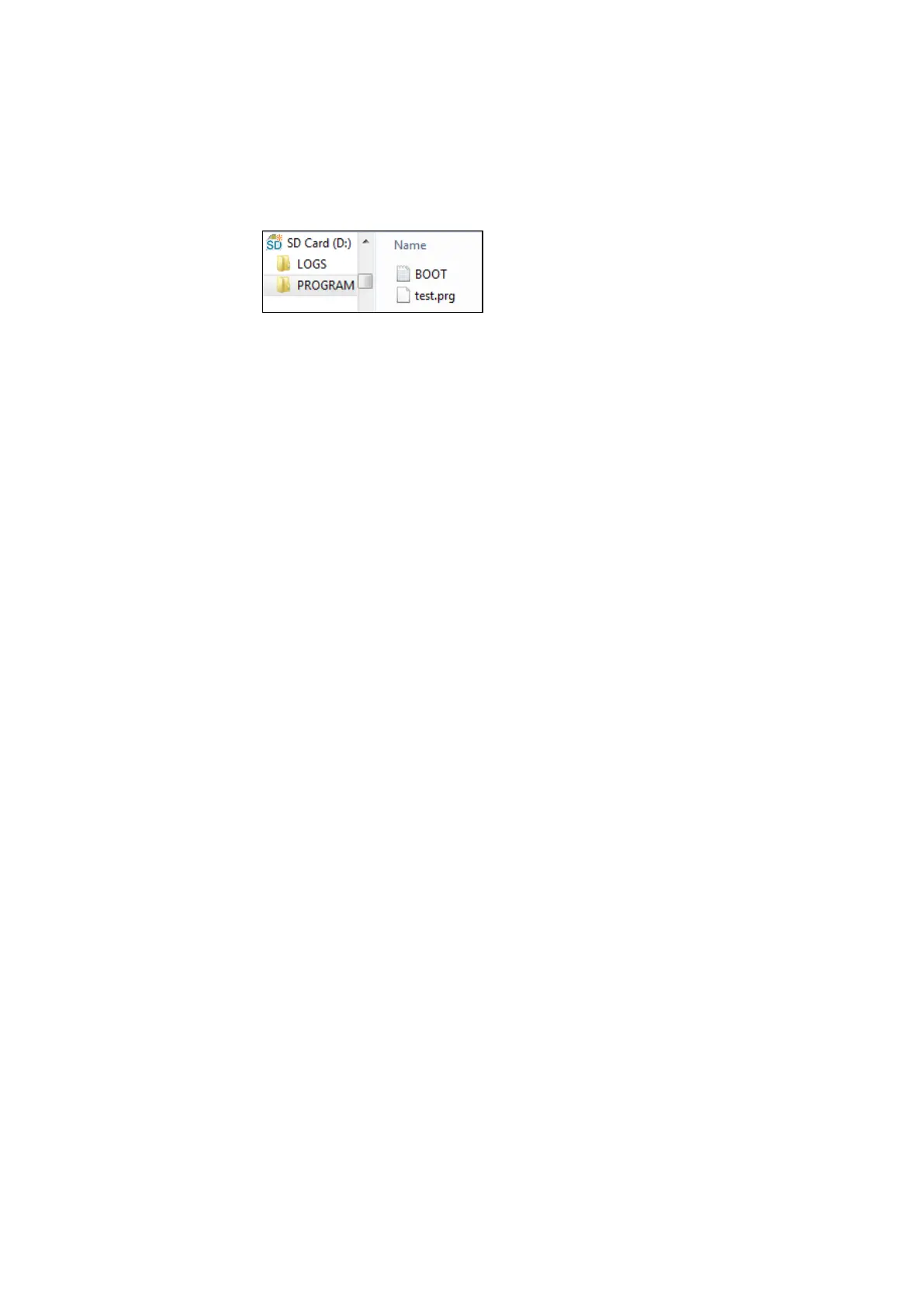

Figure 234: microSD memory card drive with PROGRAM folder contains BOOT.TXT and compiled test.-
prg program
The card is now prepared with all the prerequisites for booting. You can now use auto-
matic booting from the card – please refer to → "", page 488.
494
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
