4. Operation
4.2 Operating modes of the easyE4
The main menu on the display is used to switch between operating modes, i.e., from
RUN to STOP and vice versa,→ Section "STOP RUN operating mode menu", page 95
If a program has not been stored on the easyE4, it will not be
possible to switch to RUN mode.
It will not be possible to do configuration work either.
In order to configure it, the program must be stopped.
STOP✓ RUN
Operating mode changes may be protected with a password.

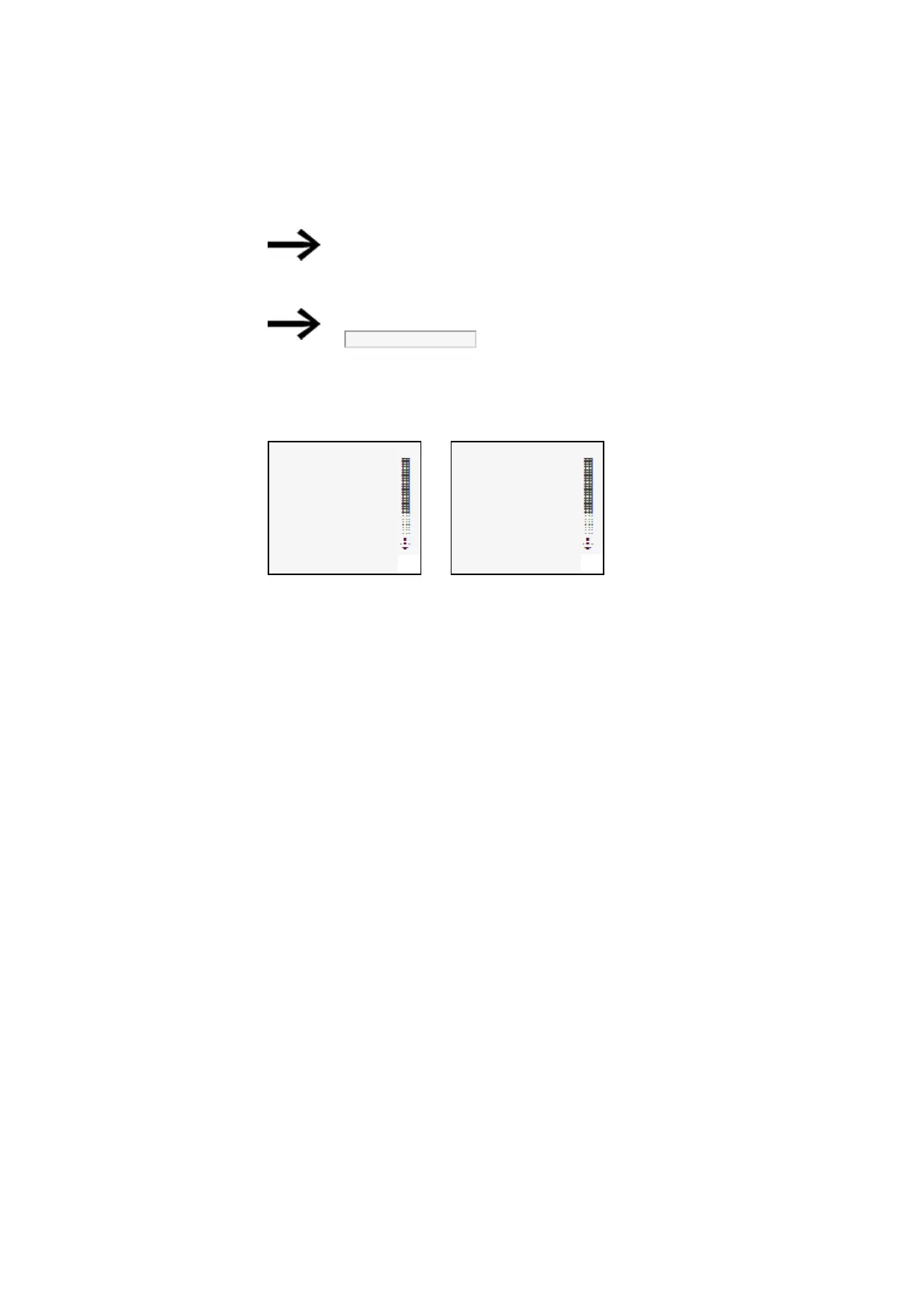

Ongoing operation To work on the easyE4
STOP RUN ✓
PARAMETERS
SETCLOCK
CARD
INFORMATION
SYSTEM-OPT.
PROGRAM
Table 5: Main menu
STOP ✓ RUN
PARAMETERS
SETCLOCK
CARD
INFORMATION
SYSTEM-OPT.
PROGRAM
Table 6: Main menu
92
easyE4 11/18 MN050009 EN www.eaton.com

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
