Eaton easyE4 User Manual

3. Commissioning
3.3 Switch on
Line 4


Q
Outputs; the number will be shown during activity (1, 2, 3, etc.)

RUN/STOP
Current device operating mode
Line 5
The device's MAC address or device name;
displayed only if a name has been assigned
Line 6
IP address; displayed only if an address has been assigned
Status indicator 2

Displays set diagnostic bits ID1 through ID24:
state display with "0" and "1" for each bit
Line 1
Bit number for each block
Line 2
ID 1 ... ID 8:
Line 3
ID 9 ... ID 16
Line 4
ID 17 ... ID 24
Line 5
Free
Line 6
Current device operating mode
Press the ALTbutton.
Shows additional indicators.


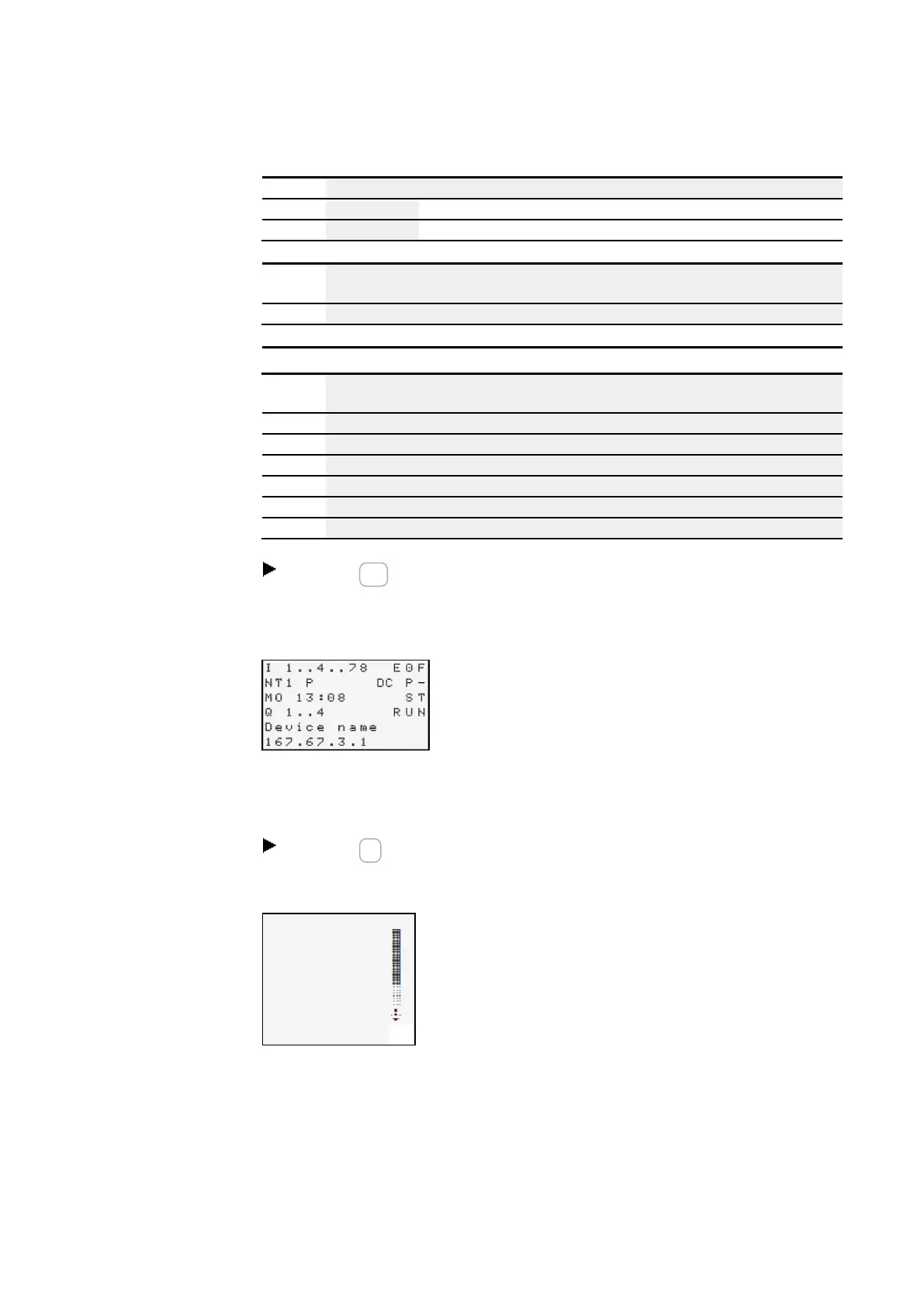

Fig. 63: Example of status display on display
You can use the main menu from the status display in order to access the individual
submenus.
Press the OK button.
The main menu will appear.
STOP ✓ RUN
PARAMETERS
SET CLOCK
CARD
INFORMATION
SYSTEM OPTIONS
PROGRAM
Tab. 8: Main menu
See also
 → Chapter "3 Operation", page 153
112
easyE402/24 MN050009ENEaton.com
