Eaton easyE4 User Manual

1. Description of easyE4 control relay
1.10 Engineering
L
N
100 nF/275 V ~
1 kΩ
F1
L N N I1

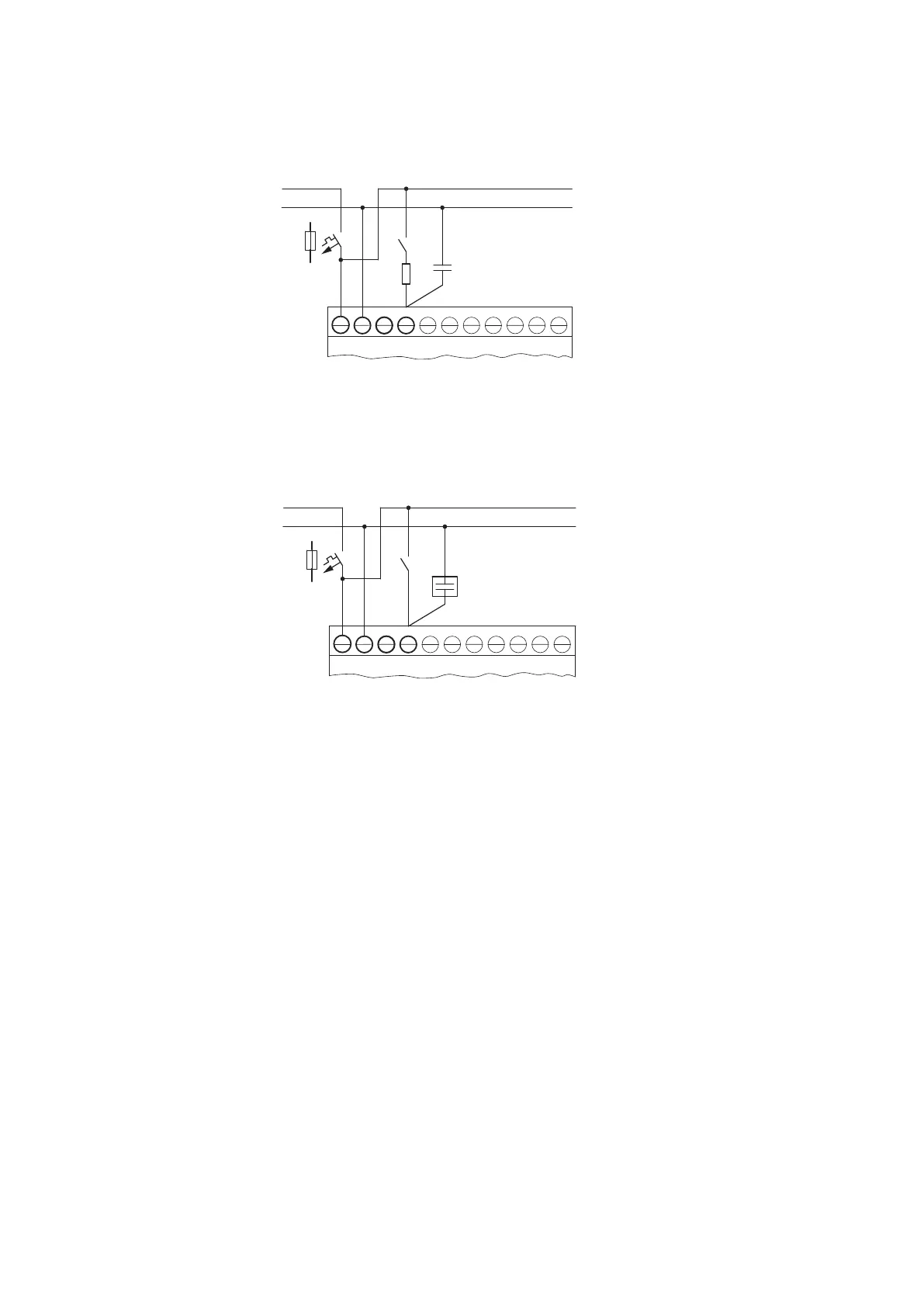

Fig. 7: Limitation of the input current through resistors
As an alternative to the condenser, you can use the M22-XLED230-T ballast (item no.
231080). It includes a 150 nF condenser in series with a 2k resistor and this increases
the current by 9.9 mA at 230 V/50 Hz and by 6.5 mA at 115 V/60 Hz. The decay time of
the input increases by 140 (70) ms at 230 (115) V.
L
N
M22-XLED230-T
F1
L N N I1
1
2
Fig. 8: An increase in input current with M22-XLED230-T
For the M22-XLED-T as well as for the M22-XLED230-T, adapter clip M22-TC (item
no.216398) can be used for installation on a DIN rail.
easyE402/24 MN050009ENEaton.com
49
