6.1.5.2 BT - Block transfer
The block transfer function block is used to transfer values from one marker range to
another (copy data). The marker ranges can be overwritten with a particular value
(data initialization). The following marker types can be transferred and overwritten:
MB, MW and MD.
General

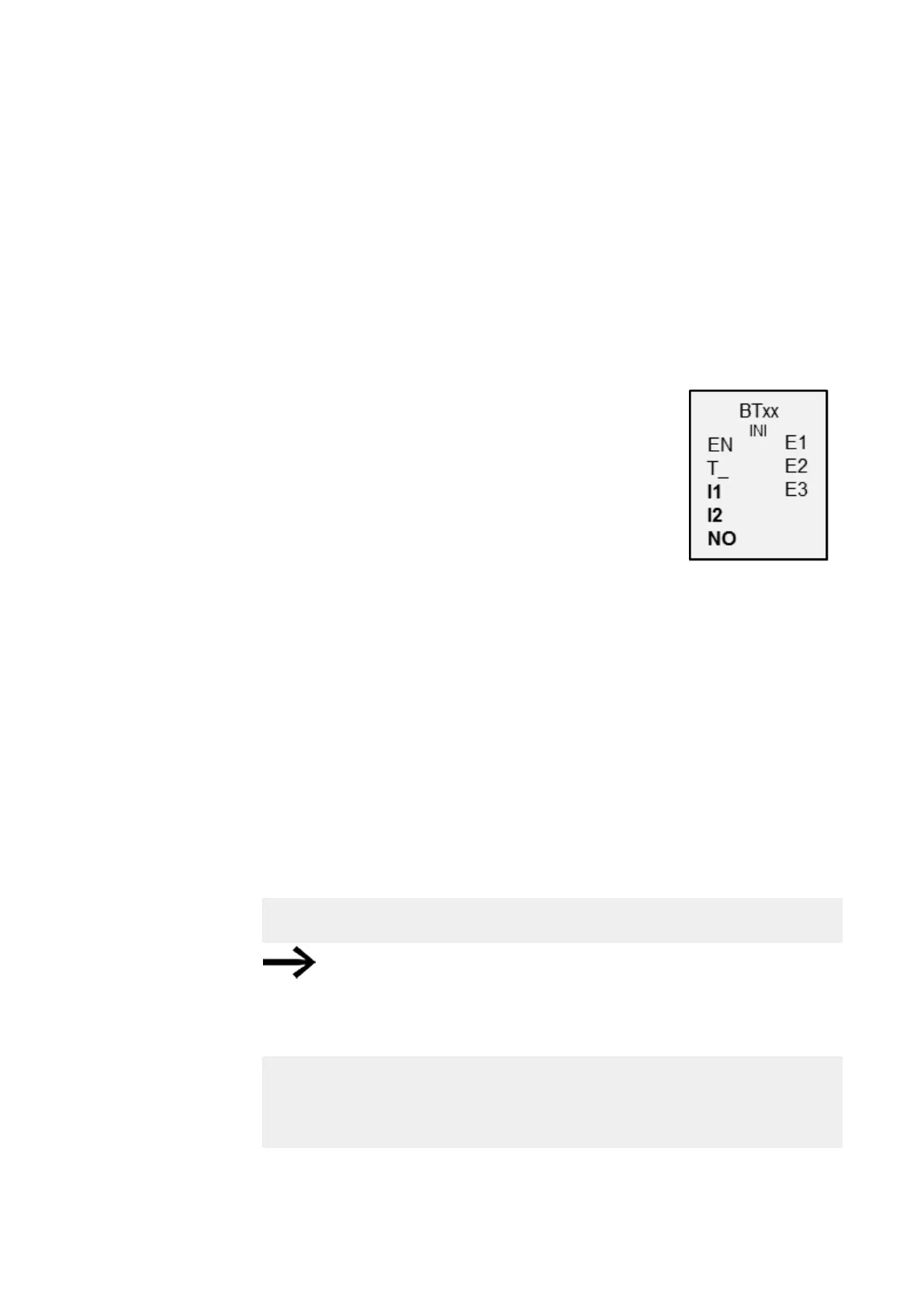

easyE4 base devices provide 32 Block Transfer function
blocks BT01...BT32.
The block transfer function copies values from one marker
range to a different, contiguous market range when the CPY
(copy) operating mode is enabled. The source range and tar-
get range are allowed to overlap.
When the INI (initialization) mode is enabled instead, the
function block copies the content of a marker byte to a dif-
ferent, continuous marker range.
The transfer is carried out bytewise.
Operating principle
Data is transferred from the source address specified at function block input I1 to the
destination address specified at function block input I2. The NO input is used to spe-
cify the size of the data block in bytes.
Transfer with offset
The source address for the copy or initialization is specified at function block input I1,
while the destination address is specified at function block input I2. Within this con-
text, the numeric value of the operand at runtime will be interpreted as the offset to
be added to marker byte MB01.
Example with a value of "0"
A value 0 at input I1 means that the source data block for the transfer starts at MB01.
A value 10 at I2 means that the destination address for the transfer starts at MB11.
With the offset information you can address marker ranges
(for example MB380), which you can not address when using
marker operands (direct addressing).
Marker byte example
You wish to transfer the content of marker bytes MB1-MB4 with the content of
marker bytes MB381-MB384 (MD96). A value 0 at input I1 means that the source data
block for the transfer starts at MB01. A value 380 at I2 means that the destination
address for the transfer starts at MB381.
