6.1.1.4 RC - Real-time clock
General
easyE4 base devices provide exactly one real-time clock RC01.
This function block can be used to read the date and time value of
the device's real-time clock. This value is output in seven indi-
vidual parameters than can each be processed further indi-
vidually. This makes it very easy to select recurring events with a
downstream comparator function block.
Operating principle
If the function block is enabled, the date and time value from the device's real-time
clock will be output at the function block outputs: YY (year), MM (month), DD (day),
WD(day of the week), HR (hours), MN (minutes), SC (seconds).
Function block output DT signals whether the clock has been switched to daylight
saving time.

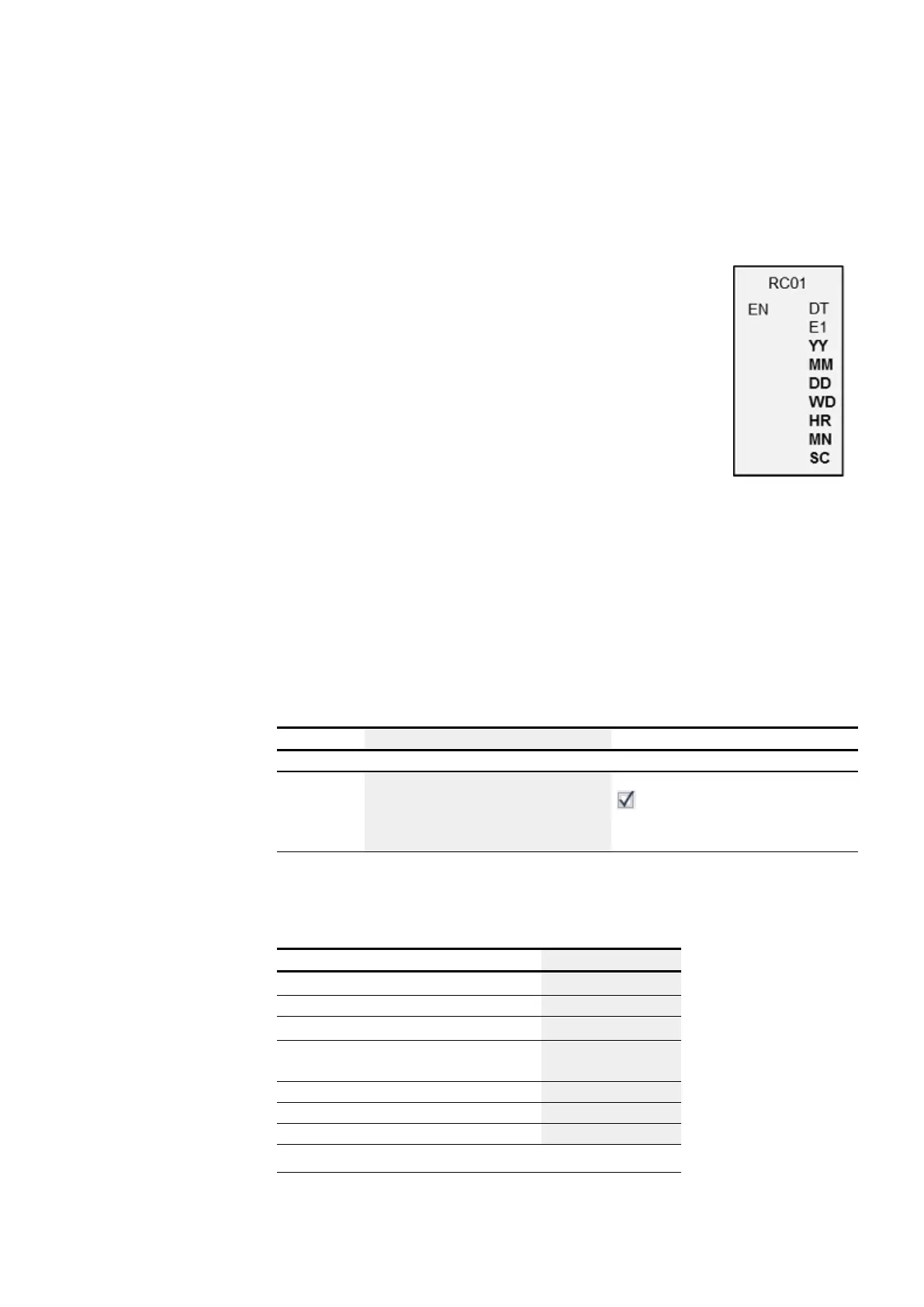

The function block and its parameters
Function block inputs
 Description Note
(bit) 
EN
1: Activates the function block.
The checkbox for the
Function block release by EN is neces-
sary
parameter must first be enabled
Assigning operands
You can assign the following operands to the function block inputs that are numeric
inputs.
Operands Value inputs
Constant, timer constant
1)
x
MD, MW, MB - Markers
x
NB, NW, ND - NET markers
2)
x
nNB, nND, nND- NET markers
2)
NET station n
x
IA - Analog input
x
QA - Analog output
x
QV - QV - Numeric output of a FB
x
1)
Only on function blocks T, AC
2)
Only on projects with ≥ 2 base devices on NET
