5. Programming on the device
5.4 Working with contacts and coils


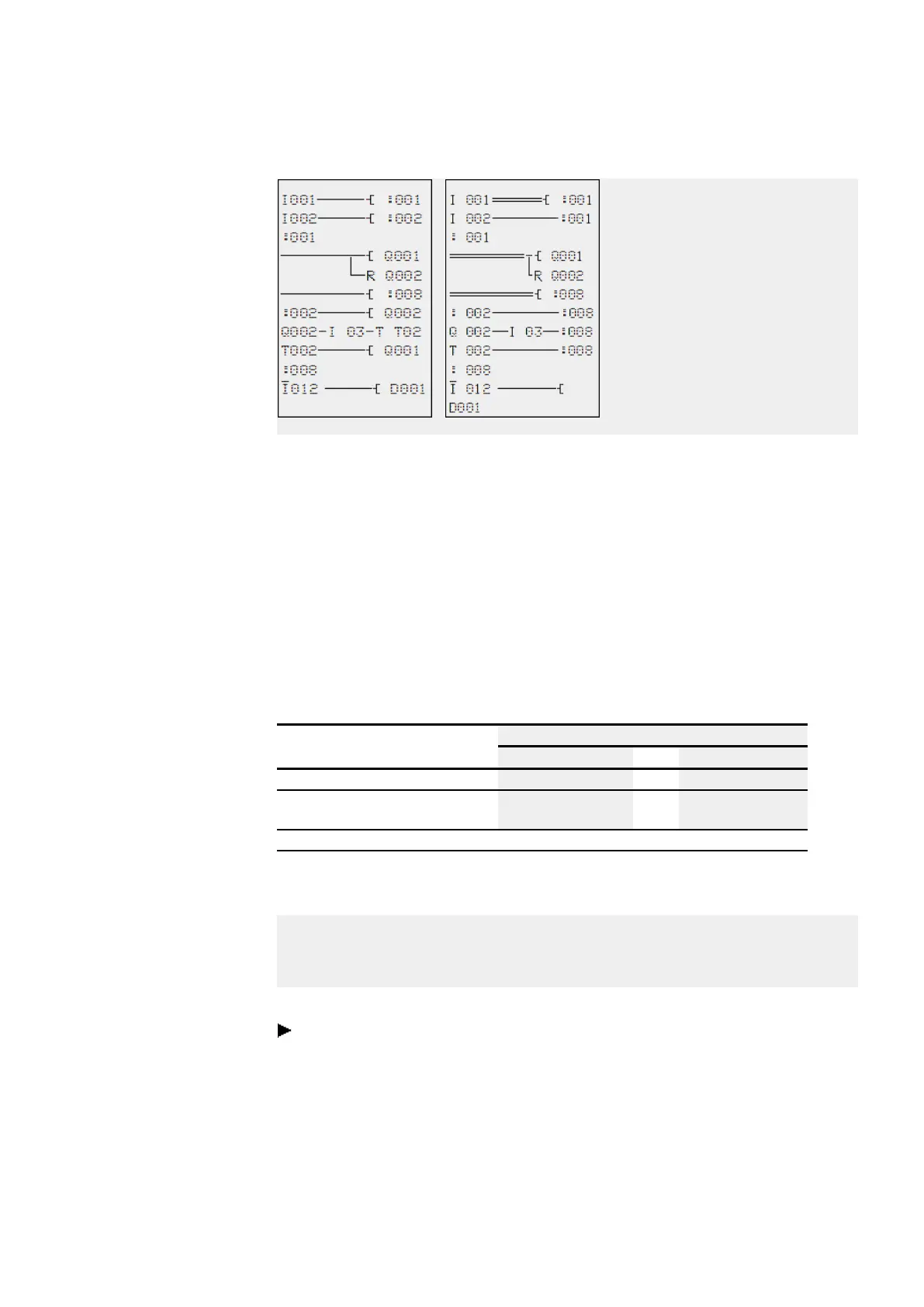

Range from jump label 1 processed.

Jump to label 8.
Range to jump label 8 skipped.

Jump label 8,
circuit diagram processed from this point on.
5.4.16 Wiring NET operands in the circuit diagram
A NET with several stations always allows the reading of all inputs and outputs. This
is possible regardless of whether a circuit diagram is being processed or not on the
NET station to be read. The inputs and outputs are addressed in the NET by using the
preceding NET-ID of the station. The inputs and outputs of a NET station are iden-
tified with nI.. and nQ.
The permissible access by stations to the inputs and outputs of other stations
depends on the operating mode of the devices on the NET, in which the following
applications are possible:

Operating devices on the NET
Usable NET operands of data type…
Bit Byte 32 Bit (DWord)
NET marker nN.. nB.. nW.., nD...
All NET stations each process a circuit
diagram.
nI.., nR.., nQ.., nS..,
nRN.., nSN...
 
n = NET-ID
Wiring a contact or coil of another NET station in the circuit diagram
Prerequisites
You must have selected an I.., Q.., R.., RN.., or SN.. operand in the circuit diagram
and be in input mode.
This mode is displayed by a flashing operand.
Use the cursor button ú to move the cursor to the position to the left of the oper-
and. A flashing zero appears as the initial value.
easyE402/24 MN050009ENEaton.com
209
