2. Installation
2.4 Connection terminals
2.4.8 Connecting analog I/O expansion devices
The analog inputs in expansion EASY-E4-DC-6AE1(P) cannot be used as digital
inputs.
The EASY-E4-DC-6AE1(P) features four analog inputs and two analog outputs. You
can use easySoft 8 to set the operating mode for each analog input and analog out-
put.
The following options are available:
Resolution, analog Resolution, digital Value
0 – 10 V
12 bits
0 - 4095
4 – 20 mA
12 bits
819 - 4095
0 – 20 mA
12 bits
0 - 4095
For all analog inputs, you can configure noise suppression, averaging, and an update
rate in easySoft 8.
Project view

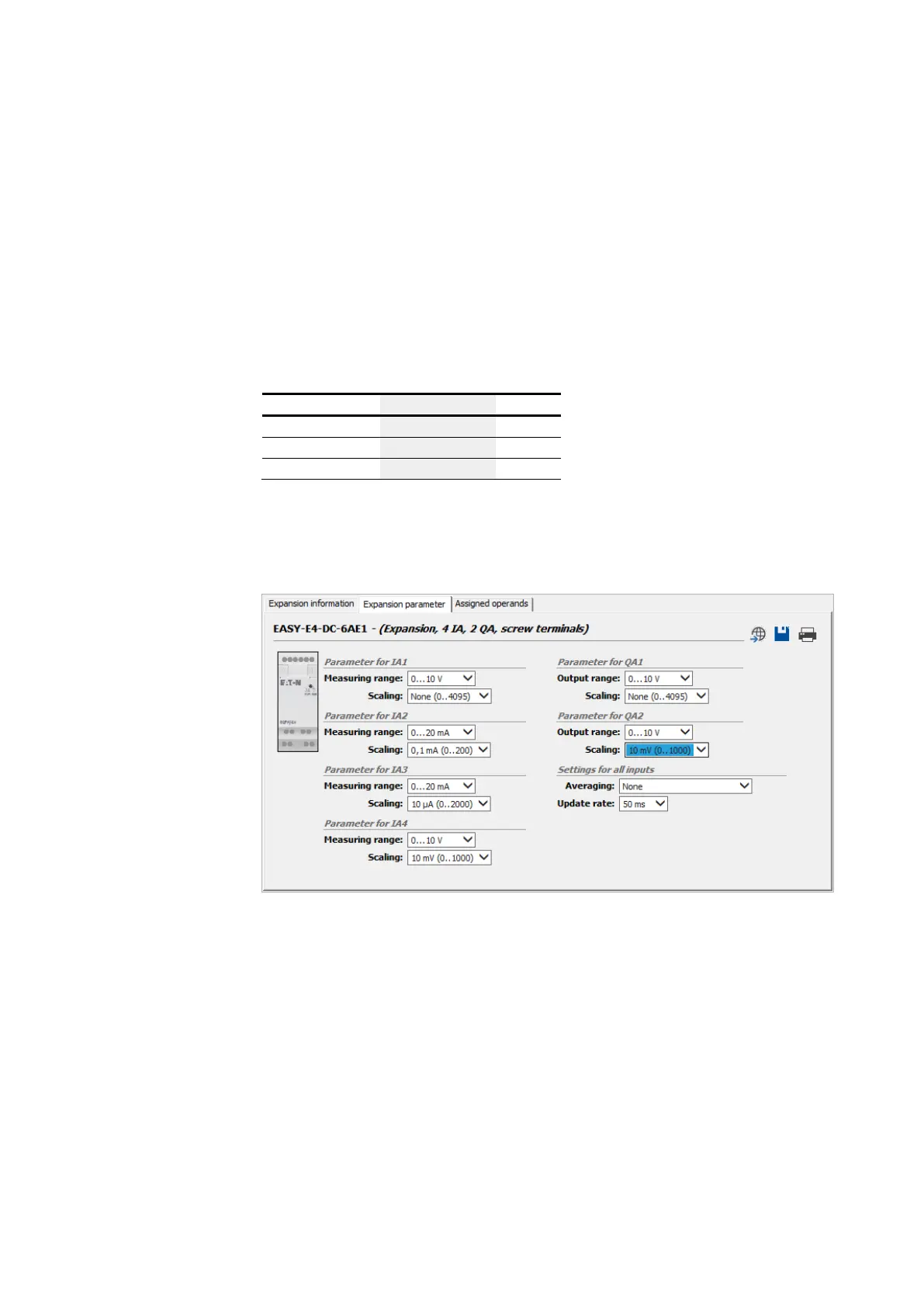

Fig. 27: Device parameters tab, using the EASY-E4-DC-6AE1 as an example
78
easyE402/24 MN050009ENEaton.com
