6. Function blocks
6.1 Manufacturer function blocks

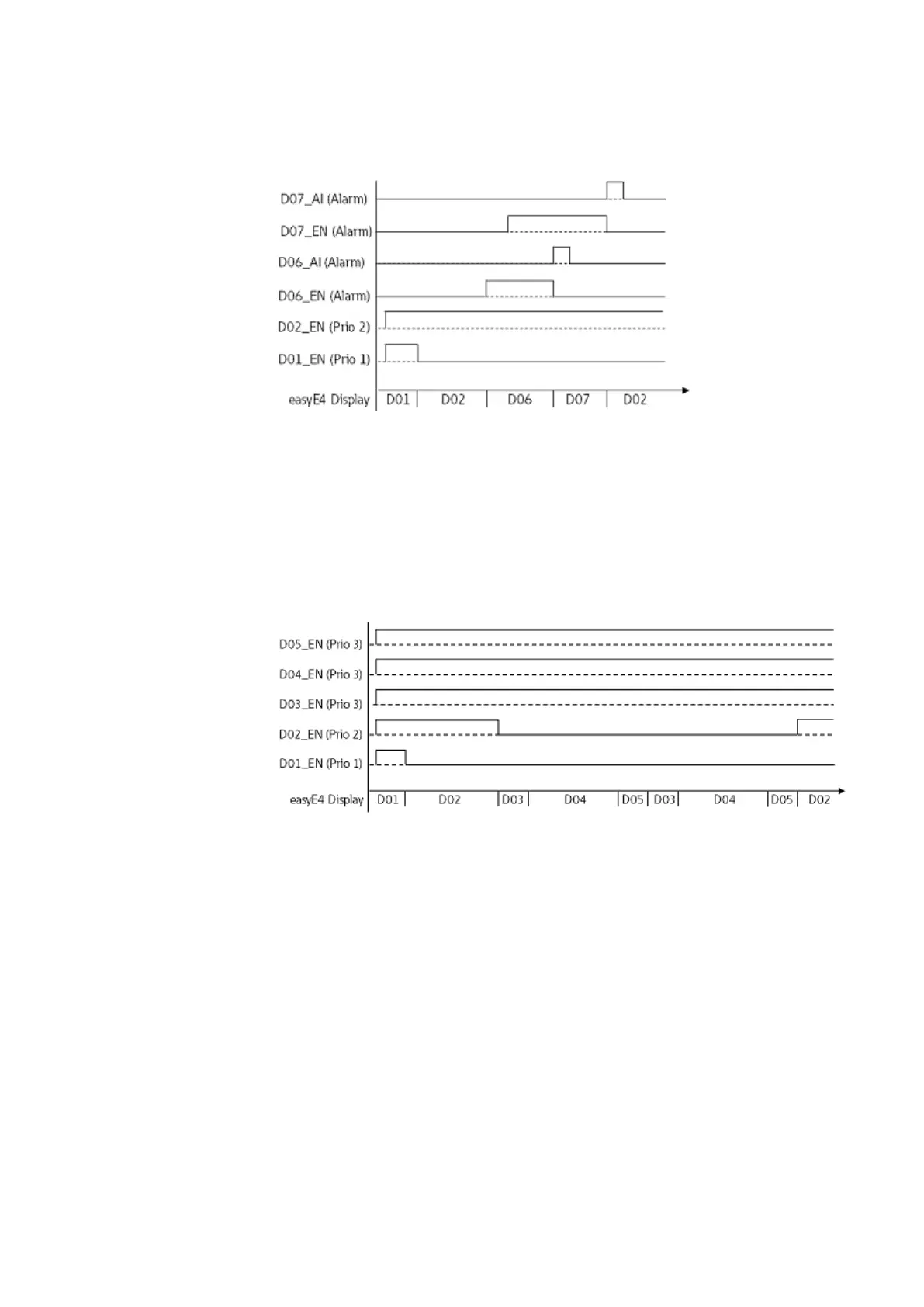

Fig. 225: Signal diagram Text display
Signal diagram for text displays with identical priorities
Text displays D03, D04, and D05 all have the same priority of 3. They will accordingly
be displayed according to their configured rolling time as soon as no other text dis-
plays with a higher priority are enabled. In other words, D01_EN must be 0 and D02_
EN must be 0 for this to happen in the example below. D03, D04, and D05 will be dis-
played in alternating order until a text display with a higher priority is enabled, e.g.,
D02_EN=1.
Fig. 226: Signal diagram for text display with text function blocks with an identical priority of 3
Rolling time: D03 = 1s; D04 = 3s; D05 = 1s
easyE402/24 MN050009ENEaton.com
481
