6. Function blocks
6.1 Manufacturer function blocks

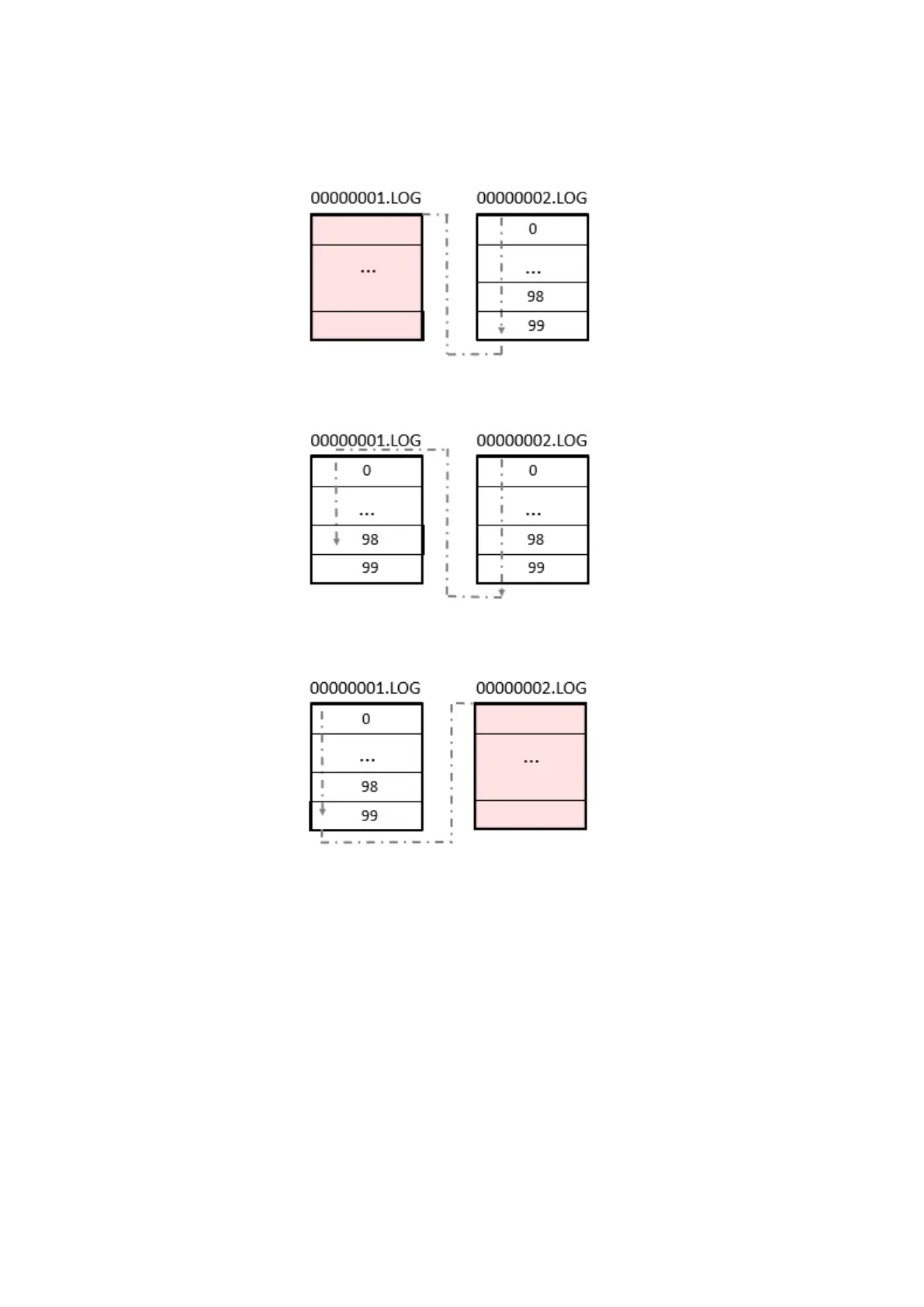

3. The next data set is entered in 00000001.LOG. 00000002.LOG remains
unchanged.
4. Writing continues in 00000001.LOG and when data set 99 is written,
00000002.LOG is prepared for the next data set.
The process then starts again with step 1.
This means that the 100 oldest data records can be read out safely. In this mode,
logging will always be running, i.e., the log session will not be terminated auto-
matically.
Also see → Section "Example of data logger as a ring buffer", page 512
l
Up until number of log files is reached
As many log files are set up in succession in a folder until the value set in the
Number of files per log session parameter is reached.
The logging process is then stopped, the log session is then ended and output RY
is set to 1. The name of the log files has 8 digits and is counted up starting from
00000001.log.
510
easyE402/24 MN050009ENEaton.com
