6. Function blocks
6.3 UF - User function block
Programming view

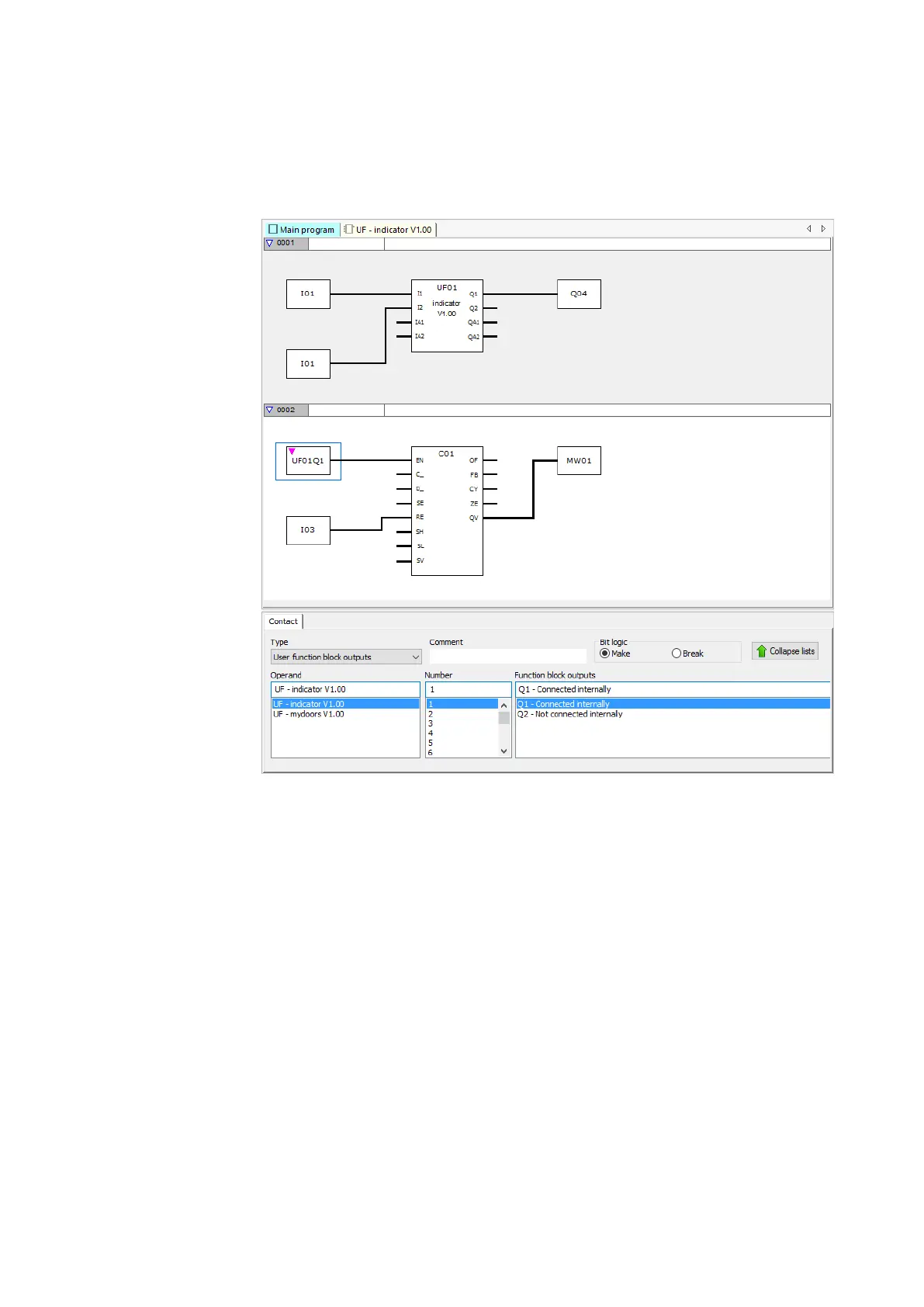

Fig. 278: Inputs/outputs wiring
User function block inputs and outputs can be copied in the main program and pas-
ted the same way as those from any other operand.
If a user function block call is copied and pasted, the new call will be assigned the
next free instance number.
All the user function blocks used in a project's main programs will be part of the pro-
ject file and will be saved together with the project.
If there are any user function blocks, the tabs will change accordingly:
600
easyE402/24 MN050009ENEaton.com
