10. easyE4 communication Connection to other devices
10.12 Setting up a NET group
10.12 Setting up a NET group
NET - a group
A NET is a group that is made up of up to eight stations and that uses a special pro-
tocol for the device series in order to allow for communications via Ethernet con-
nections.
The name "NET" refers to Ethernet/UDP-based communications between the easyE4
devices. It was designed specifically with the needs of straightforward transfers
between easyE4 devices in mind. Within a NET, every device has read access to the
NET operands of any other device in its group. In addition to this, data can be trans-
ferred both cyclically and acyclically.
Please note that nodes from different groups cannot communicate directly with each
other.
Between groups
If, however, you want devices to be able to communicate across groups, you will
need to use a coordinator device that controls the corresponding communication
with Modbus TCP.
A total of ten NET groups (groups 1 through 10) can be run on a single Ethernet net-
work at one time.
Ethernet network
↑
↑
↑
↑
↑
↑
↑
Module
Module
Module
Stations…
Module
Module
Module
NET-ID 1
NET-ID…
NET-ID 8
NET-ID…
NET-ID 1
NET-ID…
NET-ID 8
NET group 1
NET group…
NET group 10
NET uses UDP protocols that send unconfirmed broadcast frames; accordingly, the
devices in the NET group must be located on the same subnet. Connections through
a router are not allowed, as broadcast frames will normally be unable to pass
through a router.

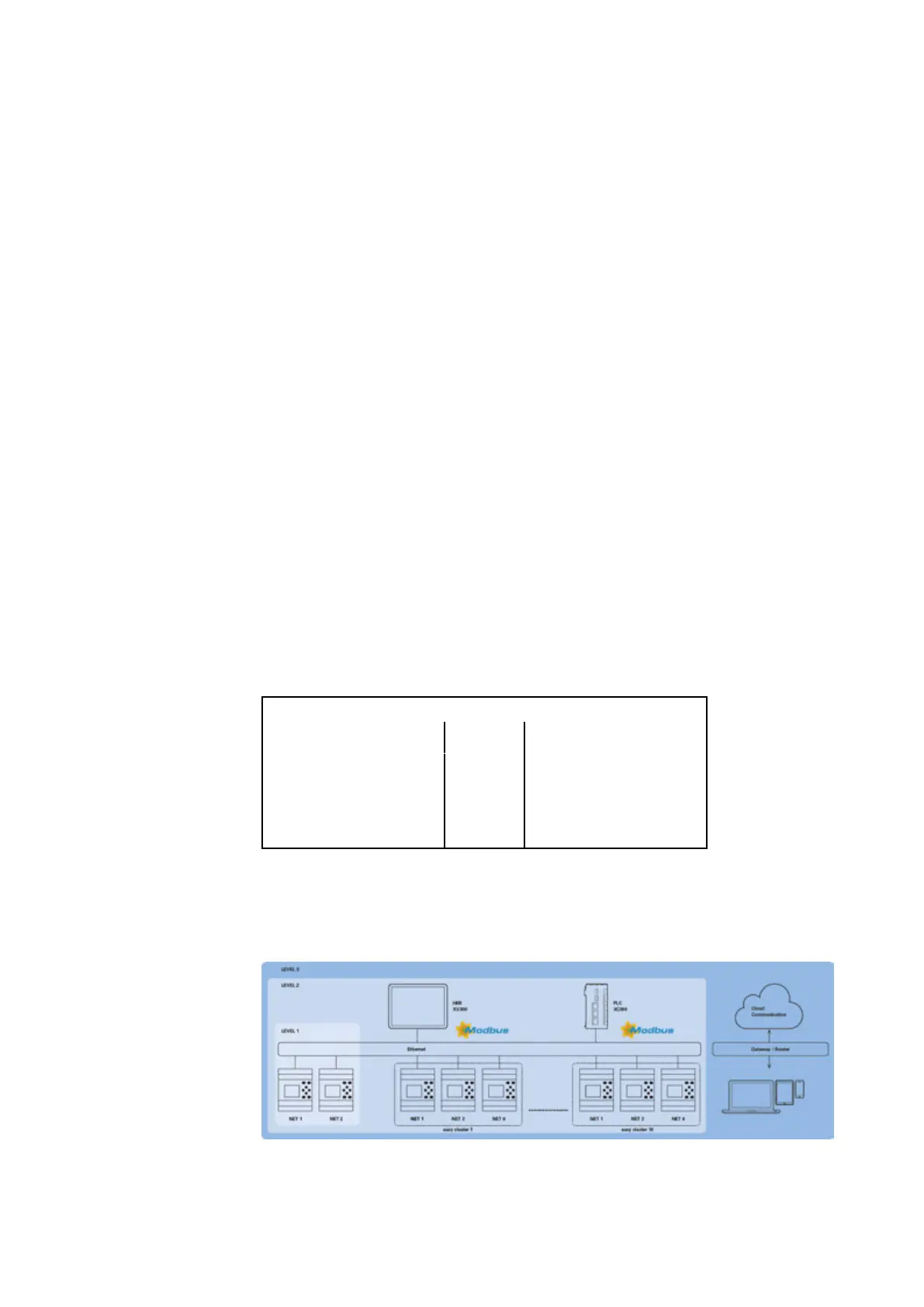

Fig. 317: NET diagram
706
easyE402/24 MN050009ENEaton.com
