Eaton easyE4

10. easyE4 communication Connection to other devices
10.16 easy communication modules
10.16.1.2 EASY-COM-SWD-… easy communication module
EASY-COM-SWD-…, with its connection to the easyE4 base device, acts as the
SmartWire-DT coordinator on the SmartWire-DT line.
EASY-COM-SWD-… combines the functionality of an easyE4 with direct connection
to SmartWire-DT communication system.
The easy communication module is where the SmartWire-DT line starts and has a
connection to the 8-pin SmartWire-DT ribbon cable used inside the control panel in
order to connect the SmartWire-DT modules. In addition to communication and con-
trol wires, this SmartWire-DT ribbon cable also carries the supply voltages for con-
nected SmartWire-DT modules (15V
DC
) and optionally used switchgear (24V
DC
).
These two supply voltages are supplied through the EASY-COM-SWD-… module via
the POW and AUX connection terminals.

①
⑧
POW / RUN
Co
nfig
SWD
+24 V
A
U
X
Config
P
O
W
0 V
+24 V 0 V
SWD OUT
②
⑥
③
⑦
⑤
④
⑨

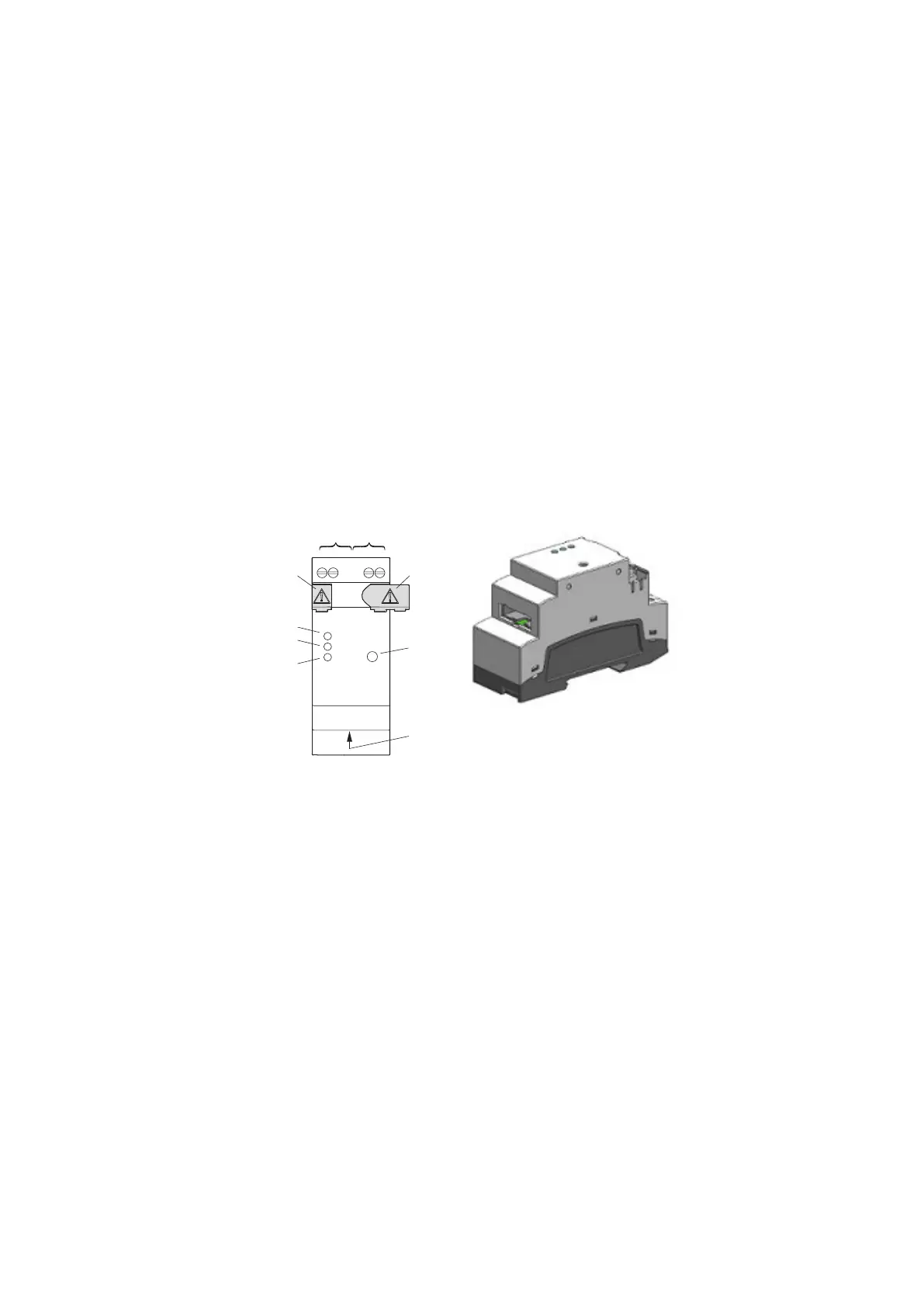

Fig. 341: Device model with 2SU

①
POW power supply

④
LED Config

⑦
SWD OUT connection socket
②
AUX power supply
⑤
LED POW/RUN
⑧
Covering cap
③
Button Config
⑥
LED SWD
⑨
Bus connector plug
Installing a SmartWire-DT line involves the following steps:
1. Physically setting up the SmartWire-DT line
a. Installation in control panels
b. Installation in the periphery
c. Connecting external pilot devices
2. Commissioning the SmartWire-DT line
a. Configuring the SWD line
b. Testing the connected SWD modules
c. Connection to an easyE4 control relay
easyE402/24 MN050009ENEaton.com
755
