 Unpacking the Network module
Installing the Network Management Module – 10
•
•
•
•
2 Installing the Network Management Module
2.1 Unpacking the Network module
The Network-M2 will include the following accessories:
QuickStart
USB AM to Micro USB/M/5P 5ft Cable

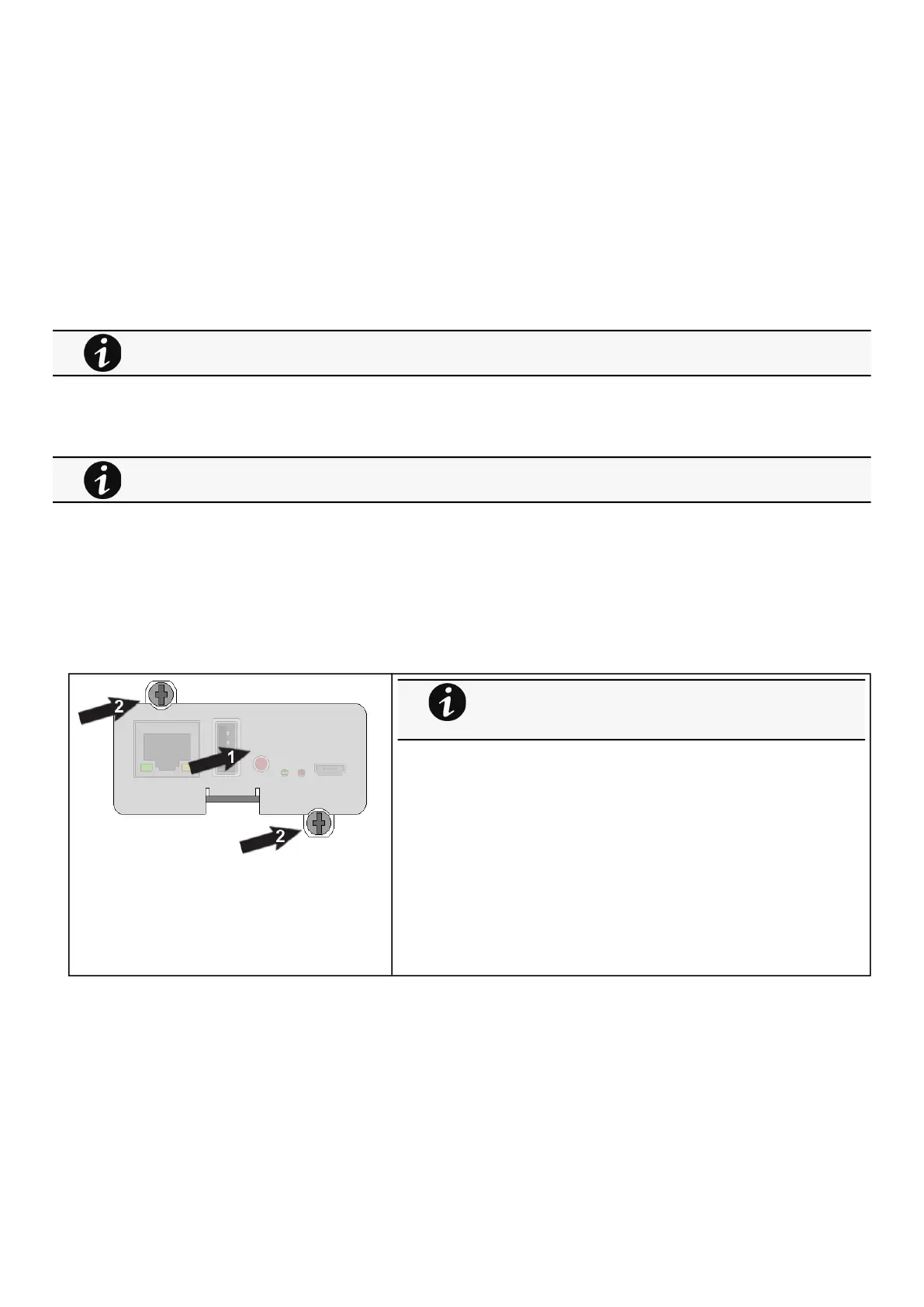

2.2 Mounting the Network Module
The Network Module is hot-swappable. Inserting and/or extracting the Network Module from the communication slot of theproduct
has no effect on the output.
Remove the two screws securing the option slot cover plate and store the plate for possible future use.
Install theNetwork Module along the alignment channels in the option slot.
Secure the Network Module using the two screws.
2.3 Wiring the RS-485 Modbus RTU terminal
The Modbus Network Module provides an easy path for integrating anEatonUPS into an RS-485 Modbus network and also
provides isolation of the communication between the UPS and the RS-485 Modbus network.
Use the terminal strip on the ModbusNetwork Module to wire into a two-wire network.
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
It is not necessary to power down theDevice before installing the Network Module. Required tools: No. 2 Phillips
screwdriver.
If theproduct is powered up, you can verify that the Network
Module is seated properly and communicating with theproduct by
checking that the Status ON LEDflashes green after 2 minutes.

Eaton Network-M2 Specifications

General

Type	Network Management Card
Ports	1 x RJ-45 Ethernet port
Communication	Ethernet
Weight	0.1 kg (0.22 lbs)
Compatibility	Eaton UPS systems
Network Protocols	HTTP, HTTPS, SNMP
Security	Password protection
Management	Web-based interface, SNMP
Power Source	Powered by the UPS
Operating Temperature	0°C to 40°C (32°F to 104°F)
Certifications	CE, FCC, RoHS
