Wiring the RS-485 Modbus RTU terminal
Installing the Network Management Module – 13
2.
3.
Peel off the protection:


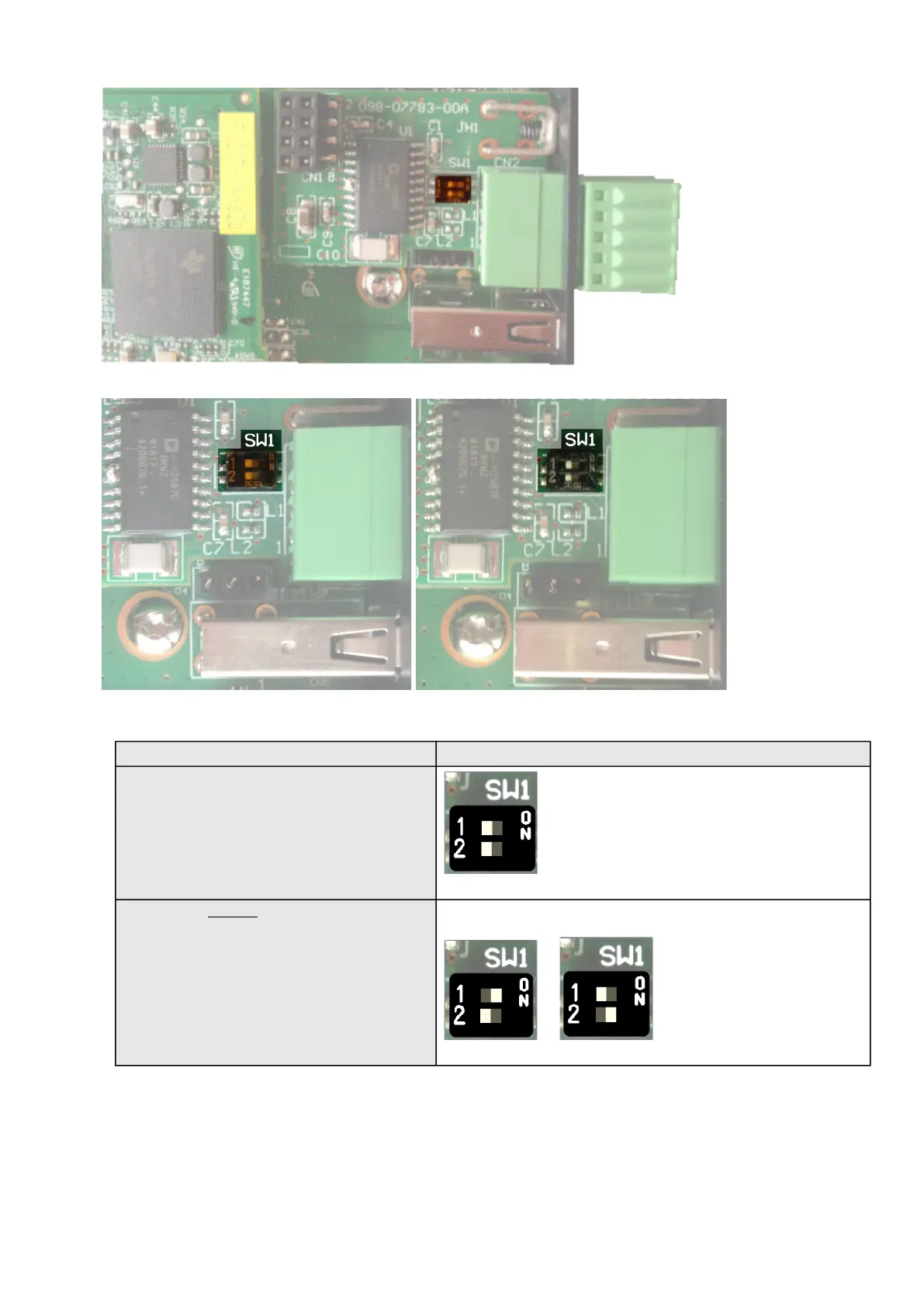

Change the position of the termination switch according to your needs:
Switch position
No termination (default)

Termination for two-wire networks One of the two position below can be used:
or
