Or
Incompatible
NMS Version
Security).
All access points must have the same
firmware version. Please use the AP
Controller’s firmware upgrade function
(refer to X-5-12 Firmware Upgrade).
Orange
Configuring or
Upgrading
Please wait while the Managed AP makes
configurations or while the firmware is
upgrading.
Yellow
Connecting
Please wait while Managed AP is
connecting.
Green
Connected
Managed AP is connected.
Blue
Waiting for
Approval
Managed AP is waiting for approval. Note:
Up to sixteen Managed APs are supported.
Additional APs will have this status until an
existing Managed AP is removed.

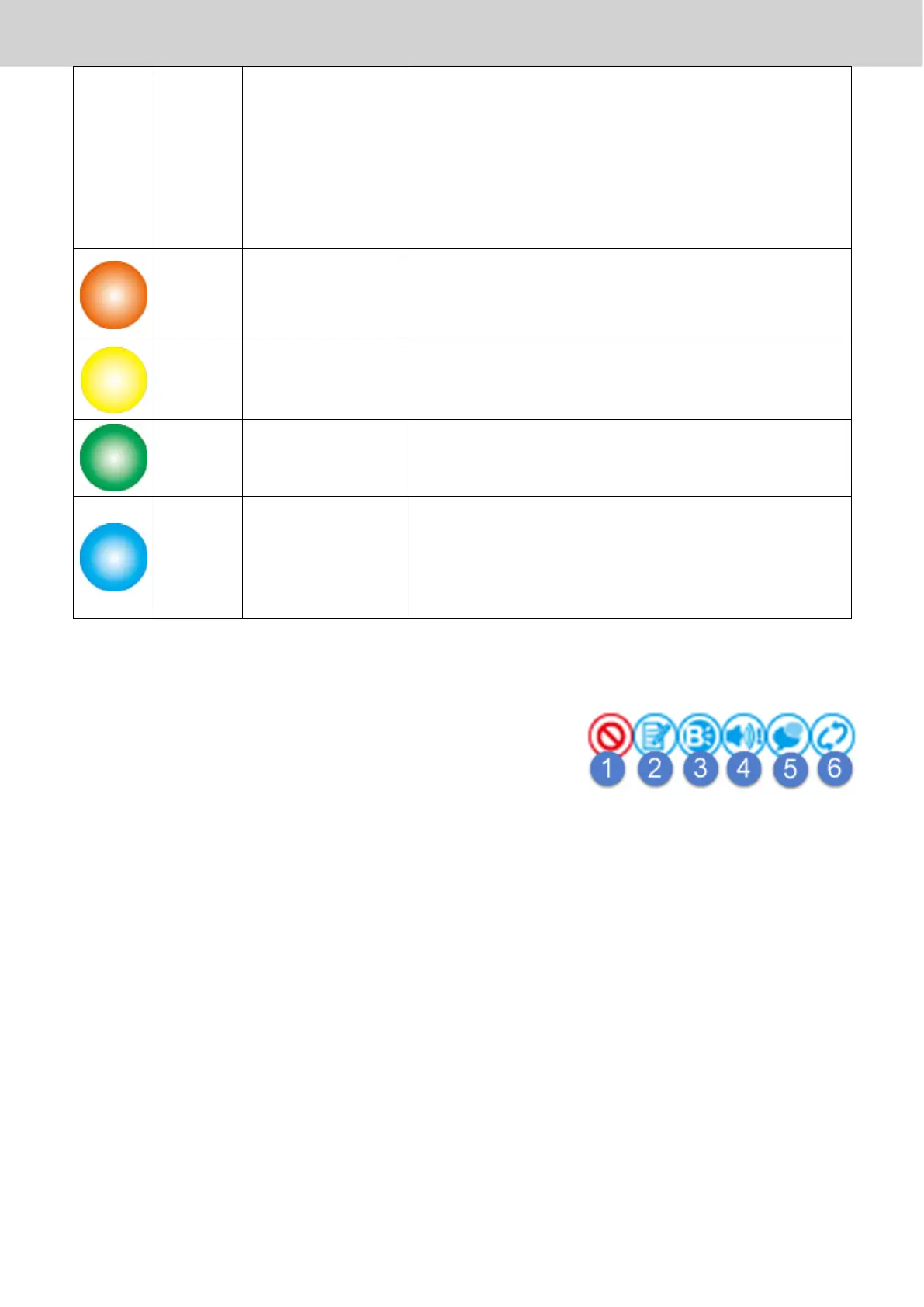

Each Managed AP has “Action” icons with the following functions:
1. Disallow
Remove the Managed AP from the AP array and disable connectivity.
2. Edit
Edit various settings for the Managed AP (refer to X-5-1 Access Point).
3. Blink LED
The Managed AP’s LED will flash temporarily to help identify & locate
access points.
4. Buzzer
The Managed AP’s buzzer will sound temporarily to help identify & locate
access points.
