II-2-3 T-Rail Mount

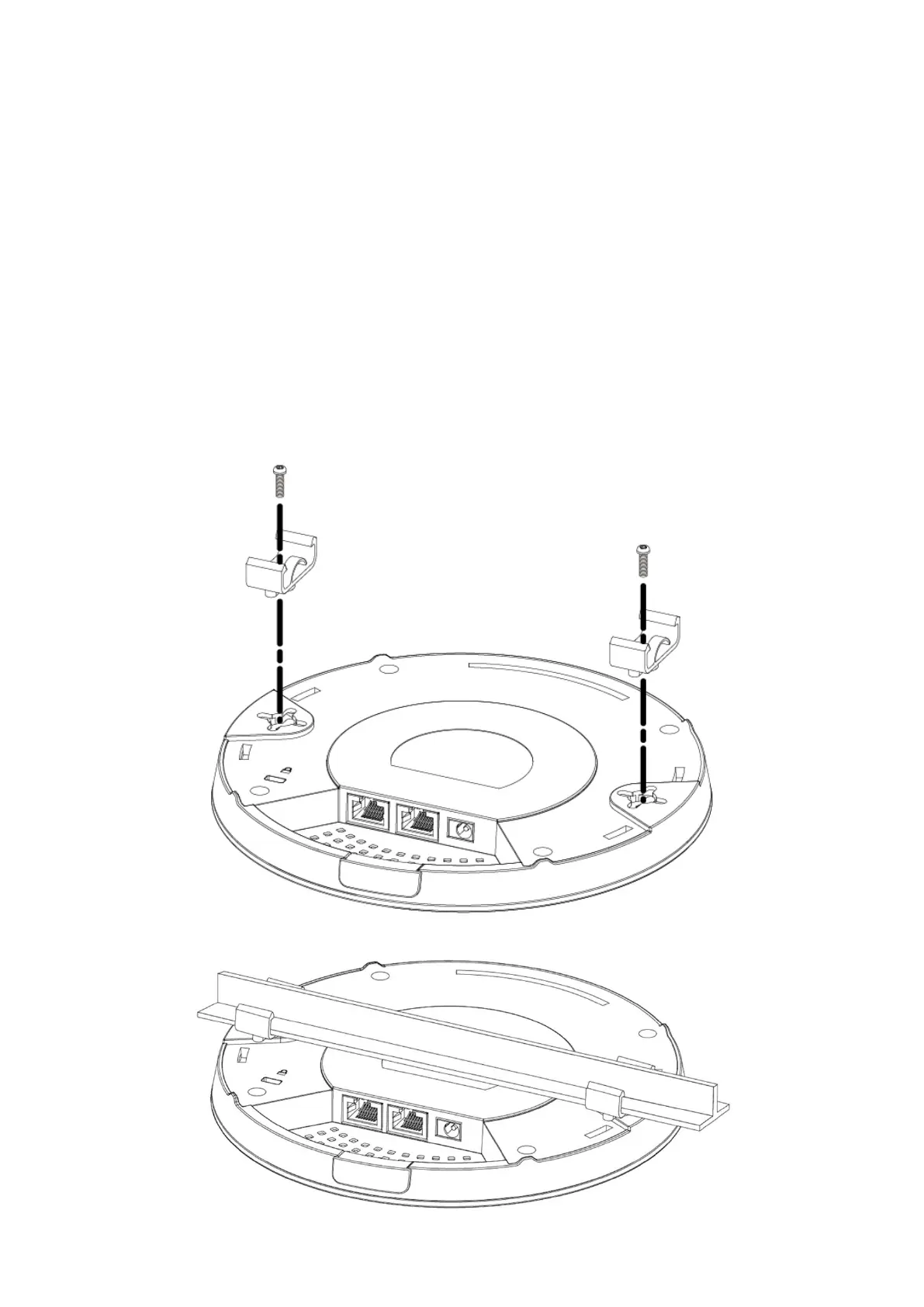

To mount the device to a T-Rail, please follow the instructions below and refer
to the diagrams below.
1. Select the correct size T-Rail bracket included in the package contents.
2. Attach the selected T-Rail brackets A to holes B using bracket fixing
screws C.
3. Clip the device onto the T-Rail D using the now attached T-Rail brackets
A.
A
A
C
C
B
B
D
A
A
