ELAN HOME SYSTEMS
SYSTEM12 INSTALLATION MANUAL
Page 12 © ELAN Home Systems 2004 • All rights reserved.
Applications
This section describes typical applications using
the S12 in audio/video/automation installations.
These are all basic in nature and should be used
for guideline purposes only. Each application can
be augmented as needed for individual circum-
stances.
Zone/Sub-Zone Definitions
A zone is defined as an area within a system that
has independent source selection ability. A zone
may be one room, or several combined areas. A
sub-zone is a part of a zone - it shares source
selection - but is not independent. Typically, sub-
zones use volume controls for volume up/down.
Zone 1
Zone 2
Zone 3 Zone 4

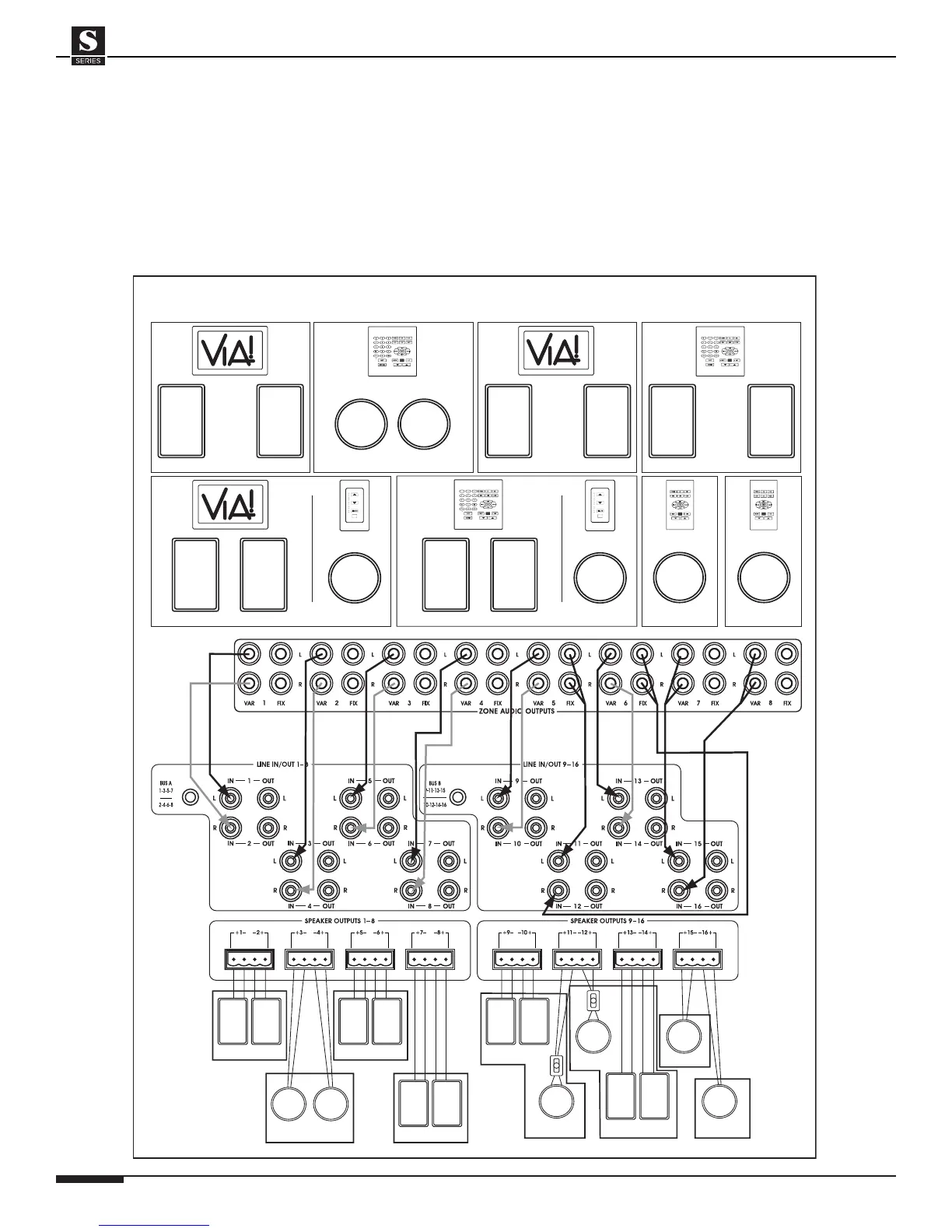

8-ZONE SYSTEM EXAMPLE
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 5
ZONE 6
ZONE 6
ZONE 7
ZONE 8
D1650
Zone 5 Zone 8Zone 7Zone 6
4 Stereo Zones, 2 Stereo Zones with Mono Sub-Zones, 2 Mono Zones. Total 16 amp channels used.
S12
T
M
T
M
T
M
