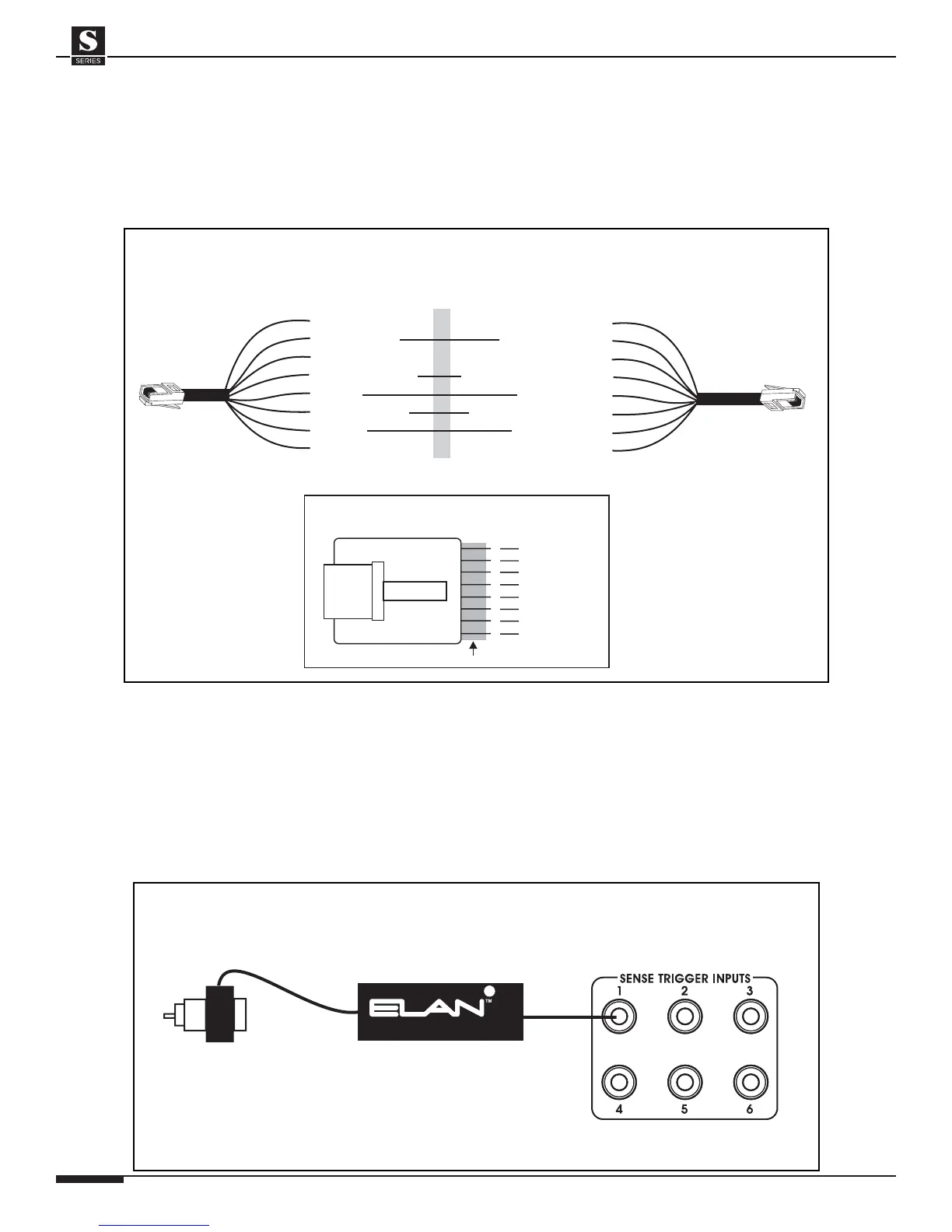

Connections When Not Using a PS12 (continued)
Keypad Connections
ELAN keypads require IR, RS-485+, RS-485-, 12 Volts DC, and Ground to function.
Make these connections as shown below. Multiple keypads in the same zone
require parallel connections. For simplicity, all pins can be connected straight
through.
ELAN
C45P
Butt splice
or equivalent
Blue
White/Blue
Orange
White/Orange
Green
White/Green
Brown
White/Brown
Blue
White/Blue (IR)
Orange
White/Orange (485+)
Green (485-)
White/Green (+12V)
Brown (GND)
White/Brown
ELAN
Keypad
BLUE
WHITE/BLUE
ORANGE
WHITE/ORANGE
GREEN
WHITE/GREEN
BROWN
WHITE/BROWN
1
2
3
4
5
6
7
8
PIN # COLOR CODE
FRONT
CABLE
Standard ELAN RJ-45 Pin-Out
TAB
S12 to Keypad Connections (No PS12)
ELAN
C45P
S12
S12
AUDIO SENSOR
ELAN™SENSE Sensor to S12 Sense Trigger Inputs
Sense Trigger Input Connections
Information from ELAN™SENSE Sensors connected
to the S12’s Sense Trigger Inputs is used to trigger
events that have been programmed into VIA!
®
Touch
panels.
To connect ELANSense sensors directly to the S12,
simply plug the 3.5 mm stereo interconnect cable of
the Sensor into the desired Sense Trigger Input.
If long runs are required, the 3.5 mm stereo intercon-
nect cable must be cut off and the cable extended
using Cat-5.
Utilize VIA!
®
Tools setup software to create IR or serial
command strings for automated functions. See
VIA!TOOLS Help for additional information about pro-
gramming Sense Triggers.
