ELAN HOME SYSTEMS
© ELAN Home Systems 2004 • All rights reserved.
Page 41
SYSTEM12
INST
ALLA
TION MANUAL
Audio Connections
(continued)
Zone Outputs
V
ariable Zone Output Connections
The S12 has both Fixed and V
ariable Zone Audio Outputs to increase system
flexibility
. V
ariable zones are controlled using IR or serial commands to ramp
volume up and down at preamp level.
ZONE 1
ZONE 2
ZONE 3
ZONE 4

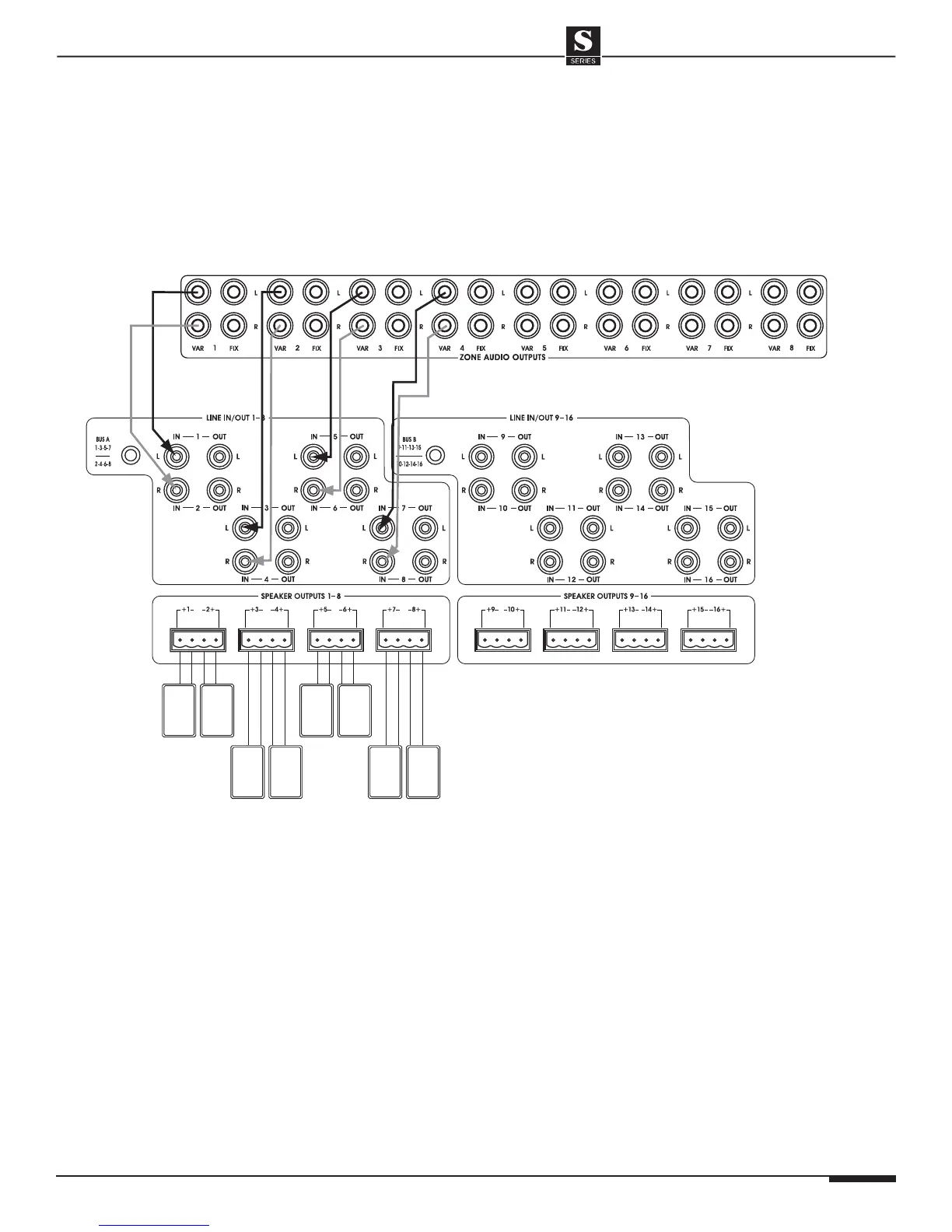

V
ariable Zone Audio Outputs (
Zones 1-4 Shown)
D1650
S12
42
44
Table of Contents
Safety Information
3
1 Introduction
5
The ELAN Story
5
Table of Contents
6
D1650 Companion Amplifier
8
Features
9
S12 Front Panel
10
Feature Definitions
11
Specifications
11
S12 Rear Panel
12
2 System Design & Applications
13
Pre-Wire
13
Applications
14
Overview-Zone/Sub-Zone Definitions
14
Stereo Zones
15
Stereo Zone W/Stereo Sub-Zone (Fixed)
16
Stereo Zone W/Stereo Sub-Zone (Fixed & Variable)
17
Stereo Zone W/Two Stereo Sub-Zones
18
Stereo Zone W/Mono Sub-Zone
19
Stereo Zone W/Two Mono Sub-Zones
20
3 Connections
21
PS12 Precision Panel
21
Front Panel
22
Ps12 Precision Panel
22
Rear Panel
22
PS12 Rear Panel Connections
23
VIA! Touch Panels
23
Important Note
24
Keypads/Ir Receivers
24
Local Source Inputs
25
External IR Input
26
Electronic Volume Controls/Pvse Precision Panel
27
Sense Trigger Inputs
28
PS12 Front Panel Connections
29
Zone Keypad Inputs/Local Source Inputs
29
VIA! Power/Via!Net Connections
30
Antenna Connections
31
Antennas/External IR Input
31
To Sense Inputs
32
S12 Connections When NOT Using a PS12 Precision Panel
33
VIA! Touch Panels
33
Keypads/Sense Trigger Inputs
34
Local Source/External IR Connections
35
Electronic Volume Control Connections
36
Z•600 Communications Controller Connections
37
PZ600 Precision Panel
37
PZ600 to S12 Connections
38
Z600 to S12 Audio Connections
39
Z•600 to S12 (no PZ600)
39
Additional S12 Connections
40
IR Connections
40
Trigger Output Connections
41
Unit Trigger/Zone Trigger Connections
41
Audio Connections
42
Source Input/Loop Output Connections
42
Zone Output Connections/Variable
43
Zone Output Connections/Fixed
44
Zone Output Connections/Fixed & Variable
45
Via!2
46
PV8 Video Precision Panel
47
Video Switching
47
Default Tracking Mode
48
16 Mode
49
Source-Select Tracking Mode
49
Composite Video Source Connections
50
Component Video Switching
51
Composite/Component Video Switching
52
Composite Video Zone Outputs
53
Video Output Connections
53
Component Video Zone Outputs
54
Composite/Component Videozone Outputs
54
Video Loop Outputs
55
S12 Expansion Kit (S12XK)
56
System Expansion
56
Ir/Rs-485/Rs-232
57
Multi-Chassis Connections
57
Communications Connections
58
Audio/Video Connections
59
4 Programming
60
Downloading VIA!TOOLS Projects
60
ELAN Keypad Dip Switch Setting
60
IR Commands
61
RS-232 Control
65
System Commands
66
5 Troubleshooting
77
Diagnostics Menu
77
Factory Default
78
Audio
79
Video
80
Triggers
80
IR Control
81
RS-232 Control
81
Communications
82
Multi-Chassis
82
Limited Warranty
84
