ELAN HOME SYSTEMS
SYSTEM12
INST
ALLA
TION MANUAL
Page 48
© ELAN Home Systems 2004 • All rights reserved.
Video Switching
(continued)

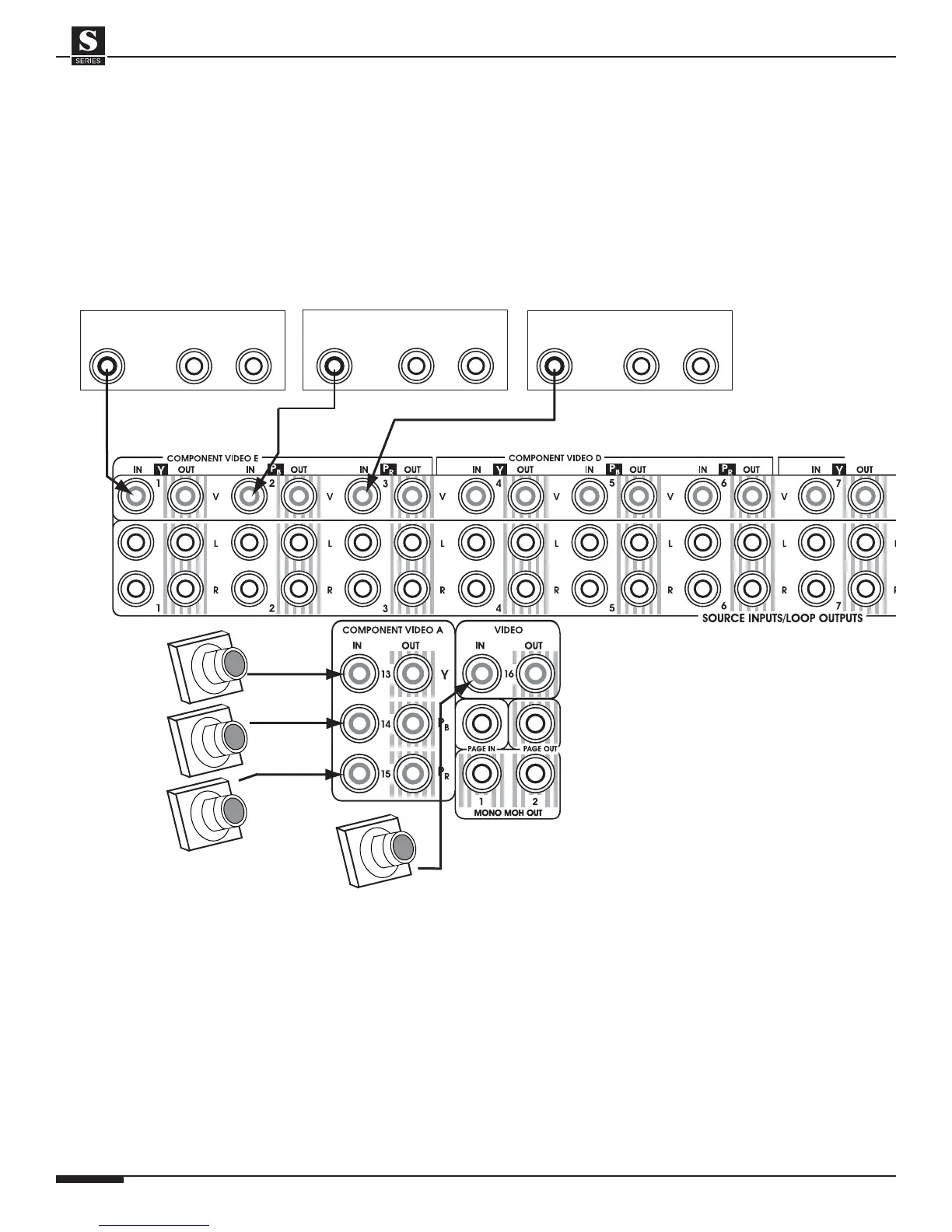

Composite Video Sour
ce Connections
Use high quality RCA video interconnect cables for most sour
ce connections.
Sources r
equiring long cable runs (CCTV cameras, for example) may require the
use of RG-6 or RG-59 coax with F-to-RCA adaptors.
Composite
Source
Composite
Source
Composite
Source
VIDEO
OUT
AUDIO OUT
LR
AUDIO OUT
LR
VIDEO
OUT
AUDIO OUT
LR
VIDEO
OUT
S12
CCTV
Cameras
Composite Video Source Connections
49
51
