ELAN HOME SYSTEMS
© ELAN Home Systems 2004 • All rights reserved. Page 23
PS12 Rear Panel Connections (continued)

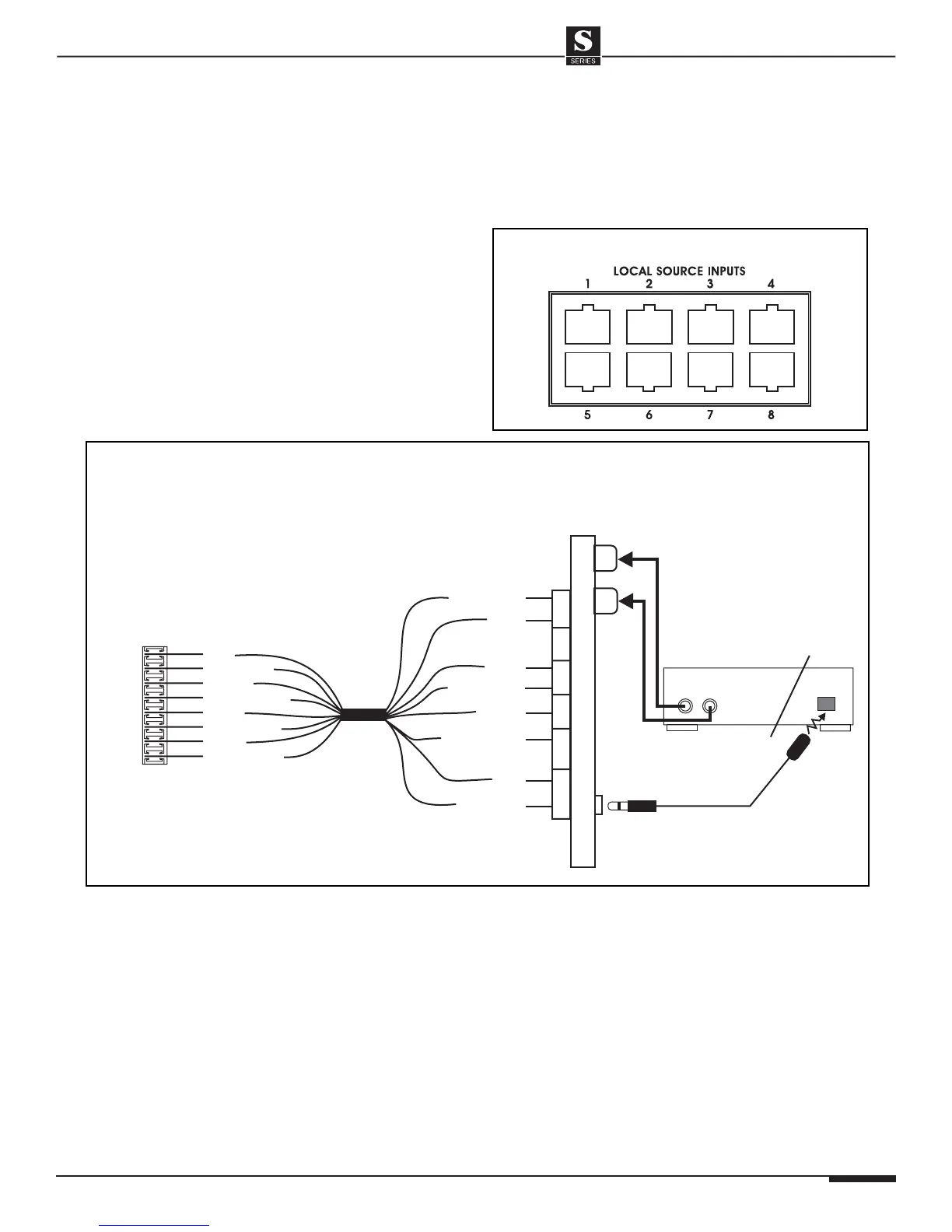

Local Source Input Connections
The S12 has provisions for one local or ‘private’ audio
source per zone. Designed for use with the
System12's eight Local Source Inputs, the LSWP
Local Source Wall Plate Kit sends audio from any
local source (i.e. a CD player in the Master Bedroom)
back down to the S12, and IR control signals from the
S12 back to the local source.
Audio and IR are transmitted over a single run of
Cat-5 cable to the Local Source RJ-45 jacks on the
S12. Balanced differential line drivers ensure noise-
free audio from sources located up to 300 feet from
the S12. An IR OUT jack on the wall plate allows
connection of an IR emitter (included) for control of
the source from that zone's keypad or touch panel.
Up to eight LSWPs, one for each zone, can be
connected to a PS12. Systems with more than
one S12 (and you can link up to four of them!)
can accommodate eight LSWPs per S12.
