ELAN HOME SYSTEMS
SYSTEM12 INSTALLATION MANUAL
Page 36 © ELAN Home Systems 2004 • All rights reserved.
Z•600 Communications Controller Connections (continued)
PZ600 Precision Panel To S12 Connections
When using a Z•600 Communications Controller with the S12, ELAN recommends
a PZ600 Precision Panel. Relevant connections are the PAGE/DB OUT, DB1, and
DB2. Use a 3.5mm stereo interconnect cable to make this connection as follows:
• If using the VIA!
®
Touch Panel ‘Wake w/ Doorbell’ feature, connect DB1 to
Sense Input 1, and DB2 to Sense Input 2 of the S12. VIA!
®
Tools setup software
will allow differentiation of the two doorbell triggers and allow the VIA! Touch
Panels to display different cameras when different doorbells are activated.
• In any circumstance where independent door camera viewing is not required,
connect a 3.5mm stereo interconnect cable from the PAGE/DB OUT of the
PZ600 to the PAGE TRIGGER IN of the S12.
PAGE/DB
OUT
PZ600
S12
3.5mm stereo
interconnect cable

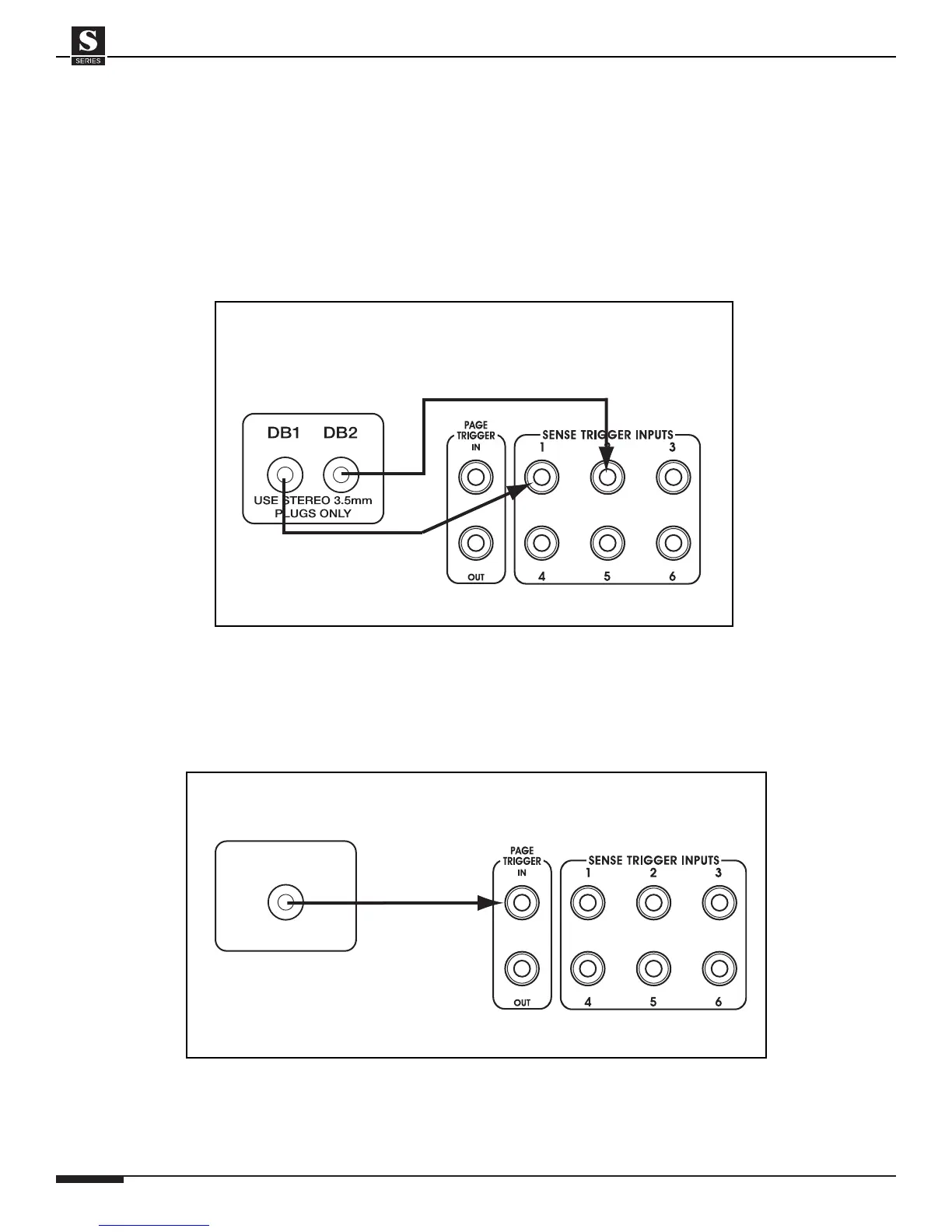

PZ600 to S12 Doorbell Connections (Single Page/DB Trigger)
PZ600
S12
PZ600 to S12 Doorbell Connections
(Independent DB1 and DB2 triggering)
3.5 mm stereo
interconnect cable
3.5mm stereo
interconnect cable
