Video Switching (continued)
Loop Output Connections
There is a corresponding Video Loop Output for each video input and because
these are buffered outputs, there is no degradation of signal. Both Composite and
Component video outputs can be looped. There are two primary applications for
the Loop Outputs; sharing video sources with another system (such as a Home
Theater), or multi-chassis S12 systems. The drawings below illustrate both
examples.
YPP
B
R
Y
PP
B
R
Component
Source
Composite
Source
A/V Receiver
Component Input
A/V Receiver
Composite Input
Video
Video
V

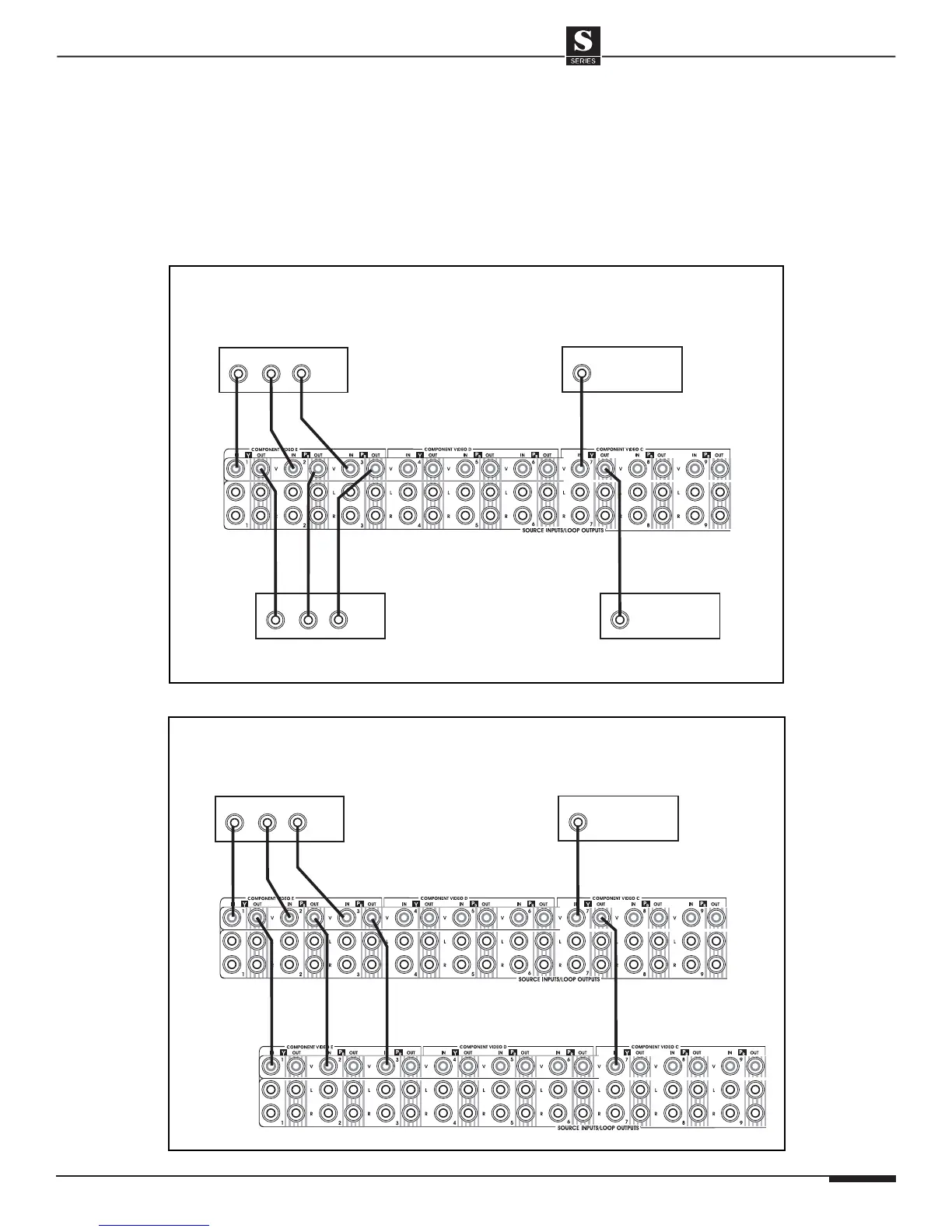

ideo Loop Outputs (Shared Sources)
S12
S12 #2
YPP
B
R
Component
Source
Composite
Source
Video
V
ideo Loop Outputs (Multiple S12 Chassis)
S12 #1
