© ELAN Home Systems 2004 • All rights reserved. Page 39
Additional S12 Connections (continued)

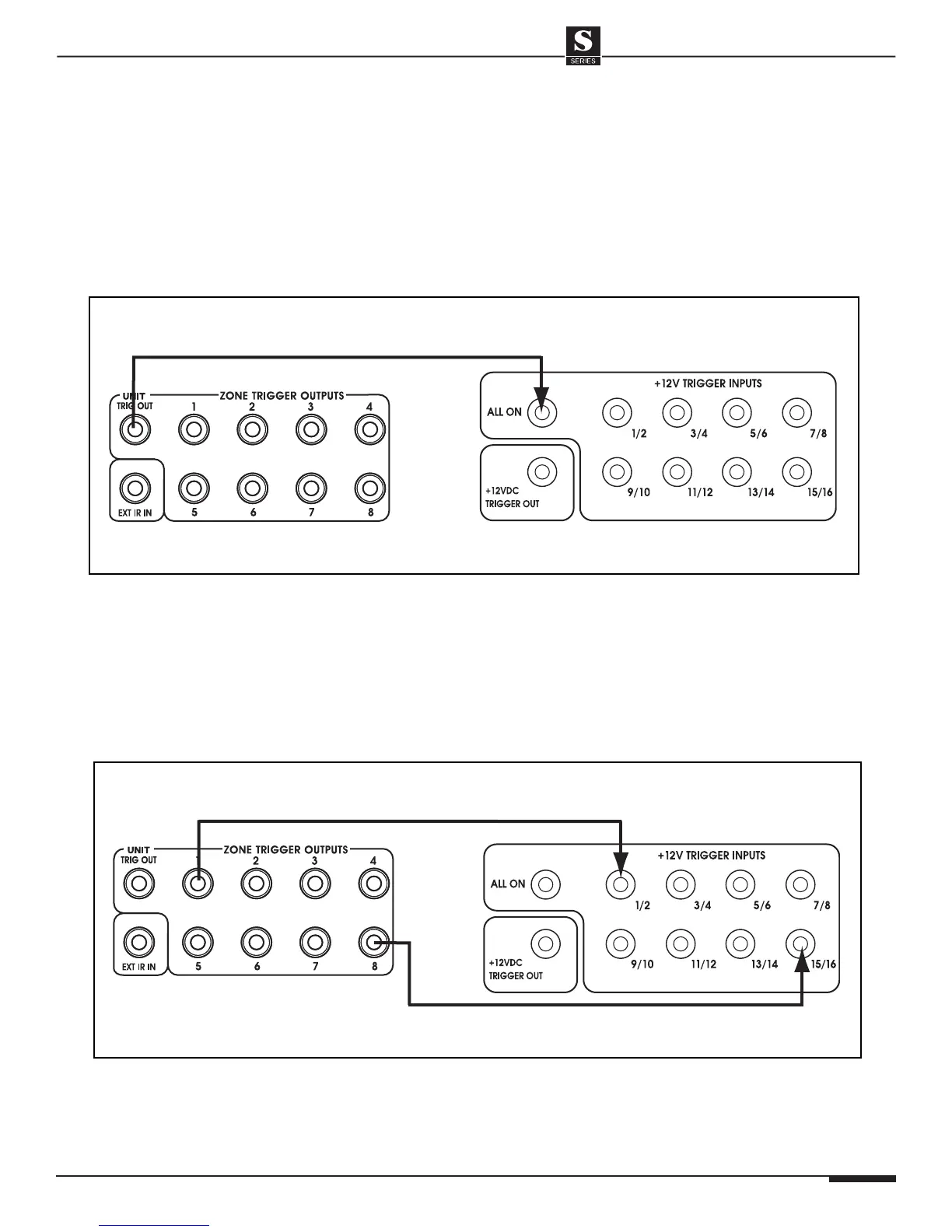

Trigger Output Connections
Unit Trigger Output Connections
The Unit Trigger Output sends a 12VDC Trigger whenever any zone of the S12 is
turned on. Use this trigger for system-wide functions such as un-muting a D1650
amplifier or turning on a Z•Power Controller.
Please note: the Unit Trigger Output is chassis-specific. If any zone of a
chassis is active, that chassis’ Unit Trigger Output is active.
S12
D1650
3.5mm mono
interconnect
cable
S12 Unit Trigger Output to D1650 All On Input
Zone Trigger Output Connections
There are 8 zone-specific Trigger outputs on the S12. Use these when zone-
specific functions are desired. For example, use the Zone Trigger Outputs to
mute/un-mute specific channels on a D1200 or D1650 amplifier.
S12
D1650
3.5mm mono
interconnect
cable
S12 Zone Trigger Outputs to D1650 Zone Trigger Inputs (Zones 1 & 8 Shown)
3.5 mm mono
interconnect cable
SYSTEM12 INSTALLATION MANUAL
